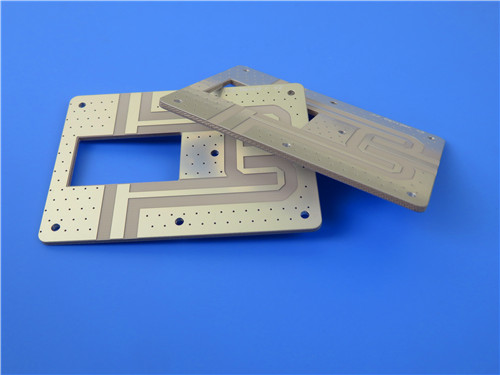

RF-10 PCB 2-layer 60mil 1.524mm High DK Taconic Substrate Immersion Tin Bare Board

RF-10 PCB 2-layer 60mil 1.524mm High DK Taconic Substrate Immersion Tin Bare Board

In the ever-evolving landscape of electronics, the need for cutting-edge materials to enhance RF performance has never been more critical. Enter the RF-10 PCB, a marvel of engineering that represents a leap forward in RF circuit design and functionality. This comprehensive product description sheds light on the intricacies of the RF-10 High DK PCB, from its construction details to its applications and benefits, ensuring that you are well-informed about this PCB.

RF-10 PCB Construction Details

The Taconic RF-10 PCB boasts a meticulous construction that underpins its exceptional performance characteristics. Crafted from RF-10 base material, this 2-layer rigid PCB adheres to the following specifications:

RF-10 PCB Stackup

RF-10 PCB Statistics

The RF-10 60mil PCB offers versatility and scalability for diverse applications.

RF-10 Introduction and Advantages

RF-10 copper clad laminates represent a fusion of ceramic-filled PTFE and woven fiberglass, offering a unique blend of high dielectric constant and low dissipation factor. Engineered for RF applications, RF-10 prioritizes size reduction while ensuring ease of handling and improved dimensional stability. This composite material bonds effectively to smooth copper surfaces, optimizing insertion losses at higher frequencies.

Key Features of RF-10 PCB

- Dielectric Constant: With a value of 10.2±0.3 at 10GHz, RF-10 enables RF circuit miniaturization without compromising performance.

- Dissipation Factor:The impressively low 0.0025 at 10GHz ensures minimal signal loss, enhancing signal integrity.

- Thermal Conductivity: A high thermal conductivity of 0.85 W/mk (Unclad) promotes superior thermal management, crucial for high-performance RF applications.

- CTE and Moisture Absorption: Low moisture absorption (0.08%) and controlled CTE values ensure exceptional dimensional stability under varying conditions.

- Flammability Rating: Possessing a V-0 flammability rating, RF-10 prioritizes safety without sacrificing functionality.

Benefits of RF-10 PCB

- RF Circuit Optimization:The high dielectric constant of RF-10 facilitates RF circuit miniaturization, offering novel design possibilities.

- Dimensional Stability: Exceptional dimensional stability ensures reliable performance across diverse environmental conditions.

- Thermal Management: High thermal conductivity enhances heat dissipation, crucial for maintaining optimal performance.

- Adhesion and Expansion Control: Superior adhesion to copper and low expansion coefficients establish RF-10 as a reliable and durable substrate.

- Price/Performance Ratio: RF-10 strikes a balance between performance and cost-effectiveness, ensuring value for the discerning user.

Applications of RF-10 PCB

The versatility of RF-10 Taconic PCB Frequency 1.524mm PCB makes it ideal for a range of applications, including:

- Microstrip Patch Antennas

- GPS Antennas

- Passive Components (filters, couplers, power dividers)

- Aircraft Collision Avoidance Systems

- Satellite Components

Conclusion

In conclusion, the RF-10 high frequency PCB stands as a testament to innovation in RF technology, offering unparalleled performance, reliability, and adaptability. With its advanced features, benefits, and diverse applications, the RF-10 Taconic RF PCB Circuit Board is poised to redefine RF circuit design and elevate electronic systems to new heights of efficiency and functionality. Experience the power of RF-10TaconicPCB and unlock a world of possibilities in RF engineering and design.
