6-Layer Hybrid PCB 10mil RO4350B and S1000-2M Materials 1.5mm Thick with Blind Vias ENIG

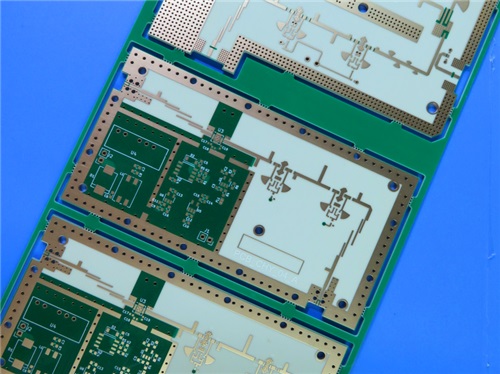

1. Introduction
In the demanding world of high-frequency RF, aerospace, and millimeter-wave applications, the 6-layer hybrid PCB combining RO4350B and S1000-2M materials stands out as a high-performance, cost-effective solution. Designed for superior signal integrity, thermal stability, and manufacturability, this hybrid circuit materials PCB is ideal for radar systems, 5G antennas, satellite communications, and defense electronics.
With a 1.5mm finished thickness, 4/4 mil trace/space capability, and controlled 50Ωimpedance, this hybrid board ensures low loss, high power handling, and excellent plated through-hole (PTH) reliability. The hybrid stackup (RO4350B + S1000-2M) balances RF performance with mechanical robustness, making it a top choice for mission-critical applications.
2. PCB Construction & Technical Specifications
Hybrid 6-Layer RO4350B S1000-2M PCB Specifications (RO4350B + S1000-2M)
|
Parameter
|
Specification
|
|
PCB Type
|
Hybrid 6-Layer (RO4350B + S1000-2M)
|
|
Dimensions
|
76.5mm × 83mm (±0.15mm)
|
|
Thickness
|
1.5mm
|
|
Materials
|
RO4350B (RF) + S1000-2M (Mechanical)
|
|
Min Trace/Space
|
4/4 mils
|
|
Min Hole Size
|
0.3mm
|
|
Vias
|
Blind (L1-L2) + Through-hole
|
|
Copper Weight
|
1oz (35μm) all layers
|
|
Surface Finish
|
ENIG
|
|
Solder Mask
|
Blue (Top/Bottom)
|
|
Silkscreen
|
White (Top/Bottom)
|
|
Impedance Control
|
50Ω (Top layer, 4mil trace)
|
|
Testing
|
100% Electrical Test
|
|
Standard
|
IPC-Class-2
|
Quality Standard: IPC-Class-2 (Reliable for commercial & industrial applications)
Artwork Format: Gerber RS-274-X (Industry-standard for PCB fabrication)
3. PCB Stackup & Material Benefits
3.1 6-Layer Hybrid Stackup
|
Layer
|
Material
|
Thickness
|
Key Properties
|
|
Layer 1 (Top)
|
1 oz Cu (35 μm)
|
Signal Layer
|
ENIG finish, 50Ω impedance
|
|
Core 1
|
RO4350B
|
0.254 mm (10 mil)
|
Low loss (Dk=3.48, Df=0.0037)
|
|
Layer 2
|
1 oz Cu (35 μm)
|
Ground/Power
|
Blind vias (L1-L2)
|
|
Prepreg
|
1080 X2 (RC 63%)
|
0.127 mm (5 mil)
|
Bonding layer
|
|
Layer 3
|
1 oz Cu (35 μm)
|
Signal Layer
|
|
|
Core 2
|
S1000-2M
|
0.254 mm (10 mil)
|
High Tg (180°C), low CTE
|
|
Layer 4
|
1 oz Cu (35 μm)
|
Ground/Power
|
|
|
Prepreg
|
1080 X2 (RC 63%)
|
0.127 mm (5 mil)
|
Bonding layer
|
|
Layer 5
|
1 oz Cu (35 μm)
|
Signal Layer
|
|
|
Core 3
|
RO4350B
|
0.254 mm (10 mil)
|
Low loss, high thermal stability
|
|
Layer 6 (Bottom)
|
1 oz Cu (35 μm)
|
Signal Layer
|
ENIG finish
|
3.2 Why This Hybrid Stackup?
✔RO4350B (Top/Bottom Layers)–Ensures low-loss signal propagation for RF circuits.
✔S1000-2M (Middle Layer)–Provides mechanical strength, thermal resistance, and PTH reliability.
✔Optimized Prepreg (1080 X2)–Ensures strong interlayer bonding & impedance control.
3.3 PCB Statistic
|
Category
|
Quantity
|
|
Components
|
149
|
|
Total Pads
|
215
|
|
- Thru Hole Pads
|
57
|
|
- Top SMT Pads
|
38
|
|
- Bottom SMT Pads
|
120
|
|
Vias
|
79
|
|
Nets
|
6
|
4. Material Properties & Advantages
4.1 RO4350B–High-Frequency Performance
|
Property
|
Value
|
Advantage
|
|
Dielectric Constant (Dk)
|
3.48 ±0.05 @ 10 GHz
|
Stable signal propagation
|
|
Dissipation Factor (Df)
|
0.0037 @ 10 GHz
|
Ultra-low insertion loss
|
|
Thermal Conductivity
|
0.69 W/m/°K
|
Improved heat dissipation
|
|
CTE (X/Y/Z)
|
10/12/32 ppm/°C
|
Matches copper, prevents delamination
|
|
Tg
|
>280°C
|
Withstands high-temp assembly
|
|
Moisture Absorption
|
0.06%
|
Reliable in humid conditions
|
4.2 S1000-2M–Mechanical Robustness
|
Property
|
Value
|
Advantage
|
|
Tg (Glass Transition)
|
180°C (DSC)
|
Lead-free compatible
|
|
Z-Axis CTE
|
Lower than standard FR4
|
Better PTH reliability
|
|
Anti-CAF Performance
|
Excellent
|
Prevents conductive anodic filaments
|
|
UV Blocking
|
AOI compatible
|
Eases inspection
|
|
Moisture Absorption
|
Low
|
High reliability
|
5. Applications of This Hybrid PCB
This Hybrid PCB Board is optimized for high-frequency, high-reliability applications, including:
✅5G & mmWave Antennas (Beamforming, MIMO arrays)
✅Radar & Defense Systems (Phased array radar, missile guidance)
✅Satellite Communications (SATCOM)
✅Aerospace Avionics
✅Point-to-Point Radio Links
✅High-Speed Digital RF Modules
6. Why Choose This PCB?
6.1 Performance Advantages
✔ Hybrid Material Optimization–Combines RF performance (Rogers4350B) with mechanical strength (S1000-2M).
✔Controlled Impedance (50Ω)–Critical for high-frequency signal integrity.
✔Blind Vias (L1-L2)–Enables high-density interconnects.
✔ENIG Surface Finish–Ensures long-term solderability & corrosion resistance.
7. Conclusion
The 6-layer Hybrid PCB Material PCB (RO4350B +ShengyiS1000-2M, 1.5mm thick) is a high-performance, cost-effective solution for RF, microwave, and aerospace applications. With low-loss signal transmission, excellent thermal stability, and robust mechanical properties, it is ideal for 5G, radar, satellite, and defense systems.
