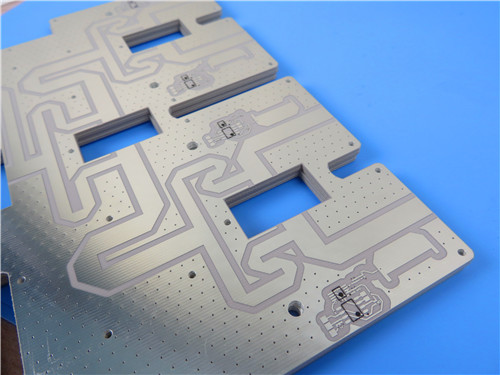

Taconic RF-30 laminate PCB 2-layer 40mil 1.016 mm Immersion tin High Frequency Circuit Board

Taconic RF-30 laminate PCB 2-layer 40mil 1.016 mm Immersion tin High Frequency Circuit Board

In the rapidly evolving world of wireless communication, high-frequency PCBs play a crucial role in ensuring signal integrity, thermal stability, and long-term reliability. The RF-30 PCB (40mil thickness) is a cutting-edge 2-layer rigid printed circuit board designed for microwave and RF antenna applications, offering an optimal balance of performance, durability, and cost-effectiveness.

Manufactured to exacting IPC-Class-2 standards and backed by comprehensive electrical testing, this Taconic RF-30 PCB delivers consistent, reliable performance in even the most challenging environments. The use of advanced RF-30 laminate material ensures superior signal integrity while maintaining cost-effectiveness–a critical advantage for volume production.

PCB Construction Details

PCB Stackup

PCB Statistics

Artwork and Quality Assurance

Type of Artwork: Supplied with Gerber RS-274-X for precise circuit specifications

Quality Standard: Maintains IPC-Class-2 standards, ensuring reliability

Availability: Globally accessible to cater to diverse market needs

Introducing RF-30 Low-Cost Antenna Laminate

Step into the future with RF-30 Taconic Substrate PCB, an innovative organic ceramic laminate boasting a unique fusion of woven glass reinforced fluoropolymer chemistry and ceramic enhancements. Specially crafted to cater to the exacting requirements of microwave and radio frequency antenna applications,RF-30 Taconic RF Laminates sets new benchmarks in performance, efficiency, and cost-effectiveness.

Features

1.DK: Delivers a reliable DK of 3.0 +/- 0.05 at 1.9 GHz/23°C for consistent performance

2.Dissipation Factor: Impressive 0.0014 at 1.9 GHz/23°C ensures minimal energy loss

3.CTE: Demonstrates a low CTE in X-axis of 11 ppm/°C, Y-axis of 21 ppm/°C, and Z-axis of 125 ppm/°C for stability

4.Moisture Absorption: Minimal moisture absorption at 0.02% for sustained performance

5.Dielectric Breakdown: Surpasses expectations with a dielectric breakdown exceeding 60kV

6.Volume Resistivity: Offers a high volume resistivity at 1.26 x 10^9 Mohm-cm for reliable insulation

7.Flammability Rating: Achieves the highest grade with a UL-94V0 flammability rating

Benefits

-Low Cost: Redefines affordability without compromising on quality

-Excellent Peel Strength:Ensures strong bonds even in high-temperature environments

-Exceptionally Low Dissipation Factor: Minimizes energy loss for unmatched efficiency

-Excellent Intermodulation Performance: Promotes clarity and precision in RF applications

-Low Moisture Absorption: Guarantees consistent performance across environments

-Enhanced Surface Smoothness: Facilitates seamless signal propagation and reduces interference

Typical Applications

- Antenna and subcomponent

- RF passive components

- Power Amplifier

Conclusion

The RF-30 Taconic PCB Materials (40mil) is a high-reliability, cost-effective solution for RF and microwave applications. With its low-loss laminate, precise manufacturing tolerances, and excellent thermal properties, it is an ideal choice for antenna systems, power amplifiers, and wireless communication devices.

For engineers and procurement teams seeking a balance of performance, durability, and affordability, this RF-30 40mil PCB delivers exceptional value in high-frequency applications.

Contact us today for pricing, lead times, and custom configurations!
