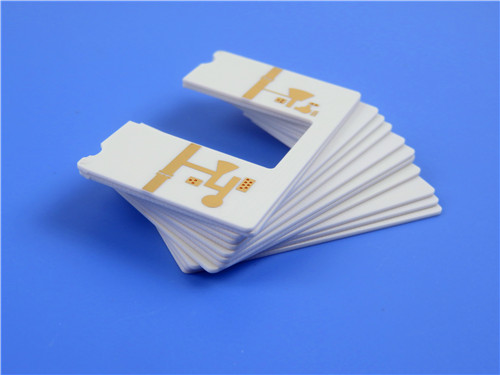

RO4003C PCB Rogers 4003C Double-sided 60mil 1.524mm ENIG Bare Board

RO4003C PCB Rogers 4003C Double-sided 60mil1.524mm ENIG Bare Board

Introduction

The cutting-edge RO4003C PCB represents a pinnacle in high-performance circuit board technology. Crafted with precision and integrity, this double-sided marvel of engineering offers unparalleled quality and reliability for a diverse range of electronic applications.Let’s delve into the intricate details and comprehensive features of the Rogers 4003C PCB, underscoring its exceptional attributes that make it an ideal choice for demanding electronic designs.

PCB Construction Details

PCB Stackup

PCB Statistics

Quality Assurance

Committed to excellence, the 60mil RO4003C PCB undergoes rigorous quality testing, including a 100% electrical test prior to shipment.

Adhering to the IPC-Class-2 standard, this PCB exemplifies reliability and performance consistency, meeting the highest industry benchmarks for quality and functionality.

 Available worldwide, this RO4003C Substrate PCB stands as a beacon of excellence for electronic applications across the globe.

Introduction of RO4003C Material

The RO4003C laminate material represents a breakthrough in circuit board technology, offering a harmonious blend of electrical performance and manufacturing convenience. Infused with woven glass reinforced hydrocarbon/ceramics, Rogers RO4003C PCB provide superior dielectric control and low loss characteristics, rivaling the performance of PTFE-based microwave materials at a fraction of the cost. With a focus on dimensional stability and reliable plated through-holes, this material is tailored for high-demand applications requiring precision and resilience.

Features Highlight

• Dielectric Constant: DK 3.38 +/- 0.05 at 10GHz
• Dissipation Factor: 0.0027 at 10GHz, 0.0021 at 2.5GHz
• Thermal Conductivity: 0.71 W/m/°K
• Thermal Coefficient of Expansion (CTE): X-axis 11ppm/°C, Y-axis 14ppm/°C, Z-axis 46ppm/°C
• Low Moisture Absorption: 0.06%

Key Benefits

The Rogers RO4003C High Frequency PCB offers a multitude of advantages for circuit designers and manufacturers, including:

• -Ideal for multi-layer board constructions
• -Lower fabrication costs compared to traditional materials
• -Tailored for high-volume applications that demand peak performance
• -Competitively priced for cost-effectiveness and value

Typical Applications

The versatility and reliability of the RO4003C 1.524mm substrate PCB make it a preferred choice for a variety of cutting-edge applications, including:

• -Cellular base station antennas and power amplifiers
• -RF identification tags
• -Automotive radar and sensors
• -LNBs for direct broadcast satellites

Conclusion

In conclusion, the RO4003C 60mil PCB stands as a pinnacle of innovation and excellence in the realm of high-performance circuit board technology. With its advanced features, robust construction, and versatile applications, this Rogers PCB sets a new standard for quality and reliability in the electronics industry. As a senior sales manager, I am proud to present the RO4003C PCB as a premier choice for demanding electronic designs that require nothing but the best.
