RO4350B PCB Rogers 4350B 2-layer 6.6mil ENIG Green Solder Mask White Legend

RO4350B 6.6 mil PCB is a high-performance, cost-effective solution for RF, microwave, and high-speed digital applications.

  • Item NO.:

    BIC-352-v424.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


RO4350B PCB Rogers 4350B 2-layer 6.6mil ENIG Green Solder Mask White Legend



In the rapidly evolving world of high-frequency and RF/microwave electronics, selecting the right printed circuit board (PCB) material is critical to ensuring optimal performance, reliability, and cost-efficiency. Our newly shipped RO4350B PCB (6.6mil thickness, double-sided) is engineered to meet the stringent demands of high-frequency applications while maintaining excellent manufacturability and dimensional stability.



In this comprehensive product description, we will explore the construction, material benefits, key features, applications, and quality assurance of this high-performance PCB.



PCB Construction Details

The Rogers 4350B PCB 6.6mil boasts a meticulous construction, setting the stage for unparalleled performance.



Parameter

Value

Base Material

RO4350B

Layer Count

Double Sided

Board Dimensions

40.8 mm x 51.6 mm = 1PCS, +/- 0.15mm

Minimum Trace/Space

4/4 mils

Minimum Hole Size

0.2mm

Blind Vias

No

Finished Board Thickness

0.29mm

Finished Cu Weight

1oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Gold(ENIG)

Top Silkscreen

White

Bottom Silkscreen

No

Top Solder Mask

Green

Bottom Solder Mask

No

Electrical Test

100% used prior to shipment





PCB Stackup

Layer

Material

Thickness

Top Layer

Copper (1 oz)

35 µm (1.4 mils)

Core

Rogers RO4350B

0.168 mm (6.6 mils)

Bottom Layer

Copper (1 oz)

35 µm (1.4 mils)





PCB Statistics

Category

Count

Components

2

Total Pads

13

Thru Hole Pads

9

Top SMT Pads

4

Bottom SMT Pads

0

Vias

7

Nets

2



Introduction of RO4350B

The core material, Rogers RO4350B, sets a new standard for performance and reliability. Featuring a blend of woven glass reinforced hydrocarbon/ceramics, this material offers superior electrical properties akin to PTFE/woven glass, coupled with the manufacturability of epoxy/glass. With a tight control on dielectric constant (Dk), low loss characteristics, and cost-effectiveness, RO4350B laminates deliver exceptional performance without the need for specialized treatments.

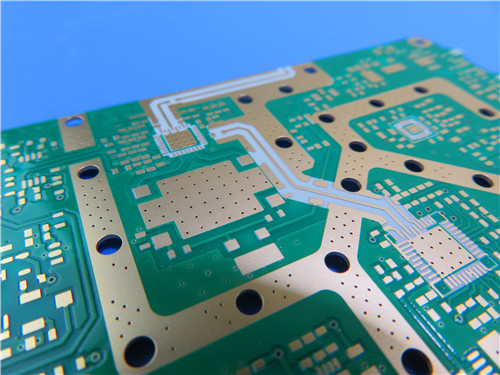

RO4350B PCB 2-layer 6.6mil ENIG


Features of RO4350B


  • -Dielectric Constant (DK): 3.48 +/-0.05 at 10GHz/23°C
  • -Dissipation Factor: 0.0037 at 10GHz/23°C
  • -Thermal Conductivity: 0.69 W/m/°K
  • -CTE: X axis of 10 ppm/°C, Y axis of 12 ppm/°C, Z axis of 32 ppm/°C
  • -High Tg Value: >280 °C
  • -Low Water Absorption: 0.06%




Benefits

The RO4350B material PCB 6.6mil offers a myriad of benefits that set it apart in the realm of PCB technology:




  • -Ideal for MLB Constructions:Perfect for multi-layer board assemblies, ensuring seamless integration.
  • -Cost-Effective Processing:Competes with FR-4 processes at a lower fabrication cost, enhancing affordability.
  • -Dimensional Stability: Maintains structural integrity with excellent dimensional stability for consistent performance.
  • -Competitive Pricing:Offers high-quality features at a competitive price point, delivering exceptional value to customers.




Applications

The versatility of the Rogers 4350B substrate PCB 6.6mil makes it well-suited for various applications, including:



-Cellular Base Station Antennas and Power Amplifiers

-RF Identification Tags

-Automotive Radar and Sensors

-LNB's for Direct Broadcast Satellites



Conclusion

Our RO4350B 6.6 mil PCB is a high-performance, cost-effective solution for RF, microwave, and high-speed digital applications. With low insertion loss, excellent thermal stability, and easy manufacturability, it is an ideal choice for engineers designing next-generation wireless, automotive, and aerospace systems.



Order today and experience superior signal integrity with RO4350B Frequency PCB technology!
