Rogers 5880 PCBRT/duroid 588020mil Substrate High Frequency Board Supplier

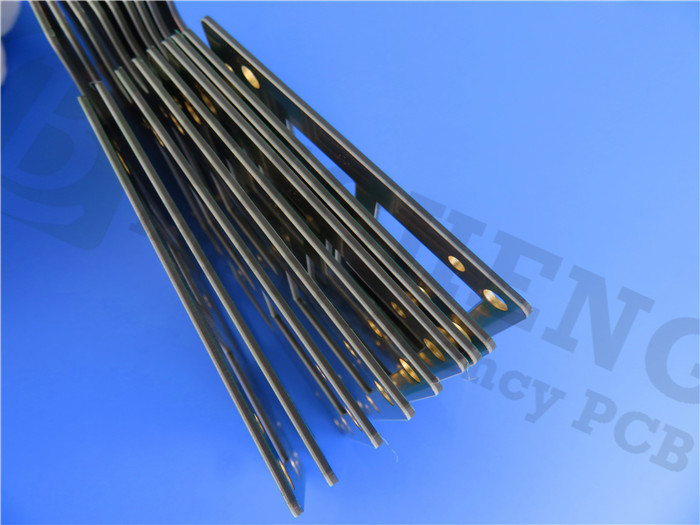

We are thrilled to present our newly shipped PCB, the RT/duroid 5880. Crafted with precision and designed to meet the demands of high-frequency circuit applications, this Rogers PCB offers exceptional performance and reliability. Let's delve into the key features and benefits of this remarkable product.
PCB Substrates:
The RT/duroid 5880 PCB utilizes the renownedRogers 5880 substrate, which guarantees superior electrical properties. With a process DK of 2.2 +/- 0.02 at 10 GHz/23°C and a dissipation factor of 0.0009 at 10 GHz/23°C, this PCB delivers unmatched electrical performance. It boasts a thermal coefficient of dielectric constant of -125 ppm/°C, ensuring consistent and reliable operation from -40℃ to +85℃. Additionally, its Td> 500°C and moisture absorption of 0.02% make it ideal for high-temperature and high-moisture environments.
Benefits:
1.Lowest electrical loss: The reinforced PTFE material used in the RT/duroid 5880 PCB minimizes electrical loss, making it a preferred choice for high-frequency applications.
2.Ease of customization:This PCB can be easily cut, shaped, and machined to meet specific design requirements.
3.Chemical resistance: It resists solvents and reagents used in etching or plating processes, ensuring durability and longevity.
4.Moisture resistance: The RT/duroid 5880 PCB performs exceptionally well in high-moisture environments, making it suitable for a wide range of applications.
5.Stripline and microstrip compatibility: Designed for stripline and microstrip circuit applications, it provides excellent signal integrity and transmission characteristics.
6.Uniform electrical properties: The PCB offers consistent electrical properties over a wide frequency range, enabling reliable performance in various high-frequency applications.
Stackup: 2-layer rigid PCB
The RT/duroid 5880 20mil PCB comes in a 2-layer rigid configuration, featuring a copper layer of 35 μm on both sides. The Rogers Core RT/duroid 5880 has a thickness of 0.508 mm (20mil), ensuring robustness and stability.
RT/duroid 5880 PCB Typical Values:
|
RT/duroid 5880 Typical Value
|
|
Property
|
RT/duroid 5880
|
Direction
|
Units
|
Condition
|
Test Method
|
|
Dielectric Constant,εProcess
|
2.20
2.20±0.02 spec.
|
Z
|
N/A
|
C24/23/50
C24/23/50
|
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
|
|
Dielectric Constant,εDesign
|
2.2
|
Z
|
N/A
|
8GHz to 40 GHz
|
Differential Phase Length Method
|
|
Dissipation Factor,tanδ
|
0.0004
0.0009
|
Z
|
N/A
|
C24/23/50
C24/23/50
|
1 MHz IPC-TM-650 2.5.5.3
10 GHz IPC-TM 2.5.5.5
|
|
Thermal Coefficient of ε
|
-125
|
Z
|
ppm/℃
|
-50℃to 150℃
|
IPC-TM-650 2.5.5.5
|
|
Volume Resistivity
|
2 x 107
|
Z
|
Mohm cm
|
C/96/35/90
|
ASTM D 257
|
|
Surface Resistivity
|
3 x 107
|
Z
|
Mohm
|
C/96/35/90
|
ASTM D 257
|
|
Specific Heat
|
0.96(0.23）
|
N/A
|
j/g/k
(cal/g/c)
|
N/A
|
Calculated
|
|
Tensile Modulus
|
Test at 23℃
|
Test at 100℃
|
N/A
|
MPa(kpsi)
|
A
|
ASTM D 638
|
|
1070(156)
|
450(65)
|
X
|
|
860(125)
|
380(55)
|
Y
|
|
Ultimate Stress
|
29(4.2)
|
20(2.9)
|
X
|
|
27(3.9）
|
18(2.6)
|
Y
|
|
Ultimate Strain
|
6
|
7.2
|
X
|
%
|
|
4.9
|
5.8
|
Y
|
|
Compressive Modulus
|
710(103)
|
500(73)
|
X
|
MPa(kpsi)
|
A
|
ASTM D 695
|
|
710(103)
|
500(73)
|
Y
|
|
940(136)
|
670(97)
|
Z
|
|
Ultimate Stress
|
27(3.9)
|
22(3.2)
|
X
|
|
29(5.3)
|
21(3.1)
|
Y
|
|
52(7.5)
|
43(6.3)
|
Z
|
|
Ultimate Strain
|
8.5
|
8.4
|
X
|
%
|
|
7.7
|
7.8
|
Y
|
|
12.5
|
17.6
|
Z
|
|
Moisture Absorption
|
0.02
|
N/A
|
%
|
0.62"(1.6mm) D48/50
|
ASTM D 570
|
|
Thermal Conductivity
|
0.2
|
Z
|
W/m/k
|
80℃
|
ASTM C 518
|
|
Coefficient of Thermal Expansion
|
31
48
237
|
X
Y
Z
|
ppm/℃
|
0-100℃
|
IPC-TM-650 2.4.41
|
|
Td
|
500
|
N/A
|
℃ TGA
|
N/A
|
ASTM D 3850
|
|
Density
|
2.2
|
N/A
|
gm/cm3
|
N/A
|
ASTM D 792
|
|
Copper Peel
|
31.2(5.5)
|
N/A
|
Pli(N/mm)
|
1oz(35mm)EDC foil
after solder float
|
IPC-TM-650 2.4.8
|
|
Flammability
|
V-0
|
N/A
|
N/A
|
N/A
|
UL 94
|
|
Lead-free Process Compatible
|
Yes
|
N/A
|
N/A
|
N/A
|
N/A
|
Construction details:
|
Construction Details
|
Value
|
|
Board dimensions
|
60.76mm x 79.8mm
|
|
Quantity
|
1
|
|
Dimensional Tolerance
|
+/- 0.15mm
|
|
Minimum Trace/Space
|
4/6 mils
|
|
Minimum Hole Size
|
0.3mm
|
|
Blind vias
|
No
|
|
Finished board thickness
|
0.6mm
|
|
Finished Cu weight
|
1oz (1.4 mils) outer layers
|
|
Via plating thickness
|
20 μm
|
|
Surface finish
|
Bare copper
|
|
Top Silkscreen
|
No
|
|
Bottom Silkscreen
|
No
|
|
Top Solder Mask
|
No
|
|
Bottom Solder Mask
|
No
|
|
Electrical test
|
100% prior to shipment
|
PCB Statistics:
|
PCB Statistics
|
Value
|
|
Components
|
11
|
|
Total Pads
|
30
|
|
Thru Hole Pads
|
6
|
|
Top SMT Pads
|
24
|
|
Bottom SMT Pads
|
0
|
|
Vias
|
24
|
|
Nets
|
3
|
Accepted standard:
The RT/duroid 5880 PCB conforms to IPC-Class-2 standards, guaranteeing high-quality manufacturing and adherence to industry specifications.
Availability:
Our RT/duroid 5880 PCB is available worldwide, allowing customers from all corners of the globe to benefit from its outstanding performance and reliability.
Some Typical Applications:
The versatility and exceptional characteristics of the Rogers RT duroid 5880 PCB make it suitable for a wide range of applications, including:
Commercial Airline Broadband Antennas
Microstrip and Stripline Circuits
Millimeter Wave Applications
Radar Systems
Guidance Systems
Point to Point Digital Radio Antennas
Contact Info:
Should you have any technical questions or require further information, please don't hesitate to contact our sales team at sales20@bichengpcb.com. Our dedicated professionals are ready to assist you and provide the support you need.
In conclusion, the Rogers 5880 high frequency PCB sets new standards in high-frequency circuit applications. With its exceptional electrical properties, ease of customization, and compatibility with various applications, it is the ideal choice for engineers and designers seeking reliability, performance, and versatility. Experience the difference with the RT/duroid 5880 PCB and unlock the full potential of your high-frequency designs.
