Introducing the RT/duroid 6010 PCB 25mil: Revolutionizing Circuit Performance.
Item NO.:
BIC-237-v261.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

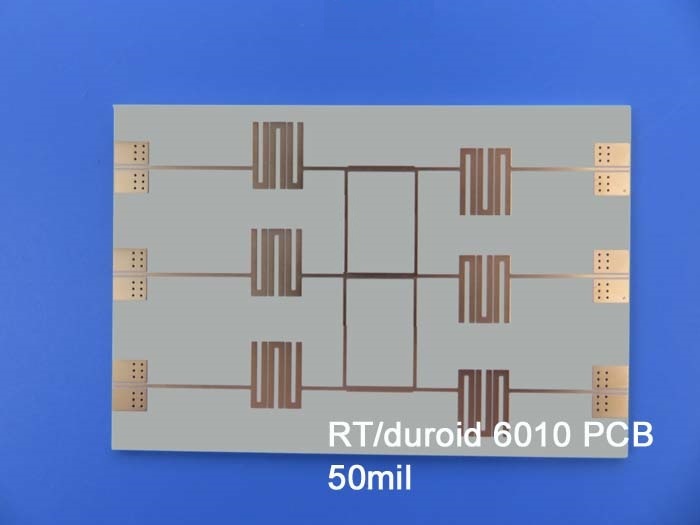

Rogers 6010 PCB RT/duroid 6010 25mil Substrate High Frequency Circuit Board
We are thrilled to introduce the newly shipped RT/duroid 6010 PCB 25mil, a cutting-edge solution that sets new standards in circuit performance. Designed with state-of-the-art Rogers RT/duroid 6010 ceramic-PTFE composites, this PCB offers unparalleled characteristics and opens up a world of possibilities for your electronic designs.
PCB Substrates:
The RT/duroid 6010 ceramic-PTFE composites exhibit exceptional properties, including a DK of 10.2 +/- 0.25 at 10 GHz/23°C and a dissipation factor of 0.0023 at the same frequency and temperature. With a Td greater than 500°C TGA and moisture absorption of just 0.01%, this substrate ensures reliability even in demanding environments. The CTE (Coefficient of Thermal Expansion) values of 24 ppm/°C in the X-axis, 24 ppm/°C in the Y-axis, and 47 ppm/°C in the Z-axis guarantee stability and dimensional integrity.
Features:
1.High Dielectric Constant: The high dielectric constant of the RT/duroid 6010 PCB enables circuit size reduction, making it an ideal choice for compact designs.
2.Low Loss: With low loss characteristics, this PCB is optimized for operating at X-band or below, ensuring minimal signal degradation and enhanced performance.
3.Tight εr and Thickness Control: The Rogers RT/duroid 6010 PCB offers tight εr and thickness control, delivering consistent and repeatable circuit performance.
4.Clad with Copper Foil: The PCB is clad with standard and reverse treated electrodeposited copper foil, ensuring reliable and efficient signal transmission.
5.Low Moisture Absorption: Its low moisture absorption rate enhances the PCB's stability, even in humid environments.
6.Reliable Plated Through-Holes: The Rogers 6010 PCB ensures reliable plated through-holes in multi-layer boards, promoting durability and longevity.
Stackup: 2-Layer Rigid PCB
The stackup of the Rogers 6010 high frequency PCB consists of two layers:
Copper Layer 1: 35 μm
RT/duroid 6010.2LM: 0.635 mm (25mil)
Copper Layer 2: 35 μm
RT/duroid 6010 Data sheet:
RT/duroid 6010 Typical Value |
|||||
Property |
RT/duroid 6010 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
10.2±0.25 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped stripline |
Dielectric Constant,εDesign |
10.7 |
Z |
|
8GHz to 40 GHz |
Differential Phase Length Method |
Dissipation Factor,tanδ |
0.0023 |
Z |
|
10 GHz/A |
IPC-TM-650 2.5.5.5 |
Thermal Coefficient of ε |
-425 |
Z |
ppm/℃ |
-50℃-170℃ |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
5 x 105 |
|
Mohm.cm |
A |
IPC 2.5.17.1 |
Surface Resistivity |
5 x 106 |
|
Mohm |
A |
IPC 2.5.17.1 |
Tensile Properties |
ASTM D638 (0.1/min. strain rate) |
||||
Young's Modulus |
931(135) 559(81) |
X Y |
MPa(kpsi) |
A |
|
Ultimate Stress |
17(2.4) 13(1.9) |
X Y |
MPa(kpsi) |
A |
|
Ultimate Strain |
9 to 15 7 to 14 |
X Y |
% |
A |
|
Compressive Properties |
|
ASTM D695 (0.05/min. strain rate) |
|||
Young's Modulus |
2144 (311) |
Z |
MPa(kpsi) |
A |
|
Ultimate Stress |
47(6.9) |
Z |
MPa(kpsi) |
A |
|
Ultimate Strain |
25 |
Z |
% |
|
|
Flexural Modulus |
4364 (633) 3751 (544) |
X |
MPa(kpsi) |
A |
ASTM D790 |
Ultimate Stress |
36 (5.2) 32 (4.4) |
X Y |
MPa(kpsi) |
A |
|
Deformation under load |
0.26 1.3 |
Z Z |
% |
24hr/50℃/7MPa 24hr/150℃/7MPa |
ASTM D261 |
Moisture Absorption |
0.01 |
|
% |
D48/50℃ 0.050"(1.27mm) thick |
IPC-TM-650 2.6.2.1 |
Thermal Conductivity |
0.86 |
|
W/m/k |
80℃ |
ASTM C518 |
Coefficient of Thermal Expansion |
24 |
X |
ppm/℃ |
23℃/50% RH |
IPC-TM-650 2.4.41 |
Td |
500 |
|
℃ TGA |
|
ASTM D3850 |
Density |
3.1 |
|
g/cm3 |
|
ASTM D792 |
Specific Heat |
1.00(0.239) |
|
j/g/k |
|
Calculated |
Copper Peel |
12.3 (2.1) |
|
pli (N/mm) |
after solder float |
IPC-TM-650 2.4.8 |
Flammability |
V-0 |
|
|
|
UL 94 |
Lead-free Process Compatible |
Yes |
|
|
|
|
Construction Details:
Construction Details |
Specifications |
Board Dimensions |
34mm x 18mm (1PCS) |
Tolerance |
+/- 0.15mm |
Minimum Trace/Space |
14/10 mils |
Minimum Hole Size |
0.25mm |
Blind Vias |
No |
Finished Board Thickness |
0.8mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Gold |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
PCB Statistics:
PCB Statistics |
Quantity |
Components |
10 |
Total Pads |
27 |
Thru Hole Pads |
12 |
Top SMT Pads |
15 |
Bottom SMT Pads |
0 |
Vias |
16 |
Nets |
2 |
Type of Artwork Supplied:
The Rogers RT/duroid 6010 PCB is accompanied by Gerber RS-274-X files, ensuring compatibility and ease of integration into your design workflow.
Accepted Standard:
The PCB adheres to the IPC-Class-2 standard, guaranteeing high manufacturing and quality control standards.
Availability:
The Rogers 6010 25mil substrate PCB is available worldwide, catering to the needs of customers and industries across the globe.
Some Typical Applications:
The RT/duroid 6010 PCB finds its applications in a wide range of industries and technologies, including:
1.Patch Antennas: The PCB's high dielectric constant and low loss characteristics make it suitable for patch antennas, enabling efficient signal transmission and reception.
2.Satellite Communications Systems: With its reliable performance and stable characteristics, the PCB is ideal for satellite communications systems, ensuring seamless and uninterrupted data transfer.
3.Power Amplifiers: TheRogers 6010high frequencyPCB is well-suited for power amplifiers, delivering high power handling capabilities and low loss characteristics.
4.Aircraft Collision Avoidance Systems: The PCB's durability, moisture resistance, and reliable plated through-holes make it a reliable choice for aircraft collision avoidance systems, ensuring safety and accurate detection.
5.Ground Radar Warning Systems: Thedouble sided Rogers 6010PCB's exceptional electrical properties and controlled impedance make it an excellent choice for ground radar warning systems, delivering reliable and accurate signal processing.
Contact Info:
For any technical questions or inquiries, please feel free to contact our dedicated sales team at sales20@bichengpcb.com. Our experienced professionals will be delighted to assist you.
In conclusion, the RT/duroid 6010 25mil PCB is a game-changing solution that combines cutting-edge substrate technology, precise construction details, and exceptional performance characteristics. With its high dielectric constant, low loss, and reliable plated through-holes, this PCB offers unmatched reliability and performance for a wide range of applications. Experience the future of circuit design with the Rogers RT/duroid 6010 PCB.
