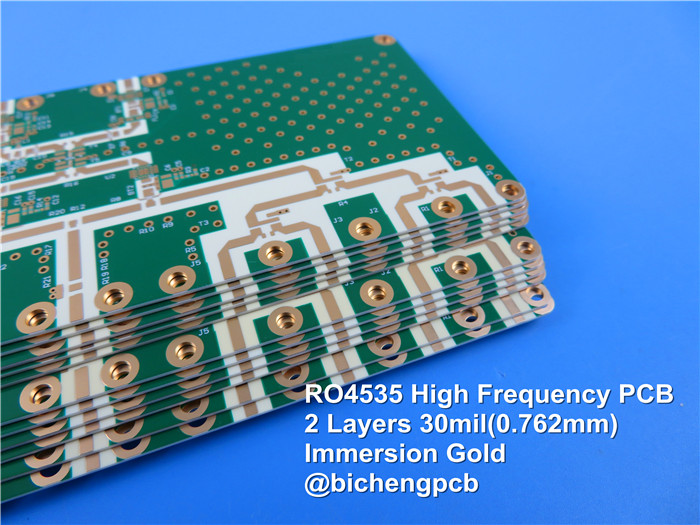

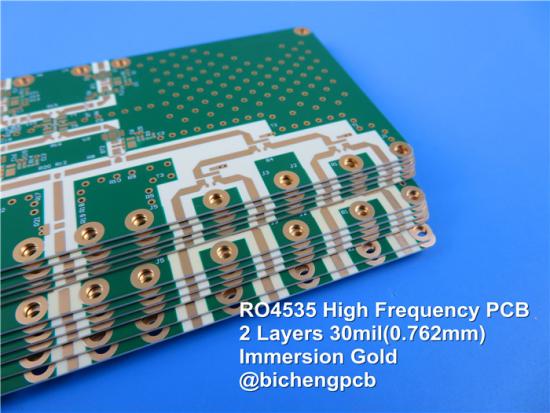

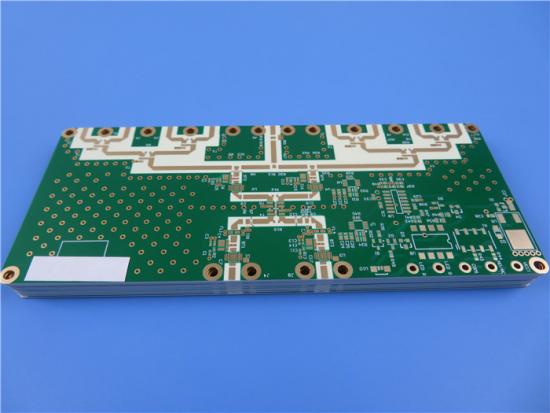

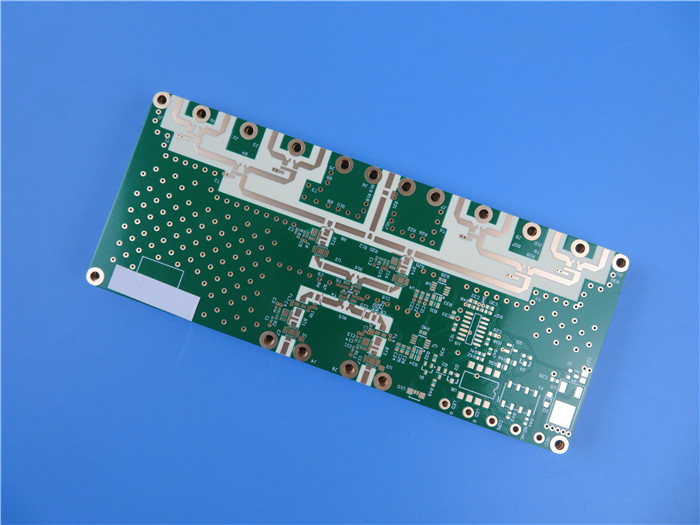

Introducing the RO4535 PCB 30mil: Revolutionizing High-Performance Applications
Item NO.:
BIC-236-v260.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days
Rogers 4535 PCBRO453530mil Rogers Material High Frequency Board Supplier
We are thrilled to present the newly shipped RO4535 30mil PCB , a cutting-edge solution designed to revolutionize a wide range of high-performance applications. As a senior sales manager, I am excited to provide you with a deep and informative article detailing the exceptional features and benefits of this remarkable PCB.
PCB Substrates:
The Rogers 4535 PCB utilizes Rogers' RO4535 ceramic-filled, glass-reinforced hydrocarbon laminates. With a dielectric constant (DK) of 3.41 at 10GHz and a dissipation factor of 0.0037 at the same frequency, this PCB ensures outstanding signal integrity. Moreover, its impressive PIM (typical) value of -157 dBC guarantees minimal interference, making it ideal for sensitive applications. The PCB also offers excellent dimensional stability, with CTE values of 16ppm/°C (X-axis), 17ppm/°C (Y-axis), and 50ppm/°C (Z-axis). Its high glass transition temperature (Tg) exceeding 280 °C ensures reliable performance even in extreme conditions, while its operating range of -40℃ to +85℃ provides versatility.
Features and Benefits:
1.Low Loss, Low Dk, and Low PIM Response: The RO4535 PCB offers a low loss, low dielectric constant (Dk), and low passive intermodulation (PIM) response, ensuring optimal performance and signal quality across a wide range of applications.
2.Compatibility with Standard PCB Fabrication: Designed with a thermoset resin system, the RO4535 PCB is fully compatible with standard PCB fabrication processes, streamlining production and assembly.
3.Excellent Dimensional Stability: With exceptional dimensional stability, this PCB maximizes yield on larger panel sizes, reducing waste and enhancing manufacturing efficiency.
4.Uniform Mechanical Properties: The RO4535 PCB maintains its mechanical form during handling, enabling reliable and consistent performance in various conditions.
5.High Thermal Conductivity: Thanks to its high thermal conductivity, this PCB excels in power handling, making it an excellent choice for applications that demand superior heat dissipation.
2-Layer Rigid PCB Stackup:
The Rogers 4535 PCB features a 2-layer rigid PCB construction. It consists of a copper layer of 35 μm, a 0.762 mm thick RO4535 core, and another copper layer of 35 μm.
RO4535 PCB typical values:
Property |
RO4535 |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant, er Process |
3.44 ± 0.08 |
Z |
- |
10 GHz/23℃ 2.5 GHz |
IPC-TM-650,2.5.5.5 |
Dissipation Factor |
0.0032 |
Z |
- |
2.5 GHz/23℃ |
IPC-TM-650, 2.5.5.5 |
0.0037 |
10 GHz/23℃ |
||||
PIM (Typical) |
-157 |
- |
dBc |
Reflected 43 dBm swept tones |
Summitek 1900b PIM Analyzer |
Dielectric Strength |
>500 |
Z |
V/mil |
0.51 mm |
IPC-TM-650, 2.5.6.2 |
Dimensional Stability |
<0.5 |
X,Y |
mm/m (mils/inch) |
after etch |
IPC-TM-650, 2.4.39A |
Coefficient of Thermal Expansion |
16 |
X |
ppm/℃ |
-55 to 288℃ |
IPC-TM-650, 2.4.41 |
17 |
Y |
||||
50 |
Z |
||||
Thermal Conductivity |
0.6 |
- |
W/(m.K) |
80℃ |
ASTM C518 |
Moisture Absorption |
0.09 |
- |
% |
D48/50 |
IPC-TM-650, 2.6.2.1 ASTM D570 |
Tg |
>280 |
- |
℃ TMA |
A |
IPC-TM-650, 2.4.24.3 |
Density |
1.9 |
- |
gm/cm3 |
- |
ASTM D792 |
Copper Peel Strength |
5.1 (0.9) |
- |
lbs/in (N/mm) |
1 oz. EDC post solder float |
IPC-TM-650, 2.4.8 |
Flammability |
V-0 |
- |
- |
- |
UL 94 |
Lead-Free Process Compatible |
Yes |
- |
- |
- |
- |
Construction Details:
Construction Details |
Specifications |
Board Dimensions |
94.05mm x 116.05mm |
(+/- 0.15mm) |
|
Minimum Trace/Space |
6/7 mils |
Minimum Hole Size |
0.35mm |
Blind Vias |
No |
Finished Board Thickness |
0.88mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Gold |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
Green |
Electrical Test |
100% prior to shipment |
PCB Statistics:
PCB Statistics |
Quantity |
Components |
134 |
Total Pads |
243 |
Thru Hole Pads |
130 |
Top SMT Pads |
113 |
Bottom SMT Pads |
0 |
Vias |
271 |
Nets |
9 |
Type of Artwork Supplied: Gerber RS-274-X.
The RO4535 30mil substrate PCB utilizes Gerber RS-274-X artwork, a widely used industry-standard format. This compatibility ensures ease of use and seamless integration into the manufacturing process.
Quality Standard: IPC-Class-2.
Rest assured, the 0.762mm RO4535 PCB adheres to the IPC-Class-2 quality standard. This guarantees high-quality manufacturing and performance, making it a reliable choice for a wide range of applications.
Worldwide Availability:
We are pleased to offer the RO4535 high frequencyPCB worldwide. No matter your location, you can take advantage of this exceptional PCB solution for your projects.
Some Typical Applications:
The Rogers RO4535 PCB is specifically designed for cellular infrastructure base station antennas and WiMAX antenna networks. With its excellent performance characteristics, this PCB ensures reliable and efficient operation in demanding applications.
For any technical questions or inquiries about the RO4535 PCB, please reach out to our dedicated sales team at sales20@bichengpcb.com. Our experts are ready to provide the necessary support and information to assist you.
In conclusion, the Rogers 4535 PCB 30mil sets a new standard for high-performance applications, delivering exceptional features and reliability. With its low loss, low Dk, and low PIM response, compatibility with standard PCB fabrication, excellent dimensional stability, uniform mechanical properties, and high thermal conductivity, this PCB is poised to elevate the performance of your projects. Don't miss out on the opportunity to leverage the RO4535 high frequency PCB for your next application. Contact our sales team today to discuss how this groundbreaking solution can meet your specific requirements and drive your success in the industry.
