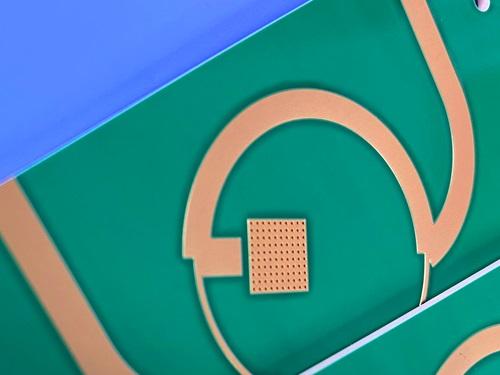

Rogers RT/duroid 6010.2LM PCB 2.8mm 4-layer ENIG Green Solder Mask White Silkscreen

Rogers RT/duroid 6010.2LM PCB 2.8mm 4-layer ENIG Green Solder Mask White Silkscreen

The RT/duroid 6010.2LM 4-layer ENIG PCB (2.8mm thickness) is a high-performance microwave circuit board engineered for demanding electronic and microwave applications, leveraging advanced ceramic-PTFE composite laminates to deliver exceptional electrical and mechanical stability. Designed with precision manufacturing standards and strict quality control, this PCB is tailored to meet the needs of high-frequency systems where reliability, repeatability, and miniaturization are critical. Below is a comprehensive overview of its specifications, features, benefits, and applications, with key structural details presented in tabular form for clarity.

Product Overview

Crafted with Rogers RT/duroid 6010.2LM base material—a ceramic-PTFE composite specifically developed for microwave circuits requiring a high dielectric constant (Dk)—this 4-layer rigid PCB combines low loss performance with tight dimensional and electrical control. With a finished thickness of 2.8mm, ENIG surface finish, it is suitable for global deployment and ideal for operating at X-band or below, making it a preferred choice for aerospace, defense, and telecommunications applications.

PCB Construction Details

The 6010.2LM PCB’s construction is optimized for high-frequency performance and manufacturing precision, with clear specifications for material, dimensions, and finishing processes summarized in the table below.

PCB Stackup

The 4-layer Rogers PCB features a carefully designed stackup that ensures consistent electrical performance, with precise layer thicknesses for copper and base material as detailed below.

PCB Statistics

The following table summarizes the key statistical parameters of the Rogers 6010.2LM PCB, including component count, pad distribution, vias, and nets, reflecting its design complexity and functionality.

Key Technical Features

The RT/duroid 6010.2LM PCB is built on a foundation of superior material properties, with features that set it apart for high-frequency applications:

• Dielectric Constant (Dk): 10.2±0.25
• Dissipation Factor: 0.0023 at 10 GHz
• CTE (x/y/z): 24 ppm/°C, 24 ppm/°C, 47 ppm/°C
• Decomposition Temperature (Td): 500°C (TGA)
• Thermal Conductivity: 0.86 W/m·K
• Flammability: UL 94 V‑0
• Cladding: Standard and reverse‑treated electrodeposited copper foil

Core Benefits

This 4-layer RT/duroid 6010.2LM PCB delivers tangible advantages for system designers and end-users alike:

• High Dk enables significant circuit miniaturization
• Ultra‑low loss for stable performance at X‑band and below
• Tight Dk and thickness control ensure excellent circuit repeatability
• Low moisture absorption for stable operation in harsh environments
• Reliable plated through‑holes for robust multilayer interconnections

Typical Applications

The RT/duroid 6010.2LM 4-layer PCB is engineered for specialized high-frequency and high-reliability applications, including:

-Patch Antennas

-Satellite Communications Systems

-Power Amplifiers

-Aircraft Collision Avoidance Systems

-Ground Radar Warning Systems

Additional Information

- Artwork Type: Gerber RS-274-X, ensuring compatibility with standard PCB manufacturing processes.

- Quality Standard: IPC-Class-2, meeting industry requirements for non-critical end-use applications with high reliability demands.

- Availability: Worldwide, with global supply chain support to meet diverse regional requirements.

Conclusion

In summary, the RT/duroid 6010.2LM 4-layer ENIG PCB (2.8mm) is a high-performance, precision-engineered solution for microwave and high-frequency applications. Its advanced material properties, strict manufacturing controls, and tailored design make it a reliable choice for industries where performance, miniaturization, and reliability are non-negotiable.
