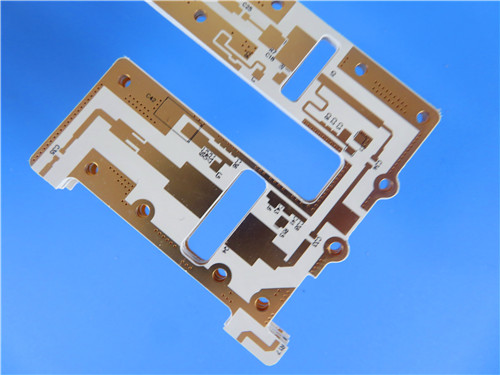

Rogers TC350 PCB 2-layer 60mil1.524mm Laminate2OZ ENIG No Legend No Solder Mask
In the realm of printed circuit boards, the TC350 PCB 60mil emerges as a cutting-edge solution, redefining standards of performance and reliability in high-power applications. This meticulously crafted board, built upon the innovative Rogers TC350 laminate, combines advanced materials and precision engineering to deliver unparalleled quality and efficiency. Let's delve deeper into the intricacies of this technological marvel, exploring its construction, features, benefits, and applications that make it a game-changer in the industry.
1. PCB Construction
At the heart of the Rogers TC350 PCB lies a robust design characterized by:
|
Parameter
|
Specification
|
|
Base Material
|
Rogers TC350 (PTFE + ceramic-filled)
|
|
Layer Count
|
Double-sided (2-layer)
|
|
Board Dimensions
|
320mm x 80mm (±0.15mm tolerance)
|
|
Minimum Trace/Space
|
6/6 mils
|
|
Minimum Hole Size
|
0.3mm
|
|
Blind/Buried Vias
|
No
|
|
Finished Thickness
|
1.6mm (60mil)
|
|
Copper Weight (Outer Layers)
|
2oz (70μm total, 35μm base + plating)
|
|
Via Plating Thickness
|
20 μm
|
|
Surface Finish
|
ENIG (Electroless Nickel Immersion Gold)
|
|
Silkscreen (Top/Bottom)
|
No
|
|
Solder Mask (Top/Bottom)
|
No
|
|
Electrical Testing
|
100% tested prior to shipment
|
2. PCB Stackup
The TC350 PCB boasts a meticulous 2-layer rigid stackup consisting of:
|
Layer
|
Thickness
|
|
Copper (Top Layer)
|
70μm (35μm base + plating)
|
|
TC350 Core
|
1.524mm (60mil)
|
|
Copper (Bottom Layer)
|
70μm (35μm base + plating)
|
3. PCB Statistics
The TC350 60 mil substrate accommodates a range of components, with detailed statistics including:
|
Category
|
Count
|
|
Components
|
23
|
|
Total Pads
|
88
|
|
Through-Hole Pads
|
72
|
|
Top SMT Pads
|
16
|
|
Bottom SMT Pads
|
0
|
|
Vias
|
34
|
|
Nets
|
2
|
4. Quality Assurance and Standards
The TC350 high frequency PCB upholds the renowned IPC-Class-2 quality standard, guaranteeing top-notch performance and reliability that meet industry benchmarks. With Gerber RS-274-X artwork provided, the board is primed for seamless integration into diverse manufacturing processes.
5. TC350 Laminate
Rogers TC350 laminates stand out as a hallmark of innovation, offering a blend of features that include:
-Dielectric constant (Dk) of 3.5 across varied frequencies, ensuring consistent performance.
-Low dissipation factor for optimal signal integrity.
-Excellent thermal conductivity for efficient heat dissipation.
-Superior dielectric constant stability crucial for high-frequency applications.
6. Features
The TC350 PCB 60mil introduces a spectrum of features aimed at enhancing performance and reliability, including:
-Exceptional thermal properties, reducing junction temperatures.
-Efficient heat dissipation for prolonged device lifespan.
-Enhanced bandwidth utilization for amplifiers and antennas.
-Unmatched plated through hole reliability for uninterrupted connectivity.
7. Applications
The TC350 material PCB 60mil finds its stride across a diverse array of applications, including:
-Power Amplifiers, Filters, and Couplers.
-Tower Mounted Amplifiers/Boosters.
-Antennas sensitive to thermal variations.
-Microwave Combiners and Power Dividers.
8.Conclusion
In conclusion, the TC350 PCB 60mil stands as a testament to innovation and precision, redefining the benchmarks of performance and reliability in high-power applications. With its advanced features, robust construction, and unparalleled quality, this board represents the pinnacle of modern engineering, paving the way for enhanced efficiency and reliability in a multitude of industries. Experience the future of PCB technology with the TC350 PCB 60mil - where excellence meets.
