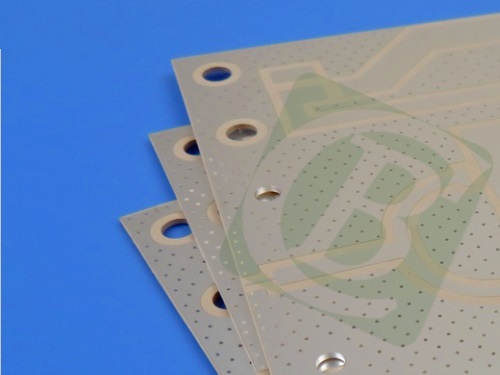

RT/duroid 6002 PCB 2-layer 10mil 0.254mm Rogers 6002 Substrate Immersion Silver Board

RT/duroid 6002 PCB 2-layer 10mil 0.254mm Rogers 6002 Substrate Immersion Silver Board

Overview

The RT/duroid 6002 2-layer PCB is a high-performance microwave circuit board engineered for complex high-frequency applications. With10milRogerssubstratethickness, immersion silver surface finish, and adherence to IPC-Class-2 standards, it delivers exceptional electrical stability, low loss, and reliable mechanical performance, making it an ideal choice for precision microwave and RF systems worldwide.

PCB Construction Details

This table summarizes the comprehensive construction parameters of the Rogers 6002 PCB, covering material, dimensions, electrical and physical properties, and quality control measures.

PCB Stackup

The following table outlines the layered structure of the 2-layer rigid PCB, specifying the material and thickness of each layer.

PCB Statistics

This table presents quantitative data on the 10 mil RT/duroid 6002 PCB's component-related and connectivity attributes.

About RT/duroid 6002 Base Material

Rogers RT/duroid 6002 laminates are ceramic-filled PTFE (polytetrafluoroethylene) microwave materials. Designed for complex microwave structures, they feature a low dielectric constant and low loss, delivering outstanding high-frequency performance. With excellent mechanical and electrical properties, these materials ensure reliability even in multi-layer board constructions, laying a solid foundation for the PCB's superior performance.

Key Features

• Dielectric constant (Dk): 2.94 +/- 0.04, ensuring stable signal transmission
• Low thermal coefficient of Dk: 12 ppm/°C, maintaining electrical stability under temperature fluctuations
• Low dissipation factor: 0.0012 at 10GHz, minimizing signal loss
• High thermal decomposition temperature (Td): 500°C (TGA), suitable for high-temperature environments
• Thermal Conductivity: 0.6 W/m/k, effective heat dissipation
• Low Z-axis coefficient of thermal expansion: 24 ppm/°C, reducing thermal stress
• Ultra-low Moisture Absorption: 0.02%, ensuring long-term reliability in humid conditions

Core Benefits

• Low loss characteristic enables excellent high-frequency performance, ideal for microwave and RF applications
• Tight thickness control ensures consistent electrical parameters across batches
• In-plane expansion coefficient matched to copper, making it perfect for temperature-sensitive scenarios
• Low out-gassing property, meeting the requirements of space applications
• Excellent dimensional stability, avoiding deformation during use
• Superior mechanical and electrical properties, supporting reliable multi-layer board designs

Typical Applications

This RT Duroid 6002 PCB is tailored for cutting-edge electronic systems that demand high reliability and performance, including:

• Phased Array Antennas
• Ground-Based and Airborne Radar Systems
• Global Positioning System (GPS) Antennas
• Power Backplanes
• Commercial Airline Collision Avoidance Systems
• Beam Forming Networks

Supplementary Information

• Artwork Type: Gerber RS-274-X, ensuring compatibility with standard PCB manufacturing processes.
• Compliance Standard: IPC-Class-2, meeting industry requirements for quality and performance.
• Availability: Worldwide shipping, enabling global access for international projects.
