Product Overview

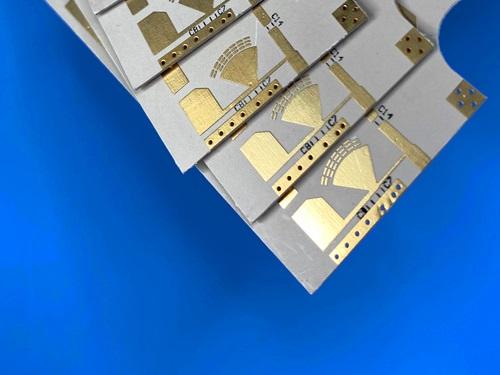

This product is a precision-engineered, double-sided Printed Circuit Board (PCB) fabricated on the advanced CER-10 organic-ceramic laminate. Designed for demanding high-frequency and microwave applications, this board combines exceptional electrical performance with robust mechanical reliability in a compact form factor. With a controlled dielectric constant (Dk) of 10 and an ultra-low dissipation factor (Df), it ensures minimal signal loss and stable impedance characteristics at microwave frequencies. The 25mil (0.635mm) thick CER-10 core provides excellent dimensional stability and interlaminar bond strength. Featuring a high-quality Immersion Gold (ENIG) surface finish on the copper traces, it offers a flat, solderable, and wire-bondable surface, ideal for sensitive components.

PCB Construction Details

The following table encapsulates the fundamental physical and fabrication specifications of the CER-10 PCB, defining its material composition, critical dimensions, tolerances, and finishing.

PCB Stackup

This Taconic board features a symmetrical 2-layer rigid construction. The stackup is detailed in the following table, showing the material thickness and copper weights for each layer.

PCB Statistics

The design complexity and component placement are quantified in the table below, detailing counts for pads, components, and interconnections.

Core Material: CER-10 Laminate

This PCB is built upon Taconic CER-10, a premier material from the ORCER family. It represents a fusion of advanced ceramic fill technology and PTFE-coated fiberglass expertise. Key attributes include:

1)Stable High Dk: A dielectric constant of 10 at 10 GHz enables effective circuit miniaturization.

2)Ultra-Low Loss: A dissipation factor of only 0.0035 at 10 GHz ensures superior signal integrity for high-frequency energy.

3)Exceptional Reliability: It boasts outstanding interlaminar bond strength and blister-resistant solder performance (withstands multiple solder reflow cycles).

4)Environmental Stability: Very low moisture absorption (0.02%) and a low Z-axis Coefficient of Thermal Expansion (46 ppm/°C) ensure reliable plated through-holes and stable electrical performance under varying environmental conditions.

5)Flammability Rating: Complies with V-0 per IPC-TM-650, enhancing safety.

Key Features & Benefits

Optimized for Microwave Performance: The high, stable Dk and low loss tangent are ideal for passive microwave components.

Enhanced Mechanical Robustness: Superior flexural strength and dimensional stability (CTE: X=13, Y=15 ppm/°C) ensure durability during assembly and in the field.

Reliable Assembly Surface: Immersion Gold finish provides excellent oxidation resistance, shelf life, and compatibility with fine-pitch SMT and wire bonding.

Typical Applications

This CER-10 Taconic High Frequency PCB is ideally suited for:

• RF Power Amplifiers (PAs)
• Waveguide and Cavity Filters
• Directional Couplers, Power Dividers/Combiners
• Low-Noise Amplifiers (LNAs)
• Other High-Frequency Passive and Active Components

Ordering & Documentation

• Artwork Format: Gerber RS-274-X
• Quality Standard: IPC-Class-2
• General Tolerance: Applicable IPC standards govern unspecified dimensional tolerances.

This CER-10 Taconic Immersion Gold PCB is a solution for engineers seeking a reliable, high-performance foundation for next-generation RF and microwave circuitry.
