Introduction

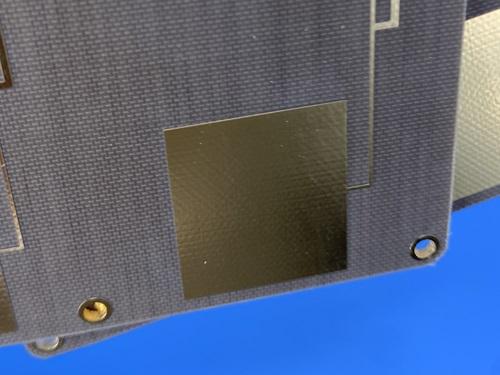

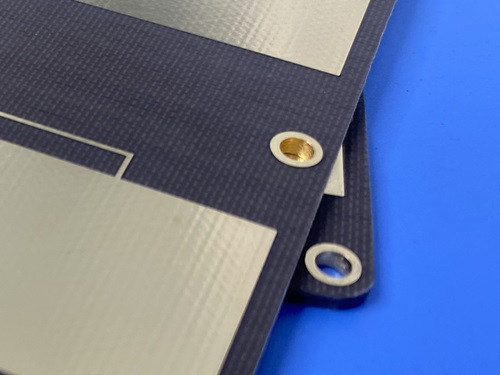

The TLX-9 PCB 31mil is a high-frequency, two-layer printed circuit board engineered for superior signal integrity, thermal stability, and mechanical durability. Designed usingTaconic TLX-9—a premium PTFE/woven glass laminate—this PCB is ideal for RF, microwave, and high-speed digital applications where low loss, controlled impedance, and consistent electrical performance are critical.

With a dielectric constant (Dk) of 2.5 and an ultra-low dissipation factor (Df) of 0.0019 @ 10 GHz, this TLX-9 Taconic PCB Substrate minimizes signal attenuation, making it perfect for high-frequency circuits, amplifiers, antennas, and telecommunications equipment. The Taconic RF PCB’s immersion gold (ENIG) surface finish ensures excellent solderability and long-term reliability, even in harsh environments.

Key Features & Specifications

1. PCB Construction & Material Properties

2. TLX-9 Laminate Properties

3.PCB Stack-up

4.PCB Statistic

Why Choose the TLX-9 PCB?

1. Superior High-Frequency Performance

• Ultra-low signal loss due to Dk = 2.5 and Df = 0.0019 @ 10 GHz
• Stable electrical properties across broad frequency ranges and temperature fluctuations
• Ideal for RF, microwave, and millimeter-wave applications

2. Excellent Thermal & Mechanical Stability

• Low CTE (9-12 ppm/°C in x-y axis) minimizes warping under thermal stress
• High flexural strength (>23,000 psi) ensures durability in harsh conditions
• UL 94 V-0 flame retardant for safety in high-power applications

3. Reliable Manufacturing & Durability

• Immersion gold (ENIG) finish prevents oxidation and enhances solderability
• 1oz copper layers provide strong current-carrying capacity
• 100% electrical testing ensures defect-free performance

4. Optimized for RF & Microwave Designs

• No blind vias—simplified 2-layer design for cost-effective production
• Tight impedance control for high-speed signal integrity
• Minimal moisture absorption (<0.02%) for stable performance in humid environments

Typical Applications

The TLX-9 Taconic PCB Laminates are widely used in high-frequency, high-reliability applications, including:

✅Low-Noise Amplifiers (LNAs)

✅Satellite & Radar Systems

✅5G & Wireless Communication (PCS/PCN, mmWave)

✅High-Power Amplifiers (HPAs)

✅Antennas & Beamforming Networks

✅Military & Aerospace Electronics

Ordering & Availability

• Global availability with fast lead times
• Gerber RS-274-X format accepted for fabrication
• Customizable upon request (impedance control, special finishes, etc.)

Conclusion

The TLX-9 Taconic RF PCB Circuit Board (31mil, 2-layer) is a high-performance RF/microwave circuit board that combines low dielectric loss, superior thermal stability, and robust mechanical properties. Whether for telecom, aerospace, or defense applications, this TLX-9 high frequency PCB ensures reliable, high-speed signal transmission with minimal attenuation.

For engineers and designers seeking a cost-effective yet high-quality RF substrate, the Taconic TLX-9 PCB is an outstanding choice.

Contact us today for pricing, customization options, and technical support!
