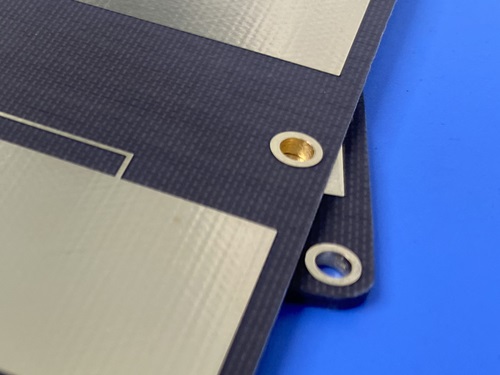

Taconic TLX-8 PCB 2-layer 20mil 0.508mm ENEPIG High Frequency Circuit Board

Taconic TLX-8 PCB 2-layer 20mil 0.508mm ENEPIG High Frequency Circuit Board

Introduction

The TLX-8 PCB 20mil is a high-frequency, high-reliability printed circuit board designed for RF, microwave, and aerospace applications where signal integrity, thermal stability, and mechanical endurance are critical. Built with Taconic TLX-8 PTFE fiberglass laminate, this Taconic RF PCB offers exceptional electrical performance, low signal loss, and outstanding environmental resistance, making it ideal for radar systems, satellite communications, military antennas, and aerospace electronics.

PCB Construction & Technical Specifications

1. Layer Stackup

The Taconic TLX-8 PCB 20mil features a simple yet highly efficient 2-layer stackup optimized for RF/microwave performance:

2.PCB Construction

3.PCB Statistic

Why Choose TLX-8 Material?

1. Superior High-Frequency Performance

• Low Dielectric Constant (Dk = 2.55±0.04 @ 10 GHz)–Ensures minimal signal delay and phase distortion.
• Ultra-Low Dissipation Factor (Df = 0.0018 @ 10 GHz)–Reduces signal loss in high-frequency circuits.
• Excellent Passive Intermodulation (PIM) Performance (< -160 dBc)–Critical for 5G antennas, radar, and satellite communications where signal clarity is paramount.

2. Extreme Environmental Durability

TLX-8 is engineered to withstand harsh operating conditions, including:

• High vibration & mechanical stress (e.g., aerospace, military, and automotive applications)
• Wide temperature ranges (-55°C to +260°C)
• Moisture resistance (0.02% absorption)–Prevents degradation in humid environments.
• Radiation-resistant–Suitable for space applications (NASA-approved low-outgassing material).
• Flame-retardant (UL 94 V-0 rated)–Meets stringent safety requirements.

3. Dimensional Stability & Thermal Resistance

CTE (Coefficient of Thermal Expansion):

• X/Y-axis: 21-23 ppm/°C (prevents warping under thermal cycling)
• Z-axis: 215 ppm/°C (controlled expansion for plated through-holes)

Decomposition Temperature (Td):

• 2% weight loss at 535°C
• 5% weight loss at 553°C (ensures stability in high-heat environments)

Key Applications

This Taconic High Frequency PCB is ideal for high-frequency, high-reliability applications, including:

- radar systems

- mobile communications

- microwave test equipment

- microwave transmission devices

- couplers, splitters, combiners, amplifiers, antennas

Quality Assurance & Compliance

• Manufactured under IPC-Class-2 standards
• 100% electrical testing before shipment
• ENEPIG finish for superior solderability and corrosion resistance
• Tightly controlled impedance (critical for RF designs)

Ordering & Availability

• Global shipping available
• Customizable upon request (different thicknesses, layer counts, and finishes)
• Fast lead times for prototyping and production

Conclusion

The TLX-8 20mil Taconic PCB Substrate is a high-performance, ultra-reliable circuit board designed for RF, microwave, and aerospace applications. With its low Dk/Df, excellent thermal stability, and resistance to extreme environments, it is the ideal choice for engineers working on 5G, radar, satellite, and military electronics.

For high-frequency designs requiring precision and durability, this TLX-8 Taconic RF PCB Circuit Board delivers exceptional signal integrity, mechanical strength, and long-term reliability.

Contact us today to discuss your project requirements or request a quote!
