1. Product Overview

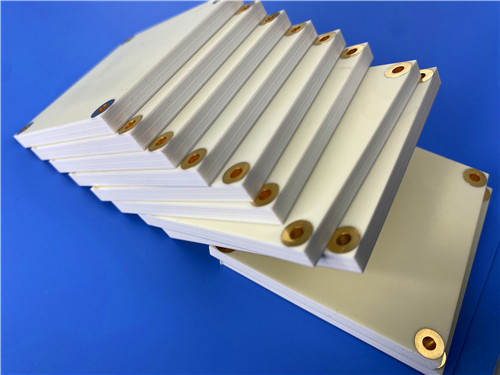

The TP980 PCB (7.62mm thick, 2-layer, ENIG finish) is an ultra-thick, high-frequency circuit board engineered for mission-critical aerospace, defense, and satellite applications where thermal stability, mechanical rigidity, and signal integrity are paramount. Utilizing TP980 ceramic-PPO composite material, this DK9.8 High DK PCB delivers exceptional dielectric stability (Dk: 9.8±0.2 at 10GHz), ultra-low loss (Df: 0.0012), and outstanding thermal performance (0.65 W/mK).

With a massive 7.7mm finished thickness, 1oz copper layers, and ENIG surface finish, this ultra-thick 300mil PCB is designed for high-power RF systems, missile guidance modules, and satellite navigation antennas. Manufactured to IPC-Class-2 standards, it ensures reliability in extreme environments, including high-vibration, thermal cycling, and moisture-resistant conditions.

2.PCB Construction Details

The TP980 high frequency PCB boasts a robust construction featuring TP980 as its base material, renowned for its exceptional dielectric properties and reliability.

3.TP980 Stackup

The PCB stackup comprises：

4.TP980 PCB Statistics

5.Features of TP980

-Dielectric Constant (Dk): 9.8±0.2 at 10GHz, ensuring optimal signal integrity.

-Dissipation Factor: .0012 at 10GHz, enhancing efficiency in high-frequency applications.

-Thermal Stability: With a low TCDK and CTE values across axes, the TP980 PCB excels in-maintaining performance in extreme temperature conditions.

-Thermal Conductivity: 0.65 W/mK, facilitating efficient heat dissipation.

-Moisture Absorption: Merely 0.01%, ensuring longevity and reliability.

-UL 94-V0 Certification: Guarantees compliance with stringent safety standards.

6.The TP Series

The TP series PCB represents a breakthrough in high-frequency thermoplastic materials. With a unique composition of ceramics and PPO resin, these TP PCB laminates offer unparalleled dielectric performance and reliability without fiberglass reinforcement. The dielectric constant, ranging from 3 to 25, can be tailored to suit specific circuit requirements, providing flexibility and precision. TP980, among its counterparts, epitomizes excellence with its remarkable attributes.

7.Applications

The TP980 PCB finds its application in a wide array of industries and technologies, including:

- Global Satellite Navigation System

- missile-borne,

- fuze technology

- miniaturized antenna

Conclusion

The TP980 TP high frequency PCB (7.62mm thick, ENIG finish) is a high-performance solution for defense, aerospace, and satellite systems requiring ultra-stable RF performance, extreme durability, and thermal management. ItsTP980 substrate, ultra-thick construction, and precision manufacturing make it ideal for missile systems, radar, and navigation antennas.

Contact us today for pricing, lead times, and customization options!
