CER-10 PCB 62mil - Unleashing Performance and Reliability

  • March 06. 2024

Introducing CER-10, the organic-ceramic DK-10 laminate from the renowned ORCER family of Taconic products. CER-10 represents the pinnacle of Taconic's expertise in ceramic fill technology and coated PTFE fiberglass. This exceptional laminate combines the advantages of woven glass reinforcement with a proprietary composition, resulting in outstanding interlaminar bond strength, solder resistance, and uniform electrical properties. CER-10 is specifically designed to exhibit low moisture absorption, superior dimensional stability, and remarkable flexural strength. With its low Z-axis expansion, CER-10 62mil material PCB ensures plated-through-hole reliability even in the most demanding thermal environments.

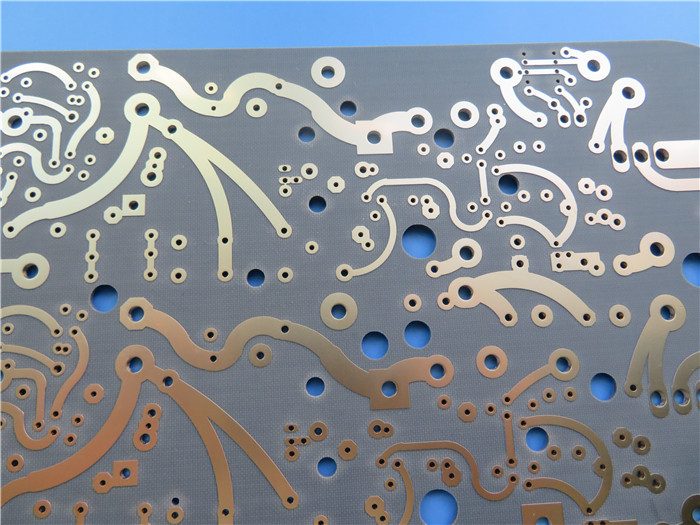

CER-10 pcb

Features that set CER-10 apart:

1) Impressive Electrical Performance:

CER-10 boasts a Dk of 10 at 10GHz, ensuring consistent signal integrity and reliable data transmission. With a dissipation factor of only 0.0035 at 10GHz, it minimizes signal loss, making it ideal for high-frequency applications.

2) Thermal Stability:

The coefficient of thermal expansion (CTE) of CER-10 is carefully matched to copper, ensuring thermal reliability and reducing the risk of delamination or stress-related failures. With a CTE of 46 ppm/°C in the z-axis, CER-10 guarantees stability in extreme thermal conditions.

3) Efficient Heat Dissipation:

CER-10 exhibits a thermal conductivity of 0.63 W/mk, enabling effective heat dissipation, which is crucial for applications with high power requirements or stringent thermal management needs.

4) Enhanced Reliability:

With a moisture absorption rate of only 0.02%, CER-10 ensures exceptional reliability in humid environments, reducing the risk of electrical shorts and performance degradation. Its dielectric breakdown strength of 44 kV provides an additional level of protection against electrical breakdown.

Benefits that make CER-10 the preferred choice:

1) Exceptional Interlaminar Bond:

The superior interlaminar bond strength of CER-10 ensures excellent reliability, even under harsh operating conditions. This feature provides peace of mind, knowing that your PCB will deliver outstanding performance and withstand the test of time.

2) Low Moisture Absorption:

CER-10's low moisture absorption rate guarantees stable electrical properties, preventing issues such as impedance variations or dimensional changes due to humidity. This feature is particularly advantageous in applications where moisture ingress must be minimized.

3) Enhanced Dimensional Stability:

The woven glass reinforcement in CER-10 enhances its dimensional stability, ensuring that your PCB maintains its shape and form over time. This stability is vital for applications requiring precise alignment, tight tolerances, or when the PCB is subjected to mechanical stress.

4) Low Z-Axis Expansion:

CER-10's low Z-axis expansion (CTE 46 ppm/°C) allows for reliable plated-through-hole connections, even in extreme thermal environments. This feature ensures that your PCB maintains its structural integrity, minimizing the risk of failure due to temperature fluctuations.

5) Stable DK over Frequency:

CER-10 retains a stable dielectric constant (DK) across a wide frequency range. This characteristic is crucial for applications where signal integrity and consistent performance are paramount, enabling reliable data transmission and reducing the risk of data corruption or signal loss.

6) Circuit Miniaturization:

The exceptional electrical properties, combined with the dimensional stability of CER-10, make it an ideal choice for circuit miniaturization. By utilizing CER-10, you can design compact and efficient PCB layouts, reducing space requirements and enhancing overall system performance.

7) Increased Flexural Strength:

CER-10's woven glass reinforcement significantly enhances its flexural strength, providing added durability and resistance to mechanical stress. This feature is particularly beneficial in applications where the PCB is subjected to bending or vibration.

CER-10 PCB 62milPCB Construction:

The Taconic CER-10 PCB is a 2-layer rigid PCB with a carefully designed stackup for optimal performance. The key construction details are as follows:

Board Dimensions: The PCB measures 73.2mm x 36.44mm, allowing for compact and space-efficient designs. The dimensions are manufactured with high precision, maintaining tight tolerances of +/- 0.15mm.

Copper Layers: The PCB features two copper layers with a thickness of 35 μm each. The copper layers ensure excellent signal conductivity and provide a robust foundation for the circuitry.

CER-10 Core: The core of the PCB is composed of CER-10 laminate with a thickness of 1.575mm (62mil). This core material delivers exceptional electrical properties, dimensional stability, and thermal reliability.

Minimum Trace/Space: The PCB supports a minimum trace/space width of 5/5 mils, enabling intricate and compact circuit designs.

Minimum Hole Size: The PCB accommodates a minimum hole size of 0.4mm, allowing for precise component placement and reliable interconnections.

Via Plating Thickness: The vias on the PCB have a plating thickness of 20 μm, ensuring robust and reliable conductivity between layers.

Surface Finish: The PCB is finished with immersion tin, providing a smooth and uniform surface that enhances solderability and ensures excellent electrical performance.

Silkscreen and Solder Mask: The top silkscreen is printed in black, providing clear and legible component markings for easy assembly and identification. The PCB does not have a bottom silkscreen or solder mask, allowing for a clean and minimalist appearance.

Electrical Testing: Prior to shipment, each PCB undergoes a 100% electrical test to ensure that all connections are intact and meet the specified quality standards.

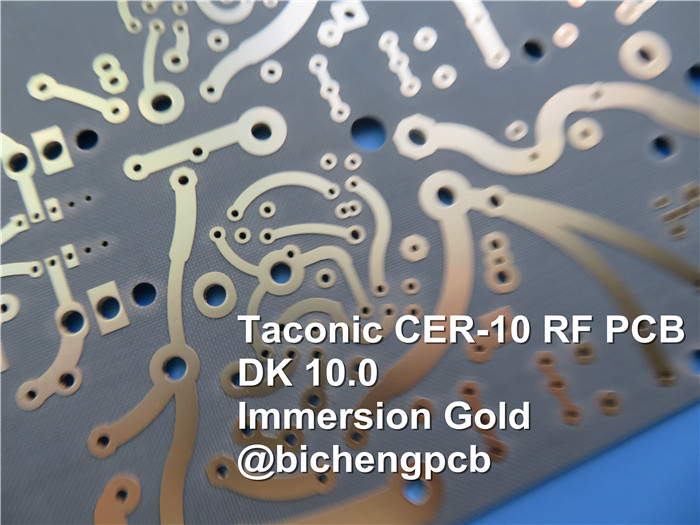

CER-10 62mil RF PCB

Quality Standard and Availability:

The CER-10 PCB 62mil Taconic substrate adheres to the IPC-Class-2 quality standard, guaranteeing high-quality manufacturing processes, reliable performance, and durability. It is available for purchase worldwide, allowing customers from various regions to benefit from its exceptional features and reliability.

Typical Applications:

The CER-10 high frequency PCB finds wide-ranging applications across industries where high-performance and reliable circuitry is required. Some typical applications include:

1. Power Amplifiers: CER-10's exceptional electrical properties and thermal stability make it an ideal choice for power amplifiers, ensuring efficient signal amplification and minimizing signal distortion.

2. Filters and Couplers: The stable DK and low loss tangent of CER-10 make it suitable for filters and couplers, enabling precise signal filtering and efficient energy transfer.

3. Passive Components: CER-10 provides a reliable platform for the integration of passive components such as resistors, capacitors, and inductors, ensuring optimal performance and longevity.

In conclusion, the Taconic CER-10 PCB offers a combination of exceptional electrical properties, thermal stability, and reliability. With its low moisture absorption, interlaminar bond strength, and dimensional stability, it provides peace of mind for designers and engineers seeking high-performance circuitry. Whether it's for power amplifiers, filters, or passive components, the CER-10 PCB 62mil delivers the performance and reliability required for demanding applications. Choose CER-10 and unlock the full potential of your electronic designs.
