How Can RT/duroid 6006 High-Frequency PCBs Enhance Your RF and Microwave Designs?

In the demanding field of high-frequency electronics, the selection of an appropriate printed circuit board (PCB) substrate is paramount to achieving optimal performance and reliability. Rogers Corporation’s RT/duroid 6006 emerges as a superior ceramic-PTFE composite, specifically engineered to meet the rigorous requirements of advanced microwave and RF circuit applications. This RT/duroid 6006 material is distinguished by its exceptional dielectric properties, which facilitate the design of more compact and efficient circuits without compromising on signal integrity. Ideal for operations within the X-band and lower frequency ranges, Rogers 6006 PCB provides designers with a stable and low-loss foundation that is critical for high-performance applications.

Key Characteristics and Advantages

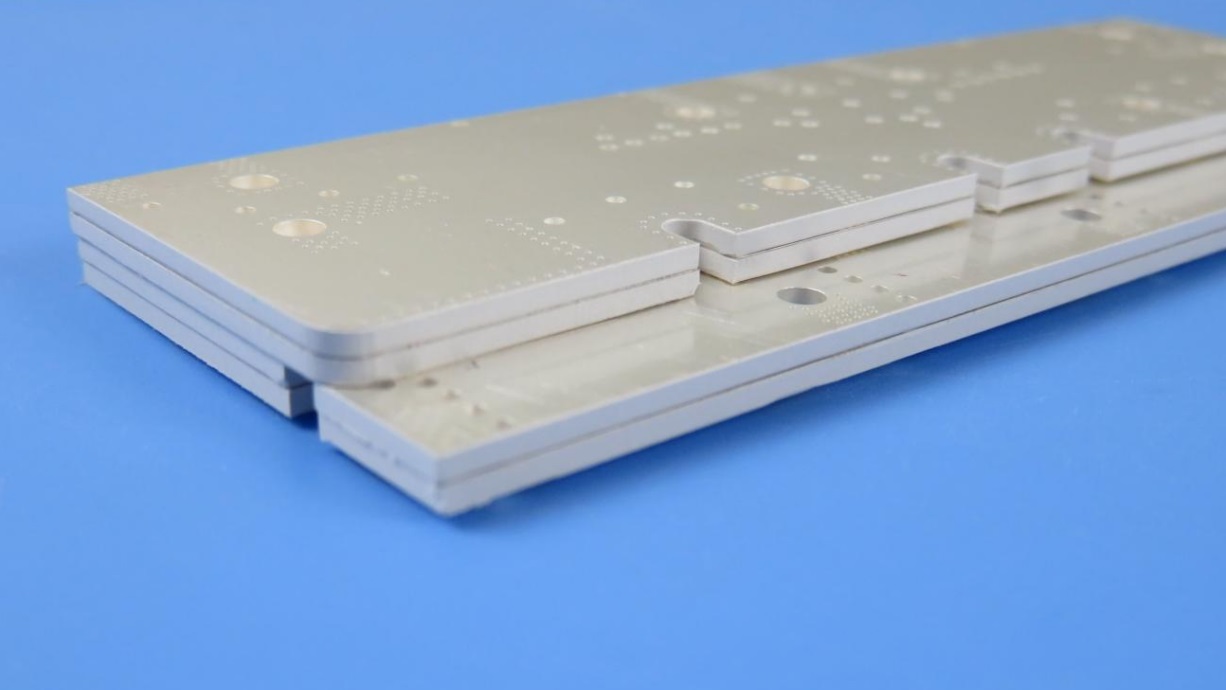

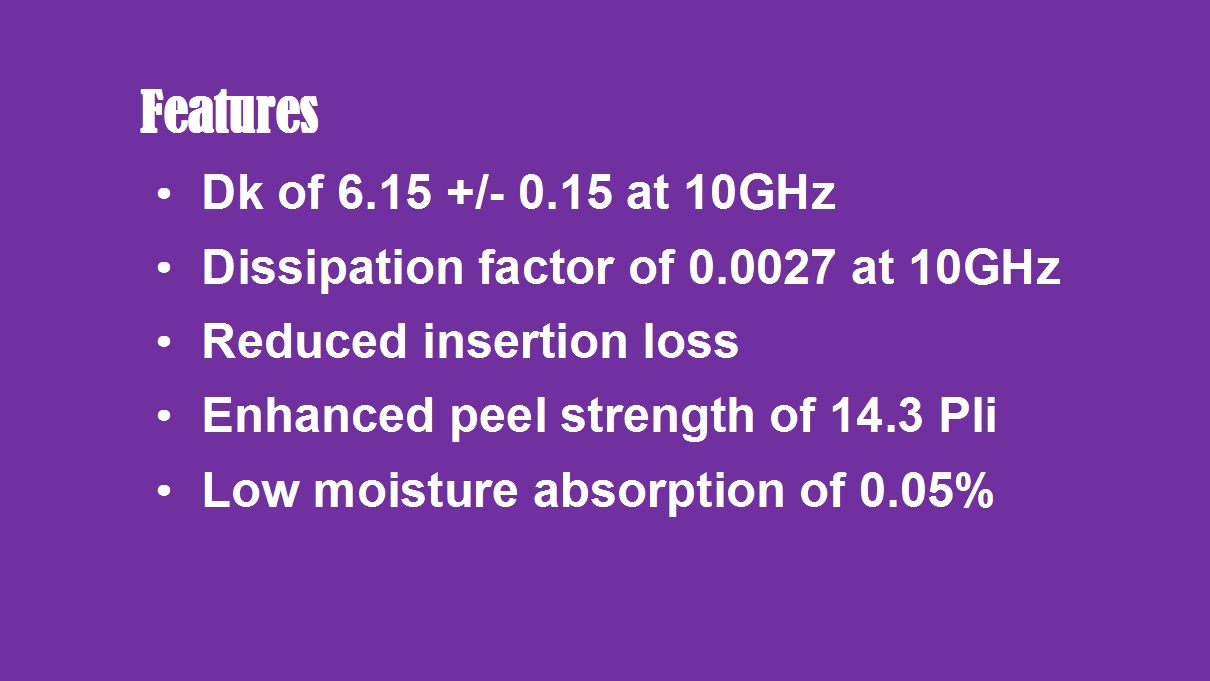

The exceptional performance of Rogers RT/duroid 6006 is anchored in its well-defined material properties. It boasts a stable dielectric constant (Dk) of 6.15 with a tight tolerance of±0.15, ensuring consistent electrical behavior across production batches and different operating conditions. Coupled with an ultra-low dissipation factor of just 0.0027 at 10 GHz, this laminate significantly minimizes signal attenuation, making it an excellent candidate for high-speed and high-frequency designs where signal loss is a major concern.

To further enhance design flexibility and performance, RT/duroid 6006 laminates are available clad with various copper options. Designers can select from standard or reverse-treated electrodeposited copper foils, allowing for a tailored approach that prioritizes either minimal insertion loss for sensitive RF transmission or improved peel strength for mechanical durability in demanding environments.

Beyond its electrical merits, RT/duroid 6006 exhibits outstanding physical properties. Its very low rate of moisture absorption ensures stable performance even in variable humidity conditions, safeguarding the circuit’s operational integrity. Moreover, it supports the creation of highly reliable plated through-holes, which is a critical factor for constructing robust and durable multi-layer board assemblies.

Advanced Manufacturing Capabilities for RT/duroid 6006 PCBs

To fully leverage the advantages of this high-performance material, partnering with a manufacturer possessing extensive technical capabilities is essential. Our production facilities are equipped to handle RT/duroid 6006 PCBs with precision and expertise, offering a comprehensive suite of options to meet diverse and complex design requirements.

We specialize in fabricating PCBs across all configurations, including:

• Single Sided, Double Sided, and Multi-layer Boards
• Hybrid Constructions that combine different materials.

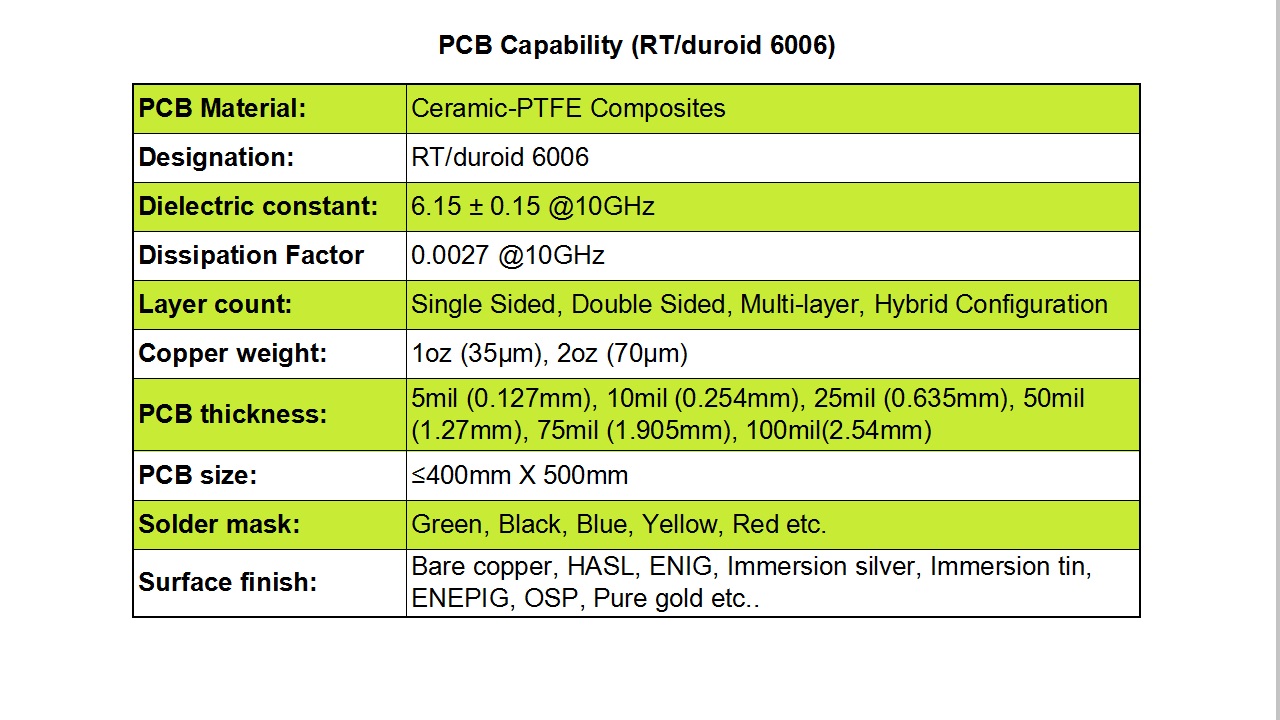

Our standard offerings include:

• Copper Weights: 1oz (35µm) or 2oz (70µm).
• Standard Thicknesses: 25 mils, 50 mils, and 75 mils.
• Custom Thicknesses: Available from 5 mils up to 200 mils in precise 5 mil increments.
• Maximum Board Size: Up to 400mm x 500mm.

Recognizing that both form and function matter, we provide a wide selection of solder mask colors—including Green, Black, Blue, Yellow, and Red—to suit aesthetic or branding needs.

Furthermore, our array of surface finish options ensures the right choice for solderability, shelf life, and performance:

• Bare Copper, HASL (Lead-Free), ENIG (Electroless Nickel Immersion Gold)
• Immersion Silver, Immersion Tin, ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold)
• OSP (Organic Solderability Preservative), and Pure Gold.

Diverse Field Applications

The unique combination of electrical and physical properties makes RT/duroid 6006 high frequency PCBs indispensable across a spectrum of high-technology industries. They are extensively utilized in:

• Patch Antennas and Satellite Communication Systems, where stable signal transmission is crucial.
• High-Power Amplifiers, benefiting from the material's low loss characteristics.
• Aircraft Collision Avoidance Systems and Ground Radar Warning Systems, where reliability and performance under stringent conditions are non-negotiable.

Conclusion

Rogers RT/duroid 6006 substrate represents a top-tier solution for engineers pushing the boundaries of high-frequency circuit design. Its controlled dielectric constant, minimal loss tangent, and excellent mechanical properties provide a reliable platform for creating advanced electronic systems. Coupled with our sophisticated manufacturing expertise, which offers unparalleled flexibility in layer count, thickness, and finish, your innovative designs are assured the highest quality foundation. For your next project requiring precision and performance in the RF and microwave domains, consider RT/duroid 6006 as your substrate of choice.
