The RT/duroid 6006 PCB is a cutting-edge solution designed for electronic and microwave circuit applications that demand exceptional performance and reliability.
Item NO.:
BIC-232-v283.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

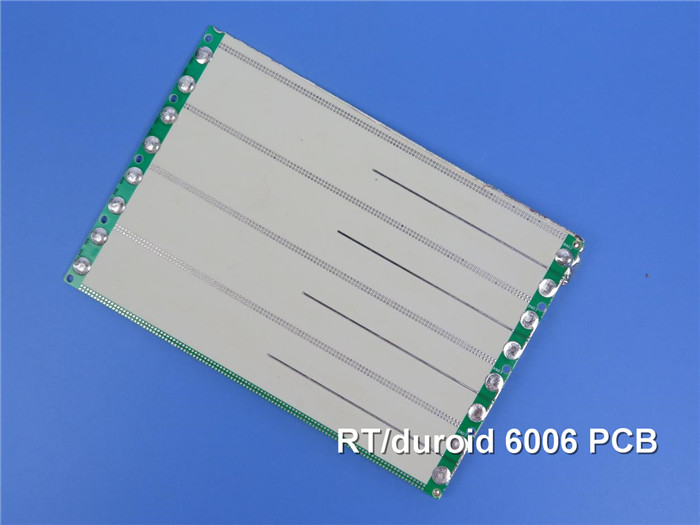

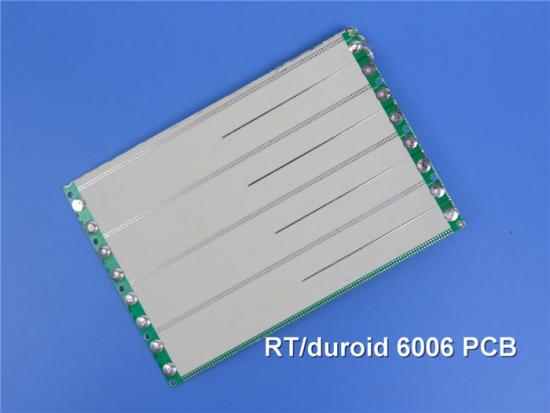

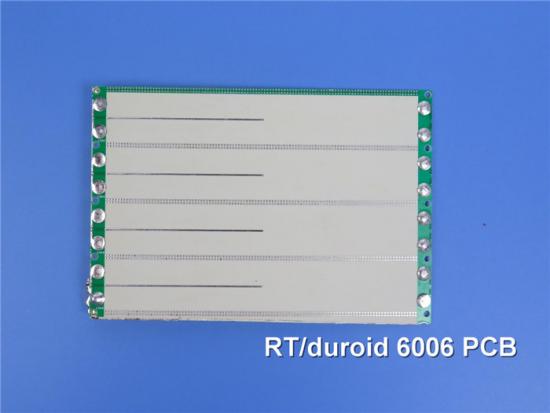

RT/duroid 6006 PCB 50mil 1.27mm Rogers 6006 High Frequency PCB
The RT/duroid 6006 PCB is a cutting-edge solution designed for electronic and microwave circuit applications that demand exceptional performance and reliability. This PCB utilizes Rogers RT/duroid 6006 laminates, which are ceramic-PTFE composites specifically engineered to offer a high dielectric constant for circuit size reduction and low loss characteristics, making them ideal for operations at X-band frequencies and below. Let's delve deeper into the features and specifications that make the Rogers 6006 PCB a top choice for advanced applications.
Key Features and Specifications:
The RT/duroid 6006 PCB boasts a range of features that set it apart from conventional circuit boards:
1. High Dielectric Constant:
The RT/duroid 6006 laminate offers a high dielectric constant of 6.15 +/- 0.15 at 10 GHz/23°C, enabling designers to achieve significant circuit size reduction without compromising performance.
2.Low Loss Characteristics:
With a dissipation factor of only 0.0027 at 10 GHz/23°C, this PCB ensures minimal signal loss, making it an excellent choice for high-frequency applications.
3.Thermal Stability:
The RT/duroid 6006 material exhibits thermal stability with a Td exceeding 500°C in Thermogravimetric Analysis (TGA), ensuring reliable performance under extreme operating conditions.
4.Low Moisture Absorption:
With a moisture absorption rate of just 0.05%, the RT/duroid 6006 PCB remains stable and reliable in humid environments.
5.CTE Control:
The PCB offers controlled Coefficient of Thermal Expansion (CTE) values in the X, Y, and Z axes, ensuring dimensional stability and reliability in diverse thermal environments.
6.Copper Cladding:
Clad with standard and reverse treated electrodeposited copper foil, the RT/duroid 6006 PCB ensures excellent electrical performance and signal integrity.
PCB Stackup and Construction Details:
The RT/duroid 6006 PCB is a 2-layer rigid PCB with the following stackup:
Copper Layer 1: 35 μm
RT/duroid 6006 Core: 1.27 mm (50mil)
Copper Layer 2: 35 μm
Additional Construction Details:
Construction Details |
Specifications |
Board Dimensions |
197mm x 154mm = 2 Types = 2PCS, +/- 0.15mm |
Minimum Trace/Space |
6/5 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
No |
Finished Board Thickness |
1.4mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Gold |
Top Silkscreen |
Black |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
Green |
Electrical Test |
100% used prior to shipment |
PCB Statistics:
PCB Statistics |
Values |
Components |
19 |
Total Pads |
72 |
Thru Hole Pads |
37 |
Top SMT Pads |
35 |
Bottom SMT Pads |
0 |
Vias |
38 |
Nets |
5 |
Artwork and Standards:
The Rogers 6006 printed circuit board comes with Gerber RS-274-X artwork and adheres to the IPC-Class-2 standard, ensuring quality and reliability in manufacturing.
Applications and Availability:
The 1.27mm RT/duroid 6006 PCB suitable for a wide range of applications, including:
1.Patch Antennas
2.Satellite Communications Systems
3.Power Amplifiers
4.Aircraft Collision Avoidance Systems
5.Ground Radar Warning Systems
With worldwide availability, this high-performance PCB is ready to meet the demands of cutting-edge electronics and communication systems.
In conclusion, the RT/duroid 6006 PCB 50mil offers unparalleled performance, reliability, and flexibility for advanced electronic and microwave applications. Its advanced features, robust construction, and stringent quality control make it a top choice for designers and engineers seeking exceptional results in their projects. Upgrade your circuits with the RT/duroid 6006 high frequency PCB and experience the difference in performance and reliability.
