Seeking a High-Frequency PCB Laminate with Superior Electrical Isotropy? Explore CuClad 217.

Introduction

In the demanding world of high-frequency electronics, the choice of printed circuit board (PCB) substrate is a critical determinant of overall system performance. Designers and engineers constantly seek materials that offer not just low signal loss, but also exceptional consistency and reliability under various operating conditions. If your projects involve radar systems, advanced communication technologies, or sensitive microwave components, the quest for a laminate that delivers uniform electrical properties in all directions within the board's plane is paramount. This is where the unique construction and engineered properties of Rogers CuClad 217 high-frequency laminate come into focus, offering a compelling solution for cutting-edge applications.

Unveiling the Core Technology: What is CuClad 217?

Rogers Corporation engineered CuClad 217 laminates as a composite material specifically to address the challenges of high-frequency circuit design. The foundation of this material is a sophisticated combination of woven fiberglass and precisely controlled Polytetrafluoroethylene (PTFE). The key differentiator lies in its cross-plied construction. This deliberate architectural approach ensures both electrical and mechanical isotropy within the plane of the board. In practical terms, this means that the material's properties, such as its dielectric constant (Dk), remain consistent regardless of the signal's direction of travel across the substrate. This isotropy eliminates performance variations and simplifies the design process, leading to more predictable and reliable outcomes.

A significant advantage of the CuClad 217 formulation is its low fiberglass-to-PTFE ratio. This specific composition directly results in the lowest dielectric constant and dissipation factor (Df) available among all fiberglass-reinforced PTFE laminates on the market. With a remarkably low Dk of 2.17 (or 2.20, depending on the specific variant) and an ultra-low dissipation factor of 0.0009 at 10 GHz, CuClad 217 PCB enables faster signal propagation and significantly higher signal-to-noise ratios. These characteristics are essential for minimizing insertion loss and maintaining signal integrity in high-speed, high-frequency applications.

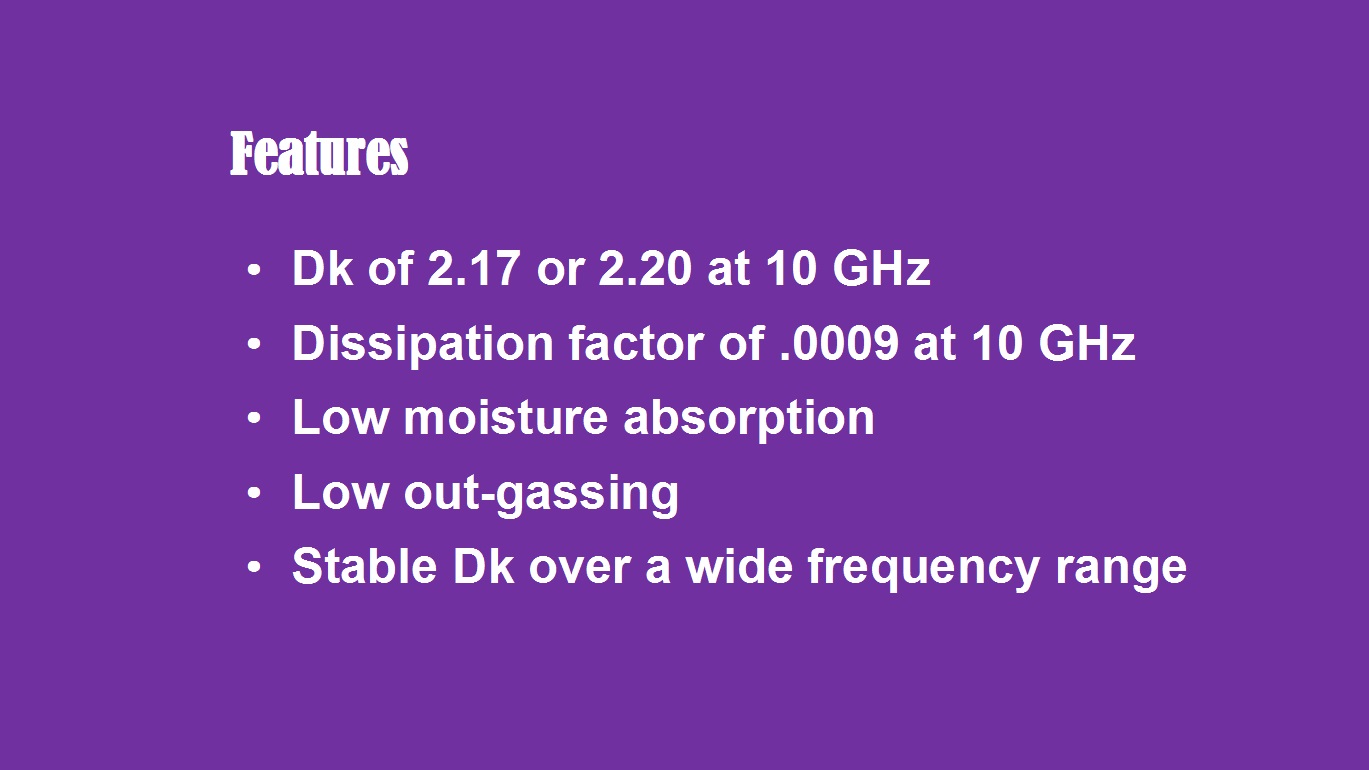

Key Features and Tangible Benefits for Your Designs

The exceptional electrical properties of CuClad 217 translate directly into concrete benefits for PCB designers:

1) Wider Line Widths for Manufacturing Ease: The stable, low dielectric constant allows for wider conductor lines to achieve a target impedance. This relaxes manufacturing tolerances, potentially improving yield and reducing production costs.

2) Minimized Circuit Losses: The ultra-low dissipation factor is a direct measure of efficiency, ensuring that minimal signal energy is lost as heat. This is crucial for enhancing the performance and range of power-sensitive applications like Low-Noise Amplifiers (LNAs) and filters.

3) Environmental Stability: CuClad 217 exhibits low moisture absorption and minimal out-gassing. This characteristic guarantees excellent dimensional stability and long-term reliability, even when the end product is deployed in humid or variable environmental conditions. The dielectric constant remains stable across a wide frequency range, providing consistent performance from design through to real-world operation.

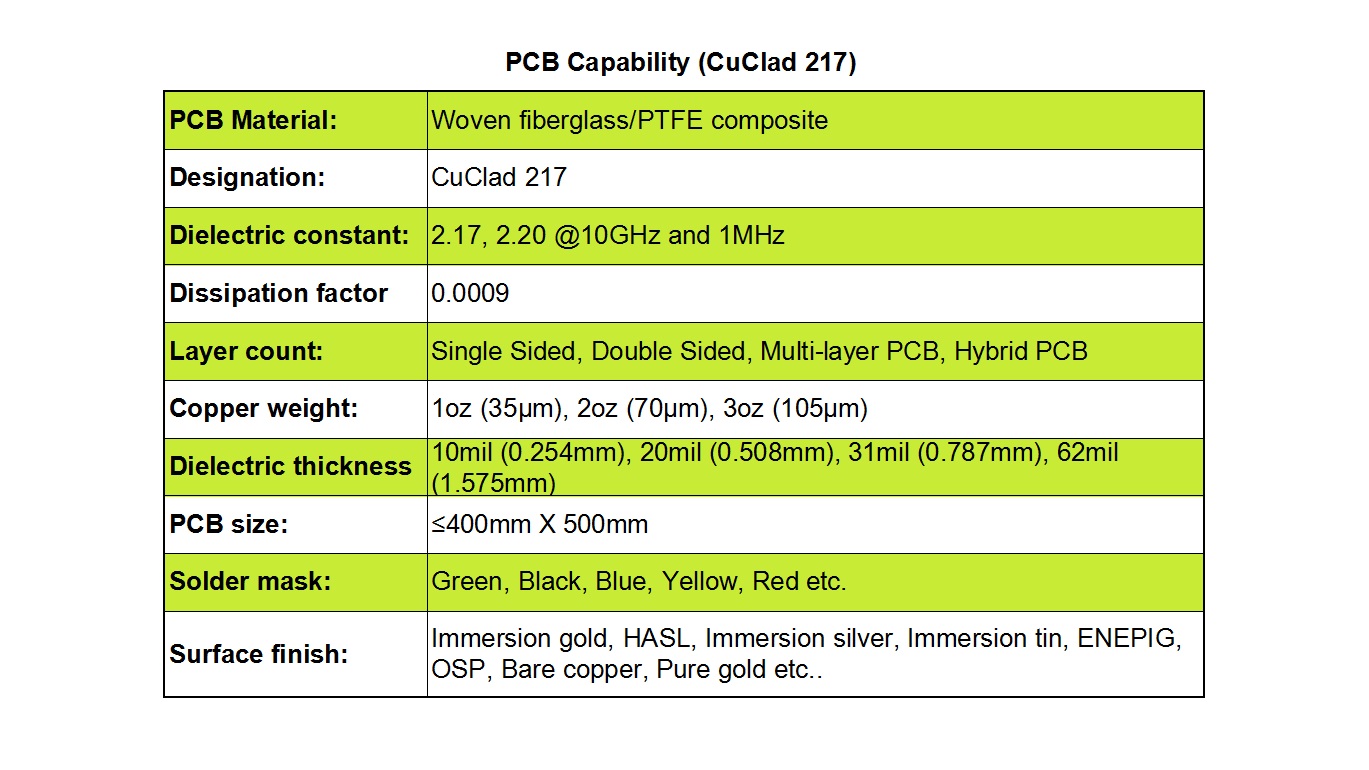

Our Advanced PCB Manufacturing Capabilities with CuClad 217

As your trusted PCB supplier, we possess the expertise and advanced manufacturing capabilities to fully leverage the benefits of CuClad 217 PCB material. We can provide you with a comprehensive range of board configurations to meet your specific requirements:

• Board Types: Single-sided, double-sided, multi-layer, and hybrid PCBs.
• Copper Weight Options: 1oz (35µm), 2oz (70µm), and 3oz (105µm).
• Dielectric Thicknesses: Various options including 10mil (0.254mm), 20mil (0.508mm), 31mil (0.787mm), and 62mil (1.575mm).
• Board Sizes: We can accommodate PCB sizes up to 400mm x 500mm.
• Aesthetic and Protective Finishes: Choose from a range of solder mask colors (green, black, blue, yellow, red, etc.) and surface finishes including Immersion Gold (ENIG), HASL, Immersion Silver, Immersion Tin, ENEPIG, OSP, and bare copper.

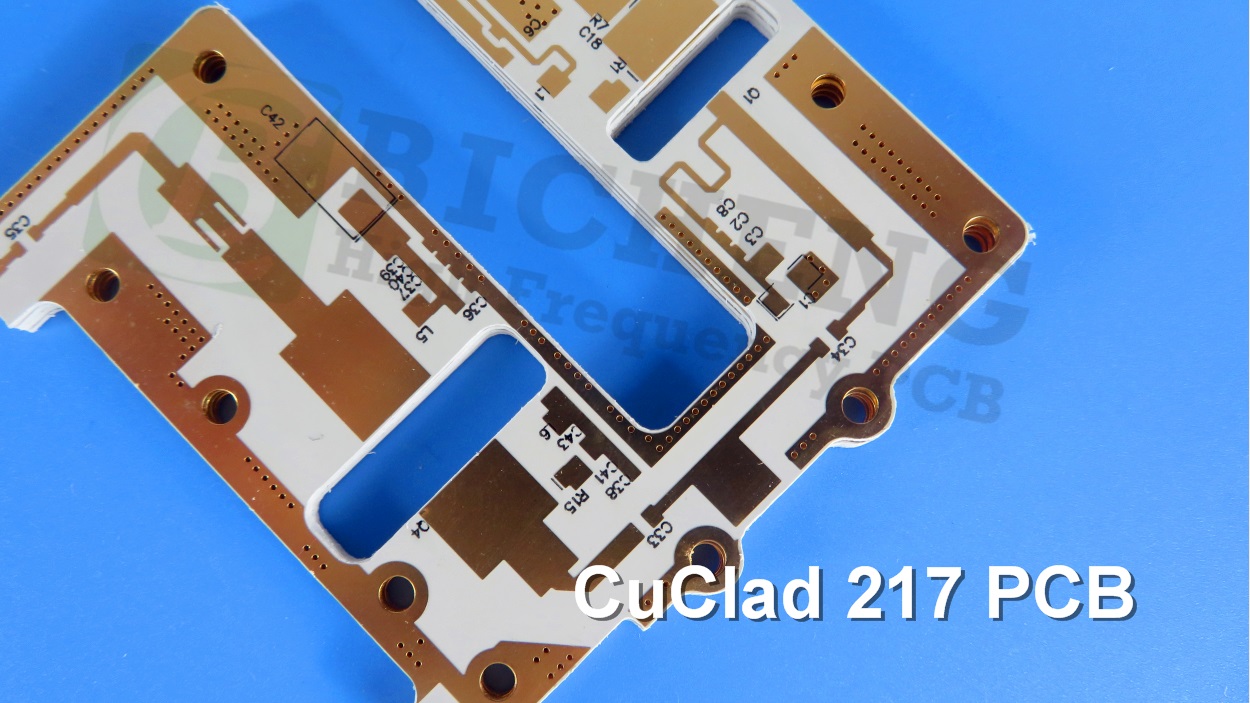

Ideal Applications for CuClad 217 PCBs

Due to its superior high-frequency performance, CuClad 217 Rogers PCB is the material of choice for a range of critical electronic systems. It is commonly and effectively used in:

1) Defense and Aerospace Electronics: Radars, Electronic Countermeasures (ECM), and Electronic Support Measures (ESM).

2) Telecommunications and Microwave Components: Including Low-Noise Amplifiers (LNAs), filters, couplers, and other related devices where signal purity and low loss are non-negotiable.

Conclusion

For engineers and designers pushing the boundaries of high-frequency technology, Rogers CuClad 217 PCB laminate offers an unparalleled combination of electrical isotropy, low loss, and environmental stability. Its unique properties enable the creation of high-performance, reliable PCBs for the most demanding applications. If you are seeking a laminate that provides consistent performance and design flexibility, exploring CuClad 217 is a strategic next step.

Contact us today to discuss how we can manufacture high-quality PCBs using CuClad 217 to meet your specific project needs.
