Rogers RO3003 High Frequency PCB 2 Layer 10mil DK3.0 DF 0.001 PCB

Rogers RO3003 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices.

  • Item NO.:

    BIC-037-v7.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB


The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3003 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.

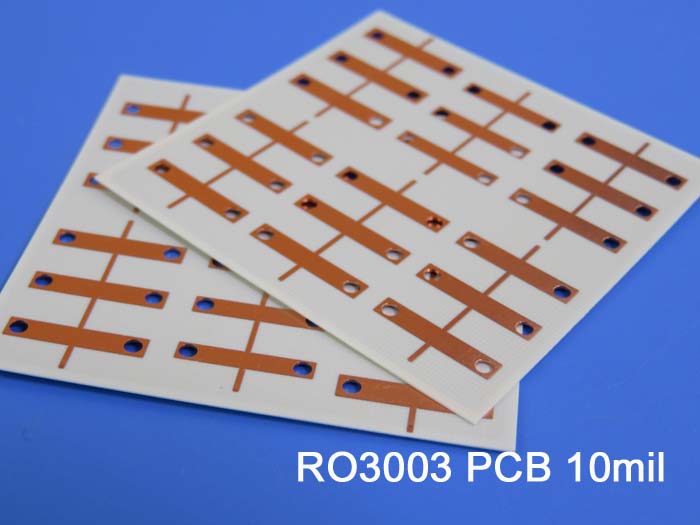

RO3003 PCB 10mil RO3003 PCB 10mil


Typical applications:


1) Automotive radar

2) Cellular telecommunications systems

3) Datalink on cable systems

4) Direct broadcast satellites

5) Global positioning satellite antennas

6) Patch antenna for wireless communications

7) Power amplifiers and antennas

8) Power backplanes

9) Remote meter readers


PCB Specifications:


PCB SIZE 100 x 100mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components NO
Through Hole Components NO
LAYER STACKUP copper ------- 35 um(1 oz)
RO3003 0.254mm
copper ------- 35 um(1 oz)
TECHNOLOGY
Minimum Trace and Space: 5mil / 5mil
Minimum / Maximum Holes: 0.3mm / 0.8mm
Number of Different Holes: N/A
Number of Drill Holes: N/A
Number of Milled Slots: N/A
Number of Internal Cutouts: N/A
Impedance Control: N/A
Number of Gold finger: N/A
BOARD MATERIAL
Glass Epoxy:  RO3003 0.254mm
Final foil external:  1oz
Final foil internal:  N/A
Final height of PCB:  0.3 mm ±0.1
PLATING AND COATING
Surface Finish N/A
Solder Mask Apply To:  N/A
Solder Mask Color:  N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo:  N/A
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST N/A
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Data Sheet of Rogers 3003 (RO3003):


 RO3003 Typical Value
Property RO3003 Direction Units Condition Test Method
Dielectric Constant,εProcess 3.0±0.04 Z 10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3 Z 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.001 Z 10 GHz/23℃ IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -3 Z ppm/℃ 10 GHz -50℃to 150℃ IPC-TM-650 2.5.5.5
Dimensional Stability 0.06
0.07
X
Y
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 107 MΩ.cm COND A IPC 2.5.17.1
Surface Resistivity 107 COND A IPC 2.5.17.1
Tensile Modulus 930
823
X
Y
MPa 23℃ ASTM D 638
Moisture Absorption 0.04 % D48/50 IPC-TM-650 2.6.2.1
Specific Heat 0.9 j/g/k Calculated
Thermal Conductivity 0.5 W/M/K 50℃ ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288℃)
17
16
25
X
Y
Z
ppm/℃ 23℃/50% RH IPC-TM-650 2.4.4.1
Td 500 ℃TGA ASTM D 3850
Density 2.1 gm/cm3 23℃ ASTM D 792
Copper Peel Stength 12.7 Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0 UL 94
Lead-free Process Compatible Yes
