What Are the Key Features and Benefits of RT/duroid 6006 PCB?

Are you in need of a high-performance PCB for your electronic and microwave circuit applications? Look no further than the RT/duroid 6006 PCB 10mil, a cutting-edge solution that combines ceramic-PTFE composites with exceptional dielectric properties. This comprehensive product description will explore the features, benefits, construction details, and typical applications of the RT/duroid 6006 PCB.

Introduction of RT/duroid 6006:

Rogers RT/duroid 6006 laminates are specifically designed for electronic and microwave circuit applications that demand a high dielectric constant (Dk). These laminates excel in providing superior dielectric constants, enabling significant circuit size reduction. Ideal for operating at frequencies within the X-band or below,Rogers 6006 ensures low loss performance. Additionally, their tight Dk and thickness control deliver consistent and repeatable circuit performance.

Features:

Equipped with Rogers RT/duroid 6006 ceramic-PTFE composites, thisRogers 10mil PCB offers a host of impressive features:

1)Dielectric constant (Dk) of 6.15 +/- 0.15 at 10 GHz/23°C:

The high Dk of the RT/duroid 6006 allows for a substantial reduction in circuit size.

2)Dissipation factor of 0.0027 at 10 GHz/23°C:

With low loss characteristics, this PCB is specifically optimized for frequencies within the X-band or lower.

3)Td > 500°C TGA:

With excellent thermal stability, the RT/duroid 6006 can withstand high-temperature environments during manufacturing processes and applications.

4)Moisture Absorption 0.05%:

The PCB demonstrates minimal moisture absorption, ensuring long-term reliability in various environments.

5)Controlled Thermal Expansion:

With a CTE of 47 ppm/°C in the X-axis, 34 ppm/°C in the Y-axis, and 117 ppm/°C in the Z-axis, the RT/duroid 6006 provides reliable dimensional stability.

6)Clad with standard and reverse treated electrodeposited copper foil:

The PCB is clad with high-quality copper foil, ensuring excellent electrical conductivity.

Benefits:

By utilizing the RT/duroid 6006 PCB 10mil, you can enjoy a range of benefits:

1)High dielectric constant for circuit size reduction:

The high Dk allows for compact circuit designs, saving space and enabling streamlined product development.

2)Low loss for optimal performance:

The low loss characteristics make this PCB ideal for applications within the X-band or below, ensuring efficient signal transmission and reduced signal degradation.

3)Tightεr and thickness control for repeatable circuit performance:

With precise control over dielectric constant and thickness, this PCB guarantees consistent and reliable circuit performance.

4)Low moisture absorption:

The minimal moisture absorption ensures the PCB's long-term reliability, especially in humid or harsh environments.

5)Reliable plated through-holes in multi-layer boards:

The RT/duroid 6006 PCB 10mil provides reliable vias and through-hole connections, ensuring robust multi-layer circuit constructions.

PCB Construction Details:

The RT/duroid 6006 PCB 10mil features a 2-Layer 10mil Circuit Board PCB rigid construction with the following specifications:

Board dimensions: 161.42mm x 63.57mm, available in four types.

Minimum Trace/Space: 4/6 mils, providing flexibility for intricate circuit designs.

Minimum Hole Size: 0.4mm, enabling precise component placement.

Finished board thickness: 0.4mm, ensuring a slim and lightweight design.

Finished Cu weight: 1 oz (1.4 mils) outer layers, delivering excellent conductivity.

Via plating thickness: 20μm, guaranteeing reliable interconnection between layers.

Surface finish: Immersion Gold, providing a durable and corrosion-resistant surface.

Top Silkscreen: White, aiding component identification and assembly.

Bottom Silkscreen: No, offering a clean and uncluttered board design.

Top Solder Mask: No, allowing for customization or selective solder masking.

Bottom Solder Mask: No, providing flexibility for specific soldering requirements.

100% Electrical test used prior to shipment: Each PCB undergoes rigorous electrical testing to ensure quality and reliability.

Artwork Supplied

Gerber RS-274-X, a widely accepted standard format for Rogers 6006 PCB Immersion Gold PCB manufacturing and design.

Accepted standard

IPC-Class-2, complying with industry standards for optimal quality and performance.

Availability

The Rogers 6006 PCB Prototype is available worldwide, ensuring global accessibility and quick distribution.

Typical Applications

The Rogers 6006 PCB Printed Circuit 10mil is well-suited for a variety of applications, including:

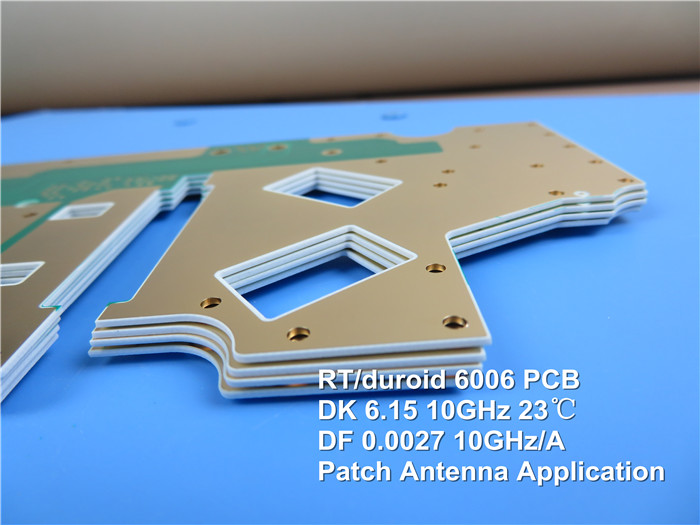

1)Patch Antennas:

Benefit from the high dielectric constant and low loss properties for superior antenna performance.

2)Satellite Communications Systems:

Ensure reliable and efficient signal transmission in satellite communication applications.

3)Power Amplifiers:

Achieve exceptional performance and power handling capabilities in power amplifier circuits.

4)Aircraft Collision Avoidance Systems:

Enable safe and effective collision avoidance systems in aircraft, relying on the PCB's high-performance characteristics.

5)Ground Radar Warning Systems:

Enhance radar warning systems used in ground-based applications with theRogers 6006 PCB's excellent dielectric properties.

Conclusion

In conclusion, the Rogers 6006 High Frequency PCB 10mil offers exceptional dielectric performance, low loss characteristics, and reliable construction to meet the demands of electronic and microwave circuit applications. With its compact design, precise control over dielectric properties, and multiple applications, this Rogers PCB is a reliable choice for a range of industries. Experience high-quality signal transmission and reduce circuit size with the RT/duroid 6006 PCB 10mil.
