2 layer 1.524mm 60mil TLX-8 Material High Frequency Rigid PCB for radar aerospace

TLX-8 PCB is a high-performance, multifunctional, and reliable circuit board suitable for various applications.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

2 layer 1.524mm 60mil TLX-8 Material High Frequency Rigid PCB for radar aerospace


Introducing our newly shipped PCB, the 60mil TLX-8 PTFE Glass PCB. Designed for high-performance applications, this lead-free PCB offers reliable operation in a wide temperature range of -40℃ to +85℃. With its exceptional construction and advanced materials, this PCB is perfect for a variety of industries including automotive, industrial, and consumer electronics.


60mil TLX-8 PTFE Glass PCB

The TLX-8 PTFE Glass PCB features a 2-layer rigid stackup, providing excellent stability and durability. It consists of a finished copper layer of 35um, TLX-8 dielectric with a thickness of 60 mil (1.524mm), and another finished copper layer of 35um. This robust construction ensures optimal performance in demanding applications.


Construction details:

Construction Details


Board Dimensions

137mm x 70 mm=1PCS, +/- 0.15mm

Minimum Trace/Space

8/7 mils

Minimum Hole Size


Blind/Buried Vias


Finished Board Thickness


Finished Cu Weight

1 oz (1.4 mils) all layers

Via Plating Thickness

1 mil

Surface Finish

Hot Air Soldering Level (HASL)

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


Silkscreen on Solder Pads


Electrical Test



PCB Statistics:

PCB Statistics




Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads







Electrical Performance:

  • Dielectric Constant: 2.55
  • Loss Tangent: 0.0025
  • Surface Resistivity: 10^17 ohms
  • Volume Resistivity: 10^18 ohm-cm
  • Breakdown Voltage (Parallel): ≥ 23KV
  • Breakdown Voltage (Perpendicular): ≥ 18KV


Thermal Performance:

  • Thermal Conductivity: 0.98 W/mK
  • Tg (Glass Transition Temperature): 280℃
  • Td (Decomposition Temperature): ≥ 375℃
  • Coefficient of Thermal Expansion (CTE): 11 ppm/℃

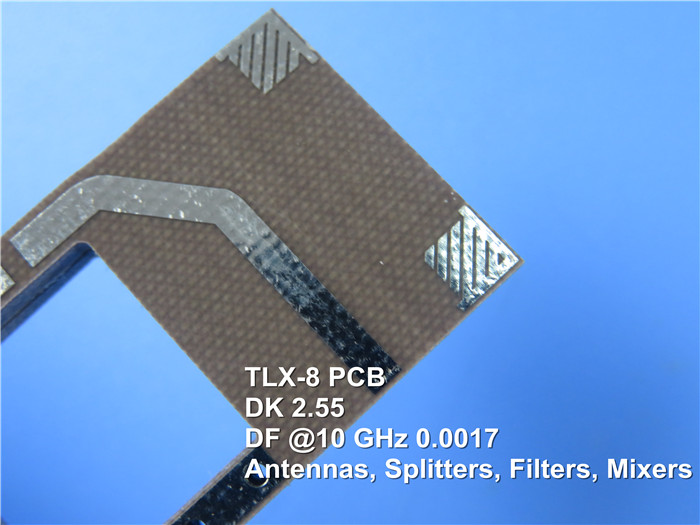

 60mil TLX-8 rigid PCB


Application Examples:

The 60mil TLX-8 rigid PCB has been successfully used in a wide range of applications, including high-frequency communication systems, radar systems, aerospace and defense equipment, and medical devices. Its superior electrical performance and reliability make it an ideal choice for demanding electronic applications.


The TLX-8 material PCB is compatible with Gerber RS-274-X artwork files, simplifying the manufacturing process. It meets the IPC-Class-2 standard, guaranteeing high-quality manufacturing and adherence to industry standards.


We are proud to offer our 60mil TLX-8 substrate PCB worldwide. With our global service area, we can cater to your PCB needs no matter where you are located. Trust in our expertise and commitment to superior quality as we provide cutting-edge solutions for your high-performance electronic applications.


For more information about the TLX-8 PCB and our other high-quality PCBs, please contact our sales team at We are dedicated to delivering top-notch products and exceptional customer service to meet all your electronic needs.
