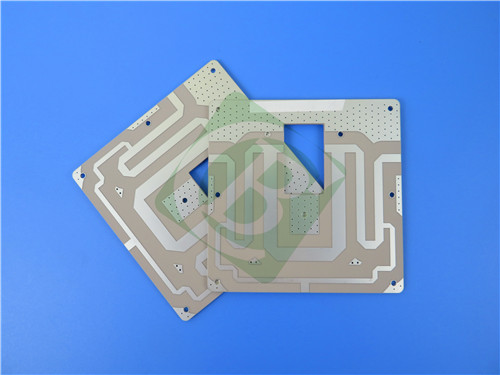

Taconic RF-35 PCB 2-layer 10mil 0.254mm Immersion silver High Frequency Board

TaconicRF-35 PCB 2-layer 10mil0.254mmImmersion silver High Frequency Board

Product Overview

The RF-35 PCB is a high-frequency, double-sided printed circuit board designed for microwave and RF applications, offering exceptional electrical performance, low signal loss, and cost-effective manufacturing. Built on Taconic RF-35 organic-ceramic laminate, this 10mil RF-35 PCB is optimized for commercial wireless, power amplifiers, filters, and passive components, ensuring reliable signal integrity and thermal stability.

With a 2-layer construction, 10mil core thickness, and immersion silver surface finish, this RF-35 Taconic PCB Laminates provides low dissipation factor (0.0018 @ 1.9GHz), excellent peel strength, and ultra-low moisture absorption, making it ideal for high-frequency and high-reliability applications.

PCB Construction Details

Below is a detailed breakdown of the PCB’s construction, including materials, dimensions, and tolerances.

PCB Stackup

The 2-layer RF-35 PCB features a simple yet optimized stackup for high-frequency signal transmission.

PCB Statistics

A breakdown of the Taconic PCB’s component and connectivity details.

RF-35 Material Introduce

RF-35 is an organic-ceramic laminate from Taconic’s ORCER family, combining woven glass reinforcement with PTFE-based technology. It is engineered for low-cost, high-volume RF/microwave applications, offering exceptional peel strength, ultra-low moisture absorption, and minimal signal loss.

Key Features of RF-35

• Dielectric Constant (@1.9GHz): 3.5
• Dissipation Factor (@1.9GHz): 0.0018
• Dielectric Breakdown: 41 kV
• CTE (X/Y/Z): 19/24/64 ppm/°C
• Flammability Rating: UL-94 V0

Benefits of RF-35 PCB

✔Low Cost–Optimized for high-volume commercial RF applications.

✔Excellent Peel Strength–Ensures durability during assembly and rework.

✔Ultra-Low Dissipation Factor–Minimizes signal loss in high-frequency circuits.

✔Low Moisture Absorption–Enhances reliability in humid environments.

✔Smooth Surface Finish–Improves etching precision and solderability.

Applications of RF-35 PCB

This Taconic RF PCB is ideal for:

 -Power Amplifiers

-Filters & Couplers

-Passive Components

Quality & Compliance

• Artwork Format: Gerber RS-274-X
• Quality Standard: IPC-Class-2
• Global Availability: Shipped worldwide

Conclusion

The RF-35 2-layer 10mil PCB is a high-performance, cost-effective solution for RF and microwave applications, leveraging Taconic’s advanced laminate technology. With ultra-low loss, strong thermal stability, and immersion silver finish, this Taconic High Frequency PCB ensures reliable signal integrity in demanding environments. Whether for power amplifiers, filters, or passive components, this board delivers superior electrical performance and manufacturability.

For high-frequency designs requiring precision, durability, and affordability, the RF-35 Taconic RF PCB Circuit Board stands out as an excellent choice.
