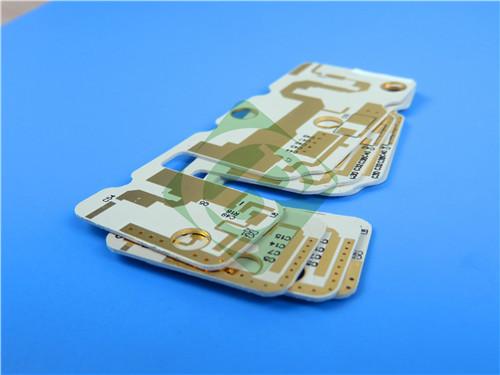

Taconic TRF-45 PCB Double-Sided 32mil 0.813mm Thick ENIG High Frequency Board

Taconic TRF-45 PCB Double-Sided 32mil 0.813mm Thick ENIG High Frequency Board

Product Overview

The TRF-45 PCB is a high-performance 2-layer rigid printed circuit board designed for RF, microwave, and high-frequency applications. Manufactured using TRF-45 Taconic laminate, this PCB offers exceptional electrical performance, thermal stability, and reliability, making it ideal for demanding applications such as satellite communications, RFID antennas, and GPS systems.

With alow-loss ceramic-filled PTFE PCB substrate, this TRF-45 RF PCB ensures minimal signal degradation, stable dielectric properties, and excellent thermal management. The ENIG (Electroless Nickel Immersion Gold) surface finish enhances solderability and corrosion resistance, while the 1oz copper layers provide optimal conductivity.

PCB Construction Details

Below is a detailed summary of the 32mil TRF-45 PCB’s construction, including material specifications, dimensional tolerances, and manufacturing standards.

PCB Stackup

The stackup structure of the Taconic TRF-45 PCB is optimized for signal integrity and thermal performance. Below is the layer-by-layer breakdown:

PCB Statistics

The TRF-45 high frequency PCB is designed for compact RF applications, with a low component count and optimized pad/via layout for high-frequency signal integrity.

TRF-45 Laminate Material Introduction

The TRF-45 substrate is a high-frequency, low-loss material developed by Taconic Advanced Dielectric Division. It combines woven-glass reinforcement with ceramic-filled PTFE, ensuring excellent dimensional stability, thermal performance, and signal integrity.

Key Features of TRF-45 Material

The TRF-45 laminate is a ceramic-filled PTFE (Polytetrafluoroethylene) composite with woven glass reinforcement, offering:

• Low-loss signal transmission (Dk = 4.5±0.15 at 10GHz)
• Ultra-low dissipation factor (Df = 0.0035) for minimal signal degradation
• Excellent thermal stability (CTE: X/Y=9 ppm/°C, Z=40 ppm/°C)
• Moisture absorption of only 0.06%, ensuring reliability in humid environments
• Thermal conductivity of 0.43 W/mK for efficient heat dissipation
• UL 94-V0 flammability rating for safety compliance

Typical Applications

Due to its high-frequency performance and thermal stability, the TRF-45 Taconic Immersion Gold PCB is widely used in:

✔Satellite & Radio Communication Antennas

✔RFID & NFC Antennas

✔GPS & GNSS Systems

✔Microwave & Millimeter-Wave Circuits

✔5G & IoT Wireless Devices

✔Aerospace & Defense Electronics

Manufacturing & Quality Assurance

• Artwork Format: Gerber RS-274-X
• Quality Standard: IPC-Class-2
• Electrical Testing: 100% tested prior to shipment
• Availability: Worldwide

Conclusion

The TRF-45 PCB 2-Layer 32mil Thick is an exceptional choice for RF and microwave applications, combining Taconic’s advanced laminate technology with high-precision PCB manufacturing. Whether for satellite communications, RFID, or 5G devices, this Taconic RF PCB Circuit Board delivers reliable performance, durability, and signal integrity.

For custom requirements or bulk orders, contact our sales team for further assistance!
