With meticulous craftsmanship, superior material properties, and strict adherence to quality standards, this High-Density Interconnect HDI PCB guarantees optimal performance, reliability, and longevity for your cutting-edge applications.
Item NO.:
BIC-339-v418.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days
8-Layer on RO4350B Material RO4450F Bondply HDI RF PCB with1.6mm Thick ENEPIG Surface Finish
In the ever-evolving landscape of technology and innovation, the need for reliable and high-performance printed circuit boards (PCBs) is paramount. Introducing our cutting-edge 8-layer High-Density Interconnect HDI RF PCB, meticulously crafted with precision using RO4350B core material and RO4450F bondply. This advanced PCB promises exceptional electrical performance and reliability tailored to meet the demands of modern RF applications across various industries such as telecommunications, automotive, and satellite communications.
PCB Construction Details
|
Parameter |
Specification |
|
Base Material |
Rogers RO4350B (Core) + RO4450F (Bondply) |
|
Layer Count |
8-Layer HDI (High-Density Interconnect) |
|
Board Dimensions |
96.4 mm × 163.9 mm (±0.15mm tolerance) |
|
Finished Thickness |
1.8 mm |
|
Copper Weight |
Outer Layers: 1oz (1.4 mils) / Inner Layers: 1oz (1.4 mils) & 0.5oz (0.7 mils) |
|
Minimum Trace/Space |
4/6 mils |
|
Minimum Hole Size |
0.4mm (mechanical drill) |
|
Blind/Buried Vias |
GTL-L7, L3-GBL, GTL-L2, L7-GBL, GTL-L3, GTL-L4, GTL-L5, L5-GBL, L4-GBL, GTL-L6, L6-GBL, L2-GBL |
|
Via Plating Thickness |
20 μm |
|
Surface Finish |
Electroless Nickel Immersion Gold (ENIG) |
|
Solder Mask |
Top/Bottom: Green |
|
Silkscreen |
Top/Bottom: White |
|
Via Treatment |
All vias resin-filled and capped |
|
Electrical Testing |
100% tested prior to shipment |
|
Impedance Control |
50 Ω (controlled on multiple layers) |

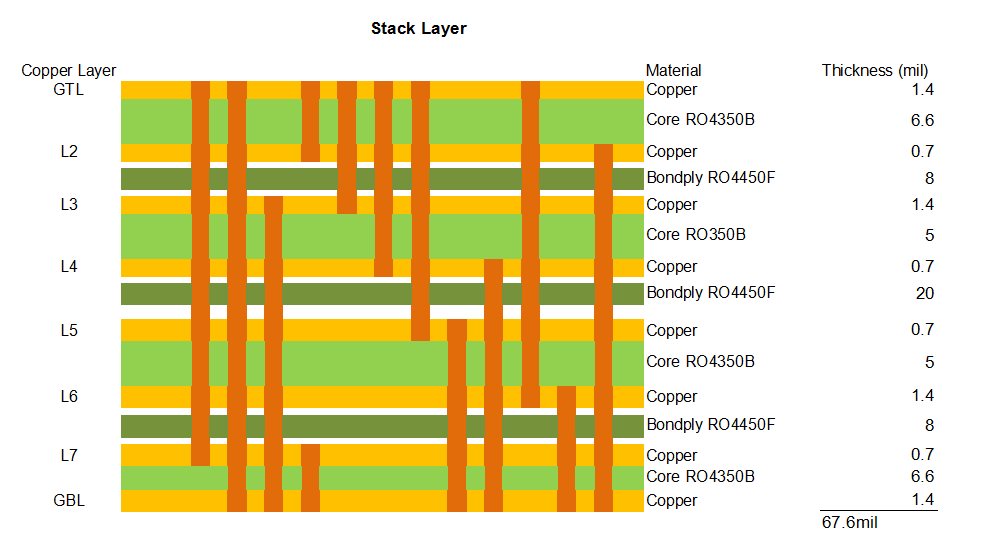

PCB Stackup Details
This 8-layer HDI RF PCB features a mixed dielectric construction with Rogers RO4350B cores and RO4450F bondply for optimal RF performance:
|
Layer |
Material |
Thickness |
Copper Weight |
|
Top Layer (L1) |
17μm + plating |
- |
1oz (1.4 mils) |
|
Core |
Rogers RO4350B |
0.168mm (6.6 mils) |
- |
|
L2 |
17μm |
- |
1oz (1.4 mils) |
|
Bondply |
RO4450F |
8 mils |
- |
|
L3 |
35μm |
- |
1oz (1.4 mils) |
|
Core |
Rogers RO4350B |
0.127mm (5 mils) |
- |
|
L4 |
17μm |
- |
0.5oz (0.7 mils) |
|
Bondply |
RO4450F |
20 mils |
- |
|
L5 |
17μm |
- |
0.5oz (0.7 mils) |
|
Core |
Rogers RO4350B |
0.127mm (5 mils) |
- |
|
L6 |
35μm |
- |
1oz (1.4 mils) |
|
Bondply |
RO4450F |
8 mils |
- |
|
L7 |
17μm |
- |
1oz (1.4 mils) |
|
Core |
Rogers RO4350B |
0.168mm (6.6 mils) |
- |
|
Bottom Layer (L8) |
17μm + plating |
- |
1oz (1.4 mils) |
PCB Statistics
|
Parameter |
Value |
|
Components |
76 |
|
Total Pads |
303 |
|
Thru-Hole Pads |
117 |
|
Top SMT Pads |
121 |
|
Bottom SMT Pads |
65 |
|
Vias |
335 (Blind/Buried/Through) |
|
Nets |
6 |
Introduction to RO4350B Core and RO4450F Bondply
Rogers 4350B and RO4450F materials are at the forefront of PCB technology, offering a unique blend of performance and manufacturability. The RO4350B core material delivers exceptional dielectric control, low loss characteristics, and stability across a wide range of temperatures. Its UL 94 V-0 rating and thermal properties make it ideal for high-power RF applications and mixed dielectric multi-layer constructions.
On the other hand, the RO4450F bondply complements the core material by enhancing lateral flow capabilities and facilitating multiple lamination cycles. The compatibility with RO4000 laminates and FR-4 bonding requirements make it a versatile choice for complex multi-layer designs, ensuring reliability and performance in demanding environments.
Key Features of RO4350B Core
Key Features of RO4450F Bondply
Typical Applications
This 8-Layer HDI material RF PCB is ideal for:
Ordering Information
-Availability: Worldwide
-Lead Time: Contact for details
-Customization: Available upon request
For inquiries, samples, or bulk orders, contact our sales team today!
Conclusion
Elevate your RF designs with our state-of-the-art 8-layer HDI PCB featuring RO4350B core and RO4450F bondply. With meticulous craftsmanship, superior material properties, and strict adherence to quality standards, this High-Density Interconnect HDI PCB guarantees optimal performance, reliability, and longevity for your cutting-edge applications. Reach out to our global availability and experience the difference in RF PCB technology today.
