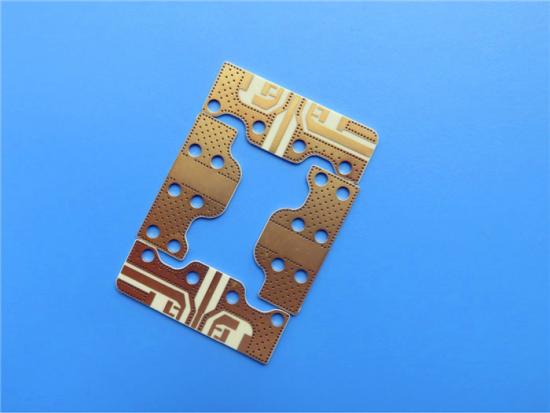

AD1000 PCB 50mil Rogers laminate High Frequency PCB Double Layer Circuit Immersion Gold

Rogers AD1000 is a woven-glass reinforced laminate that sets a new standard in PCB technology.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

AD1000 PCB 50mil Rogers laminate High Frequency PCB Double Layer Circuit Immersion Gold



Rogers AD1000 is a woven-glass reinforced laminate that sets a new standard in PCB technology. With its exceptional dimensional stability, mechanical robustness, and high dielectric constant, AD1000 high frequency PCB enables circuit miniaturization while ensuring greater signal integrity. This product is specifically designed for applications such as power amplifiers, filters, couplers, and components utilizing low-impedance lines. AD1000's unique properties make it a cost-effective choice for various industries.



1.Woven Glass Reinforced PTFE/Ceramic with Dk of 10.2 or Greater:

Rogers AD1000 employs a woven-glass reinforced PTFE/ceramic substrate with a high dielectric constant, allowing for circuit miniaturization compared to traditional low-loss materials. This feature enables the creation of compact and efficient electronic devices.


2.Best-in-Class Thermal Conductivity:

AD1000 boasts excellent thermal conductivity, ensuring efficient heat dissipation and management. This feature is particularly crucial for power amplifiers and other high-power applications, preventing overheating and optimizing device performance.


3.High Copper Peel Strength:

AD1000 demonstrates remarkable copper peel strength, exceeding 12 lbs/in after thermal stress and 13.6 lbs/in at elevated temperatures (150°C). This attribute enables thinner etched line widths, promoting flexibility in board design and facilitating precise circuitry layouts.


4.Lowest Insertion Loss Available:

With its exceptional electrical properties, AD1000 offers the lowest insertion loss available. This advantage ensures minimal signal degradation, leading to improved overall system performance and reliability.


5.Larger Panel Sizes Available:

AD1000's large panel size is advantageous for "multi-circuits per panel" processing. This feature enhances manufacturing efficiency and reduces production costs, making it an ideal choice for high-volume production.


6.Low Moisture Absorption:

AD1000 exhibits a moisture absorption rate of only 0.03%, ensuring stable performance even in humid environments. This characteristic enhances the durability and reliability of electronic devices, especially in challenging operating conditions.


7.Excellent CTE Values:

AD1000 possesses outstanding coefficient of thermal expansion (CTE) values of 8 ppm/oC, 10 ppm/oC, and 20 ppm/oC in the X, Y, and Z directions, respectively. These values contribute to highly reliable ceramic component attachment and plated through-hole (PTH) reliability, reducing the risk of mechanical failures.

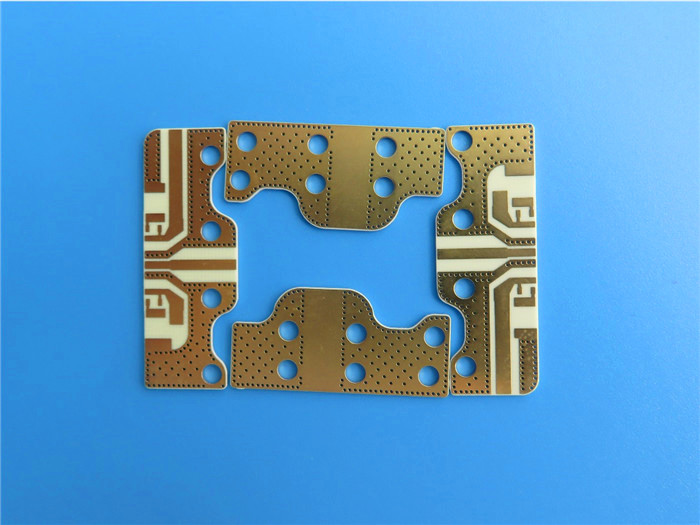

AD1000 high frequency PCB



 1.Mechanically Robust:

AD1000's woven-glass reinforcement provides superior mechanical robustness, ensuring reliable performance even in demanding environments. This feature reduces the risk of board damage during handling and transportation.


2.Greater Dimensional Stability than Other 10 Dk Products:

AD1000 offers exceptional dimensional stability, surpassing other 10 Dk products. This advantage minimizes the potential for warping or distortion, resulting in precise and reliable circuit layouts.


3.Circuit Miniaturization Leads to Weight Savings:

By enabling circuit miniaturization, AD1000 facilitates the development of lightweight electronic devices. This benefit is particularly valuable in industries such as aerospace and portable electronics, where weight reduction is a critical factor.


4.Heat Dissipation and Management:

AD1000's excellent thermal conductivity ensures efficient heat dissipation and management, preventing overheating and maintaining optimal device performance. This capability is essential for high-power applications and devices operating in challenging thermal environments.


5.Greater Signal Integrity:

With its low insertion loss and high dielectric constant, AD1000 maintains superior signal integrity throughout the circuitry. This advantage results in improved data transmission, reduced signal degradation, and enhanced overall system reliability.


6.Cost-Effective Board Layout and Processing:

AD1000's large panel sizes and excellent dimensional stability contribute to cost-effective board layout and processing. The ability to accommodate multiple circuits per panel streamlines production, reduces material waste, and lowers manufacturing costs.


7.Low Loss in Humid Environments:

AD1000's low moisture absorption rate ensures consistent performance even in humid environments. This characteristic prevents signal loss and deterioration, making it an excellent choice for applications where moisture resistance is crucial.


AD1000 PCB 50mil PCB Stackup

2-layer rigid PCB

Copper_layer_1 - 35 μm

AD1000 Core- 1.527 mm (50mil)

Copper_layer_2 - 35 μm



PCB Construction Details

The Arlon AD1000 PCB 50mil is a double layer circuit with the following specifications:



Board Dimensions

42.6mm x 21.5mm

(1PCS, +/- 0.15mm)


Minimum Trace/Space

4/4 mils

Minimum Hole Size


Blind Vias


Finished Board Thickness


Finished Cu Weight

1 oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Gold

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


Electrical Test




PCB Statistics





Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads








 Type of Artwork Supplied: Gerber RS-274-X


Accepted Standard: IPC-Class-2


Availability: Worldwide


Typical Applications:

1.Ideal for X-Band and Below:

AD1000 50mil material PCB is well-suited for applications in the X-Band and below frequency ranges, ensuring reliable performance in various communication and radar systems.


2.Radar Modules and Manifolds:

AD1000 enables the efficient design and manufacturing of radar modules and manifolds, providing exceptional signal integrity and reliability.


3.Aircraft Collision Avoidance Systems (TCAS):

With its superior electrical properties and mechanical robustness, AD1000 is an excellent choice for TCAS systems, ensuring accurate and timely collision avoidance in aviation.


4.Ground-Based Radar Surveillance Systems:

AD1000's low insertion loss, dimensional stability, and heat dissipation capabilities make it an ideal solution for ground-based radar surveillance systems, offering precise and reliable signal detection.


5.Miniaturized Circuitry & Patch Antennas:

AD1000 facilitates the development of miniaturized circuitry and patch antennas, enabling compact and efficient electronic devices in various industries.


6.Power Amplifiers (PAs):

AD1000's high dielectric constant and excellent thermal conductivity make it a perfect substrate for power amplifiers, ensuring optimal performance and heat dissipation.


7.Low Noise Amplifiers (LNAs):

AD1000's low loss and mechanical robustness are advantageous for low noise amplifiers, maintaining signal integrity and minimizing noise interference.



In conclusion, AD1000 PCB 50mil Rogers PCB laminate sets a new standard in PCB technology with its woven-glass reinforced laminate and exceptional electrical and mechanical properties. It enables circuit miniaturization, ensures greater signal integrity, and offers cost-effective board layout and processing. With its superior dimensional stability, heat dissipation capabilities, and low moisture absorption, AD1000 is suitable for various applications in industries such as aerospace, radar systems, communication systems, and more. Its availability worldwide and adherence to IPC-Class-2 standards make AD1000 PCB 50mil a reliable and high-performance choice for demanding electronic designs.
