Hybrid PCB
Hybrid PCB
Home Newly Shipped RF PCB CLTE-XT PCB 30mil 0.8mm Rogers Circuit Board Material Immersion Tin

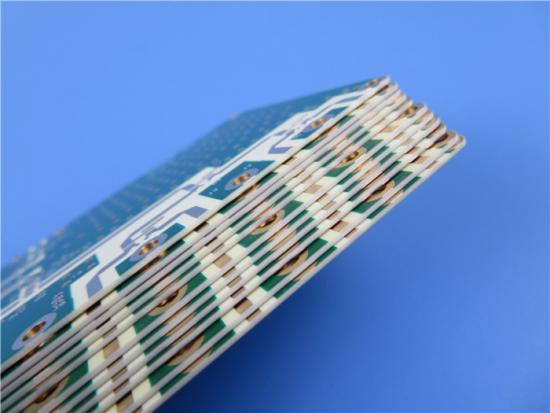

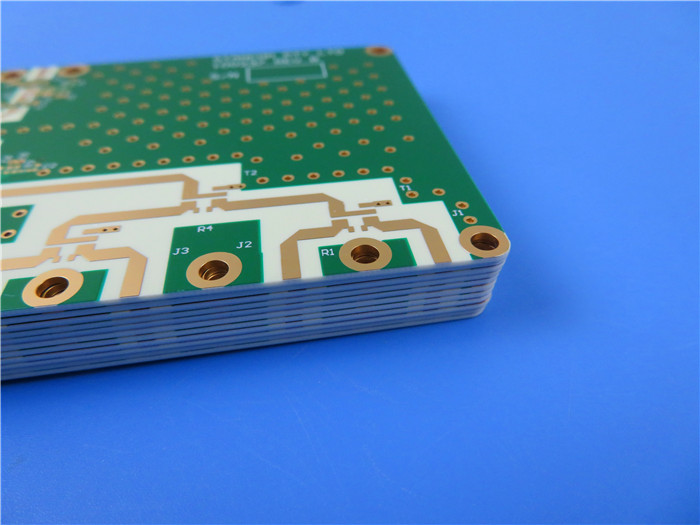

CLTE-XT PCB 30mil 0.8mm Rogers Circuit Board Material Immersion Tin

The CLTE-XT PCB 30mil is the ultimate choice for demanding applications that demand precise signal transmission and stringent performance standards.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

CLTE-XT PCB 30mil 0.8mm Rogers Circuit Board Material Immersion Tin


Introducing the CLTE-XT PCB 30mil, a revolutionary printed circuit board engineered to deliver unparalleled performance and reliability in high-frequency electronic applications. Manufactured using cutting-edge Rogers CLTE-XT laminates, this composite material combines micro-dispersed ceramic filler, PTFE, and woven fiberglass reinforcement. The result is a PCB that offers exceptional dimensional stability, remarkably low insertion loss, and an extensive operating temperature range. The CLTE-XT PCB 30mil is the ultimate choice for demanding applications that demand precise signal transmission and stringent performance standards.



The Features that Set CLTE-XT PCB Apart:

The CLTE-XT Rogers circuit board material PCB stands out from conventional PCBs with its remarkable features:


1)Dielectric Constant (DK):

With a DK ranging from 2.79 to 2.94 at 10GHz, 23°C @ 50% RH, the CLTE-XT PCB ensures excellent signal integrity, minimal signal loss, and precise impedance control. This low and stable DK makes it an ideal solution for high-frequency applications.


2)Dissipation Factor:

The CLTE-XT PCB boasts a dissipation factor of 0.0010 at 10GHz, 23°C @ 50% RH. This exceptionally low value minimizes energy loss during signal transmission, leading to efficient and reliable performance.


3)Coefficient of Thermal Expansion (CTE):

The CLTE-XT PCB features a CTE of 12.7ppm/°C (X-axis), 13.7ppm/°C (Y-axis), and 40.8ppm/°C (Z-axis). This unique composition ensures exceptional dimensional stability, allowing the board to maintain its shape and integrity even under extreme temperature fluctuations.


4)High Temperature Resistance:

With a decomposition temperature (Td) of 539°C, the CLTE-XT PCB can withstand elevated temperatures during assembly processes and demanding operating conditions. This exceptional resilience ensures long-term reliability and performance in even the most challenging environments.


5)Thermal Coefficient of Dielectric Constant:

The PCB exhibits a thermal coefficient of dielectric constant of -8ppm/°C, guaranteeing consistent and stable electrical performance across a wide temperature range. This feature is crucial for applications that experience varying temperature conditions.


Low Moisture Absorption:

With a moisture absorption rate of only 0.02%, the CLTE-XT PCB demonstrates excellent resistance to moisture, preventing any adverse effects on electrical performance and ensuring long-term reliability.



Benefits of Choosing CLTE-XT PCB

The CLTE-XTRogers antenna PCB provides numerous benefits that make it the preferred choice for high-frequency applications:


1)High Plated Through-Hole Reliability:

The CLTE-XT PCB ensures robust and reliable plated through-hole connections, minimizing signal degradation and delivering optimal performance. This reliability is crucial for applications where signal integrity is paramount.


2)Repeatable Lot-to-Lot Performance:

With strict manufacturing processes and rigorous quality control, the CLTE-XT PCB delivers consistent performance from batch to batch. This repeatability ensures ease of integration into production and eliminates the need for constant design modifications.


3)Reduced Circuit Losses:

The low insertion loss characteristics of the CLTE-XT PCB contribute to reduced energy losses, resulting in improved overall circuit performance. This benefit is particularly valuable in applications where signal fidelity is critical.


4)Dimensional Stability:

The exceptional dimensional stability of the CLTE-XT PCB reduces stress on attached components, especially ceramic active devices. This stability ensures reliable connections and extends the lifespan of the PCB and its associated components.




Copper_layer_1 - 35 μm

Rogers CLTE-XT Core - 0.762 mm (30mil)

Copper_layer_2 - 35 μm



PCB Construction and Specifications

The CLTE-XT PCB is a wholesale high quality double sided circuit board with precise construction details and specifications:



Board Dimensions

42.91mm x 108.31mm (+/- 0.15mm)

Minimum Trace/Space

5/7 mils

Minimum Hole Size


Blind Vias


Finished Board Thickness


Finished Cu Weight

1oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Tin

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


100% Electrical Test



PCB Statistics and Quality Standard:

The CLTE-XT high-frequency printed boards boasts impressive statistics and adheres to stringent quality standards:


PCB Statistics




Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads








Artwork and Quality Standard

The Rogers CLTE-XT PCB is supplied with Gerber RS-274-X artwork, ensuring compatibility with standard PCB design software tools. It conforms to the IPC-Class-2 quality standard, guaranteeing high reliability and performance.




The CLTE-XT 30mil Rogers substrates PCB finds its application in a wide range of high-frequency electronic systems, including:


1.Advanced Driver Assistance Systems (ADAS):

The PCB's exceptional signal integrity and stability make it ideal for ADAS applications, ensuring reliable communication between sensors, processors, and actuators for enhanced automotive safety features.


2.Patch Antennas:

The CLTE-XT PCB enables the construction of high-performance patch antennas used in wireless communication systems, satellite communication, and radar applications. Its low insertion loss and dimensional stability contribute to efficient signal transmission and reception.


3.Phased Array Antennas:

Phased array antennas rely on precise signal control and beamforming capabilities. The CLTE-XT PCB's low loss tangent and stable dielectric constant enable the construction of high-performance phased array antennas for radar, communication, and aerospace applications.


4.Power Amplifiers:

The PCB's high-frequency capabilities and low losses make it a preferred choice for power amplifier designs. It ensures efficient power transfer and minimal signal degradation, resulting in improved amplification performance.


5.Ground-based and Airborne Communications and Radar Systems:

The CLTE-XT PCB's exceptional electrical properties and dimensional stability make it suitable for ground-based and airborne communication systems, including radar, where reliable signal transmission and reception are critical.




The CLTE-XT Rogers circuit board is available worldwide, ensuring that customers across the globe can access this state-of-the-art technology for their high-frequency electronic applications. Whether you are a manufacturer, an electronics engineer, or a research institution, the CLTE-XT PCB is readily accessible to meet your specific needs.


Unleash the Power of CLTE-XT PCB

With its exceptional performance, dimensional stability, and reliability, the CLTE-XT PCB 30mil sets new standards for high-frequency electronic applications. Whether you are designing advanced driver assistance systems, patch antennas, phased array antennas, power amplifiers, or ground-based and airborne communication systems, the CLTE-XT high-frequency materials PCB is the ultimate solution to unlock the full potential of your designs. Trust in the CLTE-XT PCB to deliver unparalleled performance and reliability, ensuring your electronic systems operate at their peak efficiency.
