What Is RF-35TC PCB?
What Is RF-35TC PCB?

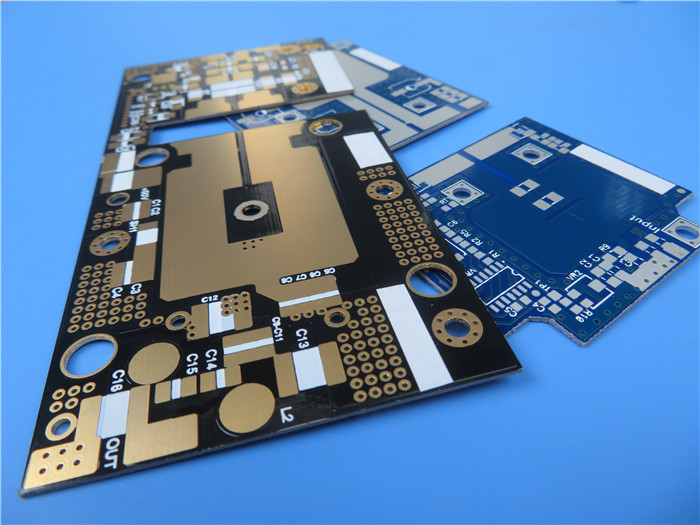

Introduction
Welcome to the future of high-frequency applications with the RF-35TC PCB 5mil - a groundbreaking solution that redefines the standards of performance and reliability in the realm of printed circuit boards. Designed to excel in high-power environments where precision is paramount, RF-35TC stands out as a top-tier choice for applications demanding exceptional thermal conductivity and low dissipation factor. Let's delve deeper into the innovative features, benefits, construction details, and applications of this state-of-the-art PCB.
RF-35TC: Unveiling Unparalleled Performance
The Taconic RF-35TC PCB offers a "best in class" low dissipation factor coupled with superior thermal conductivity. Crafted from a PTFE-based, ceramic-filled fiberglass substrate, RF-35TC is engineered to excel in scenarios where even the slightest deviation in performance can have significant repercussions. Unlike its synthetic rubber counterparts, RF-35TC high frequency circuit board remains steadfast, resisting oxidation, yellowing, and fluctuations in dielectric properties over time.
Features That Elevate Performance
1)Thermally Conductive Low Loss Laminate
RF-35TC boasts a DK of 3.5 +/- 0.05 at 10 GHz/23°C, ensuring consistent performance in high-frequency applications where precision is non-negotiable.
2)Exceptional Dissipation Factor
With a dissipation factor of 0.002 at 10 GHz/23°C, RF-35TC minimizes signal loss and ensures optimal transmission efficiency.
3)Superior Thermal Conductivity
The PCB's impressive thermal conductivity of 0.87 W/m/K for 0.5oz copper cladded and 0.92W/m/K for 1oz copper cladded ensures efficient heat dissipation, crucial for high-power applications.
4)Dimensional Stability
RF-35TC offers a low coefficient of thermal expansion (CTE) in all axes (X-axis: 11 ppm/°C, Y-axis: 13 ppm/°C, Z-axis: 34 ppm/°C), guaranteeing dimensional stability under varying temperature conditions.
5)High Temperature Resistance
With a Td 5% weight loss temperature of 436°C, RF-35TC is designed to withstand elevated temperatures, ensuring longevity and reliability.
6)Minimal Moisture Absorption
Boasting a low moisture absorption rate of 0.05%, RF-35TC 5mil Taconic substrate remains resilient in humid environments, maintaining consistent performance over time.
Unmatched Benefits for Superior Performance
1)"Best in Class" Loss Tangent
RF-35T PCB sets a new benchmark with its unparalleled loss tangent, ensuring minimal signal loss and maximizing transmission efficiency.
2)Exceptional Thermal Management
The PCB's superior thermal conductivity and efficient heat dissipation capabilities make it an ideal choice for high-power applications requiring robust thermal management.
3)Dk Stability Across Temperature Ranges
RF-35TC Taconic material maintains a stable dielectric constant across a broad temperature range, ensuring consistent and reliable performance in diverse operating conditions.
4)Enhanced Antenna Gains/Efficiencies
By facilitating enhanced antenna gains and efficiencies, RF-35TC empowers cutting-edge applications in wireless communication and RF systems.
5)Excellent Adhesion to Copper
RF-35TC Taconic laminates exhibits excellent adhesion properties to very low-profile copper, ensuring robust interconnectivity and reliability in high-frequency circuits.

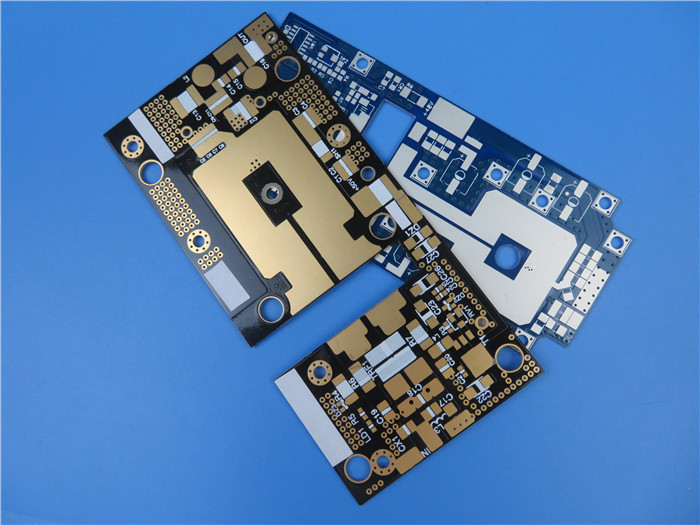

PCB Stackup and Construction Details
Stackup: 2-Layer Rigid PCB
Copper Layer 1: 35 μm
RF-35TC Core: 0.127 mm (5mil)
Copper Layer 2: 35 μm
Board Specifications
Dimensions: 48.17 mm x 47.7 mm (± 0.15mm)
Minimum Trace/Space: 4/5 mils
Minimum Hole Size: 0.3mm
Finished Board Thickness: 0.2mm
Finished Cu Weight: 1oz (1.4 mils) outer layers
Via Plating Thickness: 20 μm
Surface Finish: Immersion Gold
Top Silkscreen: White
Bottom Silkscreen: No
Electrical Testing: 100% Electrical Test Prior to Shipment
PCB Statistics
Components: 18
Total Pads: 33
Thru-Hole Pads: 21
Top SMT Pads: 12
Bottom SMT Pads: 0
Vias: 24
Nets: 2
Artwork Supplied: Gerber RS-274-X
Accepted Standard: IPC-Class-2
Availability: Worldwide
Applications in the Real World
1.Filters, Couplers & Power Amplifiers
RF-35TC Taconic PCB is ideal for applications requiring precise signal filtering, coupling, and power amplification, ensuring optimal performance in critical circuitry.
2.Antennas
With its enhanced antenna gains and efficiencies, RF-35TC is a top choice for antenna applications, guaranteeing superior signal transmission and reception in wireless communication systems.
3.Satellites
The exceptional thermal management and reliability of RF-35TC make it a preferred choice for satellite applications, where performance in harsh environmental conditions is crucial.
Conclusion
In conclusion, the Taconic RF-35TC PCB 5mil stands at the forefront of innovation in high-frequency applications, offering unparalleled performance, reliability, and thermal management capabilities. With its low dissipation factor, high thermal conductivity, and stable dielectric properties, RF-35TC Taconic PCB materials redefines the standards of excellence in PCB technology. Whether used in filters, antennas, power amplifiers, or satellite systems, RF-35TC high frequency PCB guarantees optimal performance and reliability, making it a go-to choice for demanding high-power applications worldwide.
Experience the future of high-frequency PCBs with RF-35TC - where precision meets performance, and reliability meets innovation.
