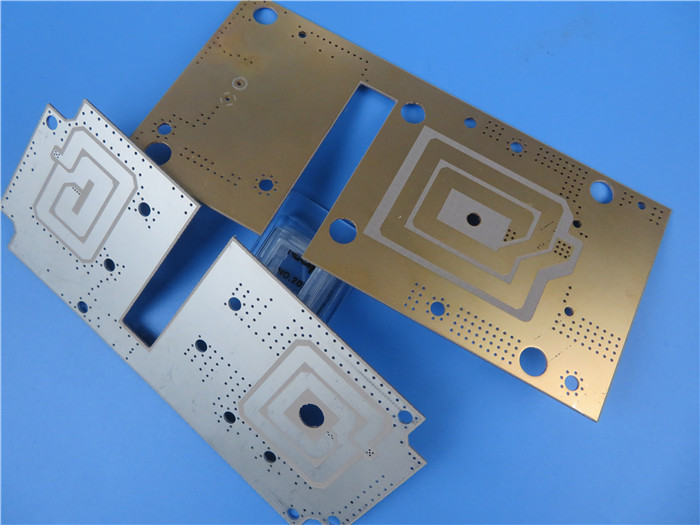

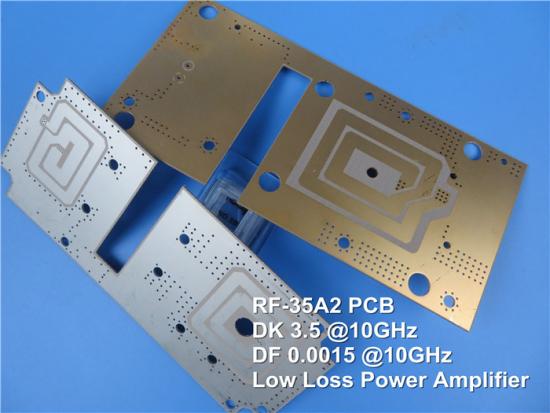

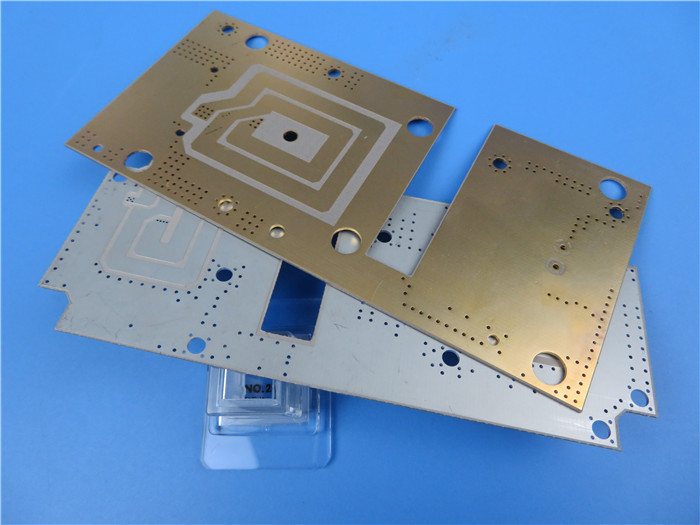

RF-35A2 PCB 30mil 0.762mm Taconic Substrate
Introducing the RF-35A2 PCB: A High-Performance Solution for Various Applications
The RF-35A2 PCB is a cutting-edge product crafted with glass-reinforced PTFE ceramic composites. With its exceptional properties, this RF-35A2 PCB material is designed to meet the demands of a wide range of industries. Let's take a closer look at its features and benefits.
RF-35A2 PCB Material:
The RF-35A2 30mil PCB material boasts impressive characteristics that make it a top choice for engineers and designers. It offers a dielectric constant (Dk) of 3.5 at 10 GHz, ensuring optimal signal transmission. The dissipation factor of 0.0015 at 10 GHz/23°C guarantees minimal loss during operation. Additionally, it has an X-CTE of 10 ppm/°C, Y-CTE of 13 ppm/°C, and Z-CTE of 108 ppm/°C, enabling stable performance across varying temperatures from -40℃ to +85℃.
Benefits:
Low Loss Properties: The RF-35A2 PCB exhibits low loss characteristics, ensuring efficient signal transmission and minimal signal degradation.
Dk Tolerance of ± 0.05: With a precise Dk tolerance, this PCB material ensures consistent and accurate performance.
Homogeneous Dk: Its homogeneous Dk distribution allows for uniform electrical performance throughout the board, eliminating variations that could impact signal integrity.
Excellent Peel Strength: The RF-35A2 PCB demonstrates exceptional peel strength, ensuring robust adhesion between layers and enhancing overall reliability.
Low Moisture Absorption: This material has low moisture absorption, making it ideal for applications in high-humidity environments.
Ease of Drilling: The RF-35A2 PCB is easy to drill, facilitating efficient production and assembly processes.
Stackup:
The RF-35A2 PCB features a 2-layer rigid construction with copper layers on both sides. The copper layer thickness is 35 μm, while the Taconic Core RF-35A2 has a thickness of 0.762 mm (30mil).
Construction Details:
Construction Details |
Values |
Board Dimensions |
75.08mm x 44.9mm |
(+/- 0.15mm) |
|
Minimum Trace/Space |
7/7 mils |
Minimum Hole Size |
0.30mm |
Blind Vias |
No |
Finished Board Thickness |
0.8mm |
Finished Cu Weight |
1 oz (1.4 mils) |
Via Plating Thickness |
20 μm |
Surface Finish |
HASL lead-free |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
100% Electrical Test |
Yes |
PCB Statistics:
PCB Statistics |
Values |
Components |
34 |
Total Pads |
66 |
Thru Hole Pads |
56 |
Top SMT Pads |
10 |
Bottom SMT Pads |
0 |
Vias |
35 |
Nets |
3 |
Typical Applications:
The RF-35A2 30mil high frequency PCB finds its application in a wide range of industries, including:
Power Amplifiers: Delivering high-performance amplification for various electronic devices.
Filters/Couplers: Ensuring precise signal filtering and coupling in communication systems.
High-Speed Digital: Facilitating fast and reliable data transmission in digital circuits.
Multilayer PCB: Supporting complex circuitry and multiple layers for advanced designs.
Passive Components: Enabling the integration of passive electronic components for enhanced functionality.
Wireless Antennas: Delivering efficient signal propagation and reception in wireless communication systems.
Availability:
The RF-35A2 substrate PCB is readily available for worldwide distribution, ensuring accessibility for customers across the globe.
Conclusion:
Choose the RF-35A2 0.762mm PCB for your next project and experience unparalleled performance, reliability, and versatility.
