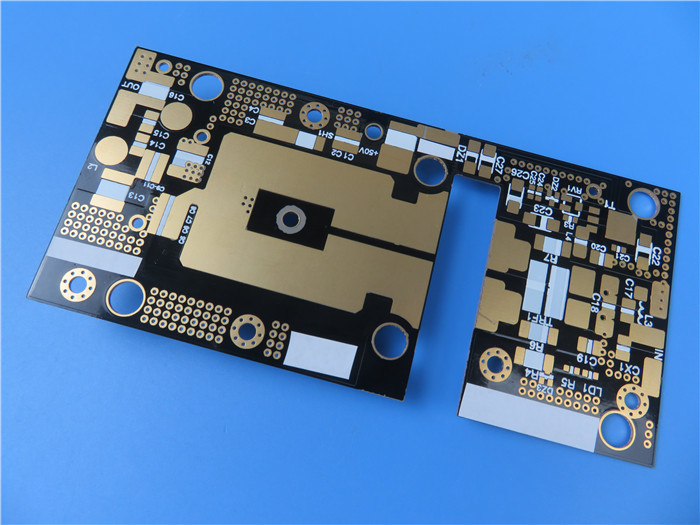

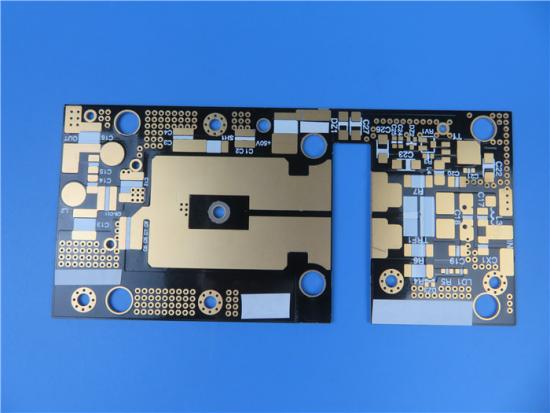

RF-60TC Taconic PCB 30mil 0.762mm RF High Frequency Board

Introducing the RF-60TC PCB 30mil: High-Performance RF PCB for Demanding Applications

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

RF-60TCTaconicPCB 30mil 0.762mm RF High Frequency Board


The RF-60TC PCB 30mil is a cutting-edge 2-layer rigid PCB specially designed to meet the rigorous demands of RF and microwave applications. With its advanced features and exceptional performance, this PCB delivers reliable signal integrity and optimal RF performance. Let's delve into the key details and benefits of this remarkable product:


RF-60TC PCB Material:

Crafted with precision using glass-reinforced PTFE ceramic composites, the RF-60TC PCB offers outstanding electrical and thermal properties. Its dielectric constant (Dk) of 6.15 at 10 GHz ensures consistent signal propagation and minimal loss. With a dissipation factor of 0.002 at 10 GHz/23°C, this PCB minimizes signal attenuation and distortion. The thermal coefficient of Dk of -3.58 ppm/°C during -50°C to 150°C ensures stable electrical performance across a wide temperature range. Operating reliably from -40°C to +85°C, this PCB is suitable for both extreme and moderate temperature environments.


RF-60TC PCB 30mil


The Taconic RF-60TC PCB 30mil provides an array of benefits that make it an ideal choice for demanding RF applications:


Improved loss tangent: The PCB's enhanced loss tangent reduces energy loss, ensuring efficient signal transmission and reception.


High thermal conductivity: With high thermal conductivity, this PCB effectively dissipates heat generated by power amplifiers and other heat-intensive components, maintaining optimal operating temperatures.


Enhanced dimensional stability: The RF-60TC high frequency PCB exhibits excellent dimensional stability, minimizing distortion and ensuring precise alignment of components.


Low Z-axis CTE: The low coefficient of thermal expansion (CTE) of 40 ppm/°C reduces the risk of stress-induced failures and solder joint cracking, ensuring long-term reliability.


Excellent adhesion to metal: The PCB material boasts excellent adhesion to metal, ensuring strong bonding between copper traces and components for improved electrical performance.


Stable DK over frequency: The RF-60TC 30mil substrate PCB maintains a stable dielectric constant across a wide frequency range, allowing consistent RF performance.


Stable DK over temperature: The PCB material's dielectric constant remains stable even with temperature variations, ensuring reliable signal integrity in fluctuating environmental conditions.


Low moisture absorption: With minimal moisture absorption, the RF-60TC PCB maintains its electrical properties, preventing performance degradation in humid conditions.


Construction Details:

Construction Details


Board Dimensions

43.88mm x 33.19mm (1PCS) +/- 0.15mm

Minimum Trace/Space

6/7 mils

Minimum Hole Size


Blind Vias


Finished Board Thickness


Finished Cu Weight

1 oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Gold

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


100% Electrical Test


RF-60TC high frequency PCB



The RF-60TC PCB 30mil caters to a wide range of high-frequency applications, including:

- High Power Amplifiers

- Miniaturized Antennas

- GPS, Patch, RFID reader

- Filters, Couplers & Dividers

- Satellites

PCB Statics:

PCB Statistics




Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads







Quality and Standards:

The RF-60TC PCB 30mil adheres to the IPC-Class-2 standard, ensuring high-quality manufacturing and reliability. It undergoes rigorous testing to ensure compliance with industry standards and specifications.



The RF-60TC PCB 30mil is available worldwide, catering to the diverse needs of RF engineers and manufacturers across the globe.


For any technical inquiries or further information, please contact Jane at Our dedicated team is ready to assist you with your RF PCB requirements.
