2-Layer 20mil FSD1020T ENIG High-Frequency PCB with Via Resin Plugged and Capped

2-Layer 20mil FSD1020T ENIGHigh-Frequency PCB withVia Resin Plugged and Capped

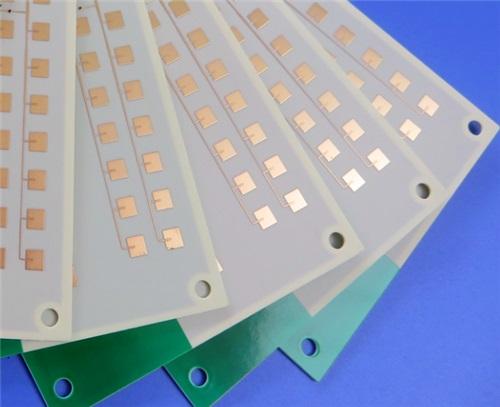

1. Product Overview

This 2-layer 20mil FSD1020T printed circuit board (PCB) is a high-performance, application-specific rigid substrate engineered for RF microwave, high-power, and high-current electronic systems. Designed to leverage the exceptional dielectric properties of FSD1020T hydrocarbon nano-ceramic composite copper clad laminate (CCL), this PCB delivers industry-leading signal integrity, thermal stability, and mechanical reliability for mission-critical applications including surveying and mapping systems, UAV control modules, intelligent transportation sensors, and shipborne navigation equipment.

With a compact form factor of 96mm x 47mm and a finished thickness of 0.508mm (20mil), this double-sided FSD PCB is optimized for space-constrained designs that demand consistent high-frequency performance, low signal loss, and robust resistance to thermal and environmental stress. Unlike generic FR-4 PCBs, this product is purpose-built for high-frequency RF applications, with a material stackup and manufacturing specifications tailored to minimize dielectric loss, maintain stable dielectric constant (Dk) across operating frequencies, and withstand the harsh operating conditions of industrial and aerospace-grade systems.

Every manufacturing parameter, from via design to surface finish, is selected to maximize the performance of the FSD1020T base material, ensuring consistent, repeatable performance across production batches.

2. PCB Construction Details

This section outlines the full mechanical and manufacturing specifications of the 2-layer FSD1020T PCB, defining its physical dimensions, material composition, and core manufacturing parameters.

3. PCB Stackup Configuration

The stackup configuration of this 2-layer PCB is optimized for high-frequency signal integrity and mechanical stability, with a symmetric structure tailored to FSD1020T material properties.

4. Electrical Performance & Reliability Highlights

The 20mil FSD1020T PCB delivers exceptional electrical performance tailored for high-frequency and high-power applications. At 10 GHz, the PCB achieves a dielectric constant (Dk) of 10.2±0.2 and a dissipation factor (Df) of 0.0038, ensuring minimal signal loss and consistent phase stability for microwave signal transmission. The 1oz outer copper layers provide a current-carrying capacity of up to 30A for wide traces, making the PCB suitable for high-power RF amplifiers and power distribution modules. The immersion gold surface finish, with a thickness of 170μin, ensures excellent contact resistance (<1mΩ) and long-term oxidation resistance, with a shelf life of over 12 months in standard storage conditions.

In terms of reliability, the DK10.2 high DK substrate PCB is built to withstand the harsh operating conditions of industrial and aerospace applications. The FSD1020T base material has a glass transition temperature (Tg) of 280°C, ensuring the PCB maintains its mechanical stability even at continuous operating temperatures of up to 200°C. The coefficient of thermal expansion (CTE) of <19 ppm/°C in the X/Y axis and <20 ppm/°C in the Z axis minimizes thermal expansion mismatch with electronic components, reducing the risk of solder joint failure during thermal cycling. The PCB has a dielectric breakdown voltage of 20 kV, providing exceptional insulation for high-voltage applications, and has passed the UL94 V0 flame resistance test, ensuring compliance with global safety standards.

5. Application Fields and System Integration

The FSD1020T PCB finds optimal deployment across diverse high-frequency systems:

5.1 Surveying and Mapping Systems:

High-DK substrate enables compact antenna feed networks and GPS/GNSS receiver front-ends requiring phase-matched transmission lines.

5.2 UAV Control Systems:

Low-loss characteristics at 10 GHz support reliable telemetry and video transmission links essential for unmanned aerial vehicle operation.

5.3 Safety Monitoring Infrastructure:

Stable electrical properties across temperature variations ensure consistent performance in outdoor surveillance radar and communication equipment.

5.4 Intelligent Transportation Systems (ITS):

DSRC (Dedicated Short-Range Communications) and V2X applications benefit from the low Df and controlled Dk for reliable vehicle-to-infrastructure connectivity.

5.5 Ship-Borne Navigation:

High Tg and moisture resistance (0.16% water absorption) support marine environment operation with exposure to humidity and temperature cycling.

5.6 Driving Test Towers:

Automotive radar and sensor fusion applications leverage the material's high-frequency performance for accurate distance measurement and object detection.

FSD1020T Copper Clad Laminate (CCL) Material Deep Dive

The FSD1020T is a high-performance hydrocarbon-based CCL material engineered explicitly for high-frequency RF and high-power applications, with a well-defined set of electrical, thermal, and mechanical properties. It is a low-loss carbon-hydrogen nano-ceramic composite material, designed to provide excellent dielectric constant matching for RF microwave substrates, superior mechanical workability, and outstanding resistance to thermal and environmental stress.

FSD1020T CCL Full Performance Datasheet

Core Material Technology & Advantages

• The FSD1020T CCL is formulated with a hydrocarbon resin system reinforced with nano-ceramic fillers, which delivers a unique combination of high Dk, low loss, and high thermal stability that is not achievable with standard epoxy-based FR-4 materials. The nano-ceramic fillers are uniformly dispersed in the hydrocarbon resin matrix, creating a homogeneous dielectric material with consistent Dk across a wide frequency range, from DC to over 10 GHz. This homogeneity eliminates the Dk variation that is common in glass-reinforced FR-4 materials, ensuring precise impedance control for high-frequency traces.

• One of the key technical advantages of FSD1020T is its ultra-low dissipation factor (Df) of 0.0038 @10 GHz, which is significantly lower than standard FR-4 materials (typically 0.02 @10 GHz). This low Df minimizes signal attenuation at microwave frequencies, enabling longer transmission distances and higher signal-to-noise ratios for RF systems. The material's high peel strength of 0.7 N/mm @288°C ensures excellent adhesion between the copper foil and the dielectric core, even after multiple thermal cycles, preventing copper delamination during PCB assembly and operation.

• FSD1020T also offers outstanding resistance to conductive anodic filament (CAF) formation, a common failure mode in PCBs operating in high-humidity environments. The material's low water absorption of 0.16% and high volume resistivity of 2×10⁸MΩ·cm prevent the formation of conductive paths between adjacent vias, ensuring long-term reliability in harsh environmental conditions. Additionally, the material is halogen-free and RoHS compliant, meeting global environmental regulations for electronic products, while its UL94 V0 flame resistance rating ensures compliance with safety standards for industrial and aerospace applications.

Conclusion

The FSD1020T 2-layer ENIG PCB delivers a sophisticated engineering solution combining high dielectric constant (10.2±0.2), low dissipation factor (0.0038), and exceptional thermal stability (Tg 280°C) for demanding RF and microwave applications. The 0.508mm (20mil) construction with 1oz copper weight and immersion gold finish provides a robust platform for high-current and high-power circuits requiring precise impedance control and minimal signal loss.

The carbon-hydrogen nano-ceramic composite technology at the core of FSD1020T bridges the gap between high-performance PTFE-based microwave materials and conventional epoxy-glass substrates, offering the RF designer an optimal balance of electrical performance, processability, and cost-effectiveness. With demonstrated CAF resistance, halogen-free and RoHS compliance, and V0 flammability rating, this PCB meets both performance and environmental requirements for modern electronic systems across surveying, UAV, automotive, and industrial automation sectors.

For designers seeking to maximize the potential of this material, careful consideration of transmission line geometry, thermal management, and assembly processes will ensure reliable, high-performance circuits that leverage the unique properties of FSD1020T to achieve superior system-level performance.
