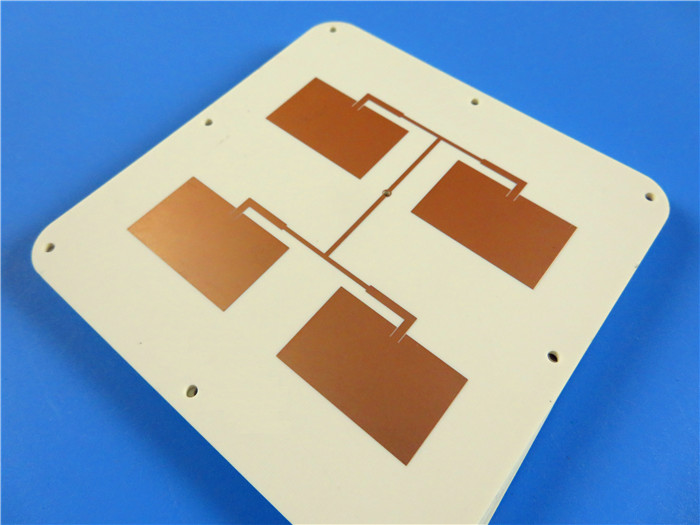

AD250C PCB 60mil Rogers Arlon High Frequency Laminate Board

The AD250C PCB 60mil represents a significant advancement in wireless infrastructure, offering exceptional performance and reliability.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

AD250C PCB 60mil Rogers Arlon High Frequency Laminate Board



The AD250C PCB 60mil is a revolutionary product in the realm of microwave and RF laminates. Manufactured by Rogers, a leading name in the telecommunications industry, this PCB boasts exceptional performance and unmatched reliability. With a low and tightly controlled dielectric constant of 2.50, it is designed to meet the growing demands of modern telecommunication infrastructure. In this comprehensive product description, we will delve deep into the features, benefits, construction details, and applications of theRogersAD250C PCB.



2.1 Rogers AD250C Woven Glass Reinforced PTFE Antenna Grade Laminates:

The AD250C PCB is constructed using the finest materials, ensuring optimal performance and durability. The woven glass reinforcement enhances mechanical strength, making it ideal for demanding applications.


2.2 Dielectric Constant of 2.5 with Tight Tolerance at 10 GHz/23°C:

The AD250C PCB offers precise and reliable signal transmission, thanks to its low dielectric constant with tight tolerances. This feature enables consistent performance in high-frequency applications.


2.3 Low Loss Tangent (<0.002 at 10 GHz):

With an incredibly low loss tangent, the AD250C PCB minimizes signal loss and distortion, allowing for enhanced circuit performance across a wide range of wireless frequency bands.


2.4 Controlled Dielectric Constant (±0.05):

The AD250C PCB ensures consistent electrical properties, providing designers with a reliable substrate to optimize antenna efficiencies and achieve repeatable circuit performance.


2.5 Very Low PIM (-159 dBc at 30 mil, 1900 MHz):

The AD250C PCB delivers exceptional performance with a remarkably low Passive Intermodulation (PIM) level. This factor reduces yield loss and guarantees excellent antenna performance.


2.6 Excellent Dimensional Stability:

The AD250C PCB offers outstanding dimensional stability, allowing for repeatable circuit performance even under fluctuating temperature conditions. This feature ensures reliable operation in diverse environments.

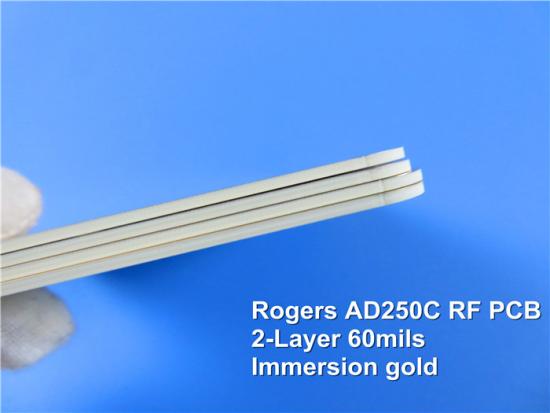

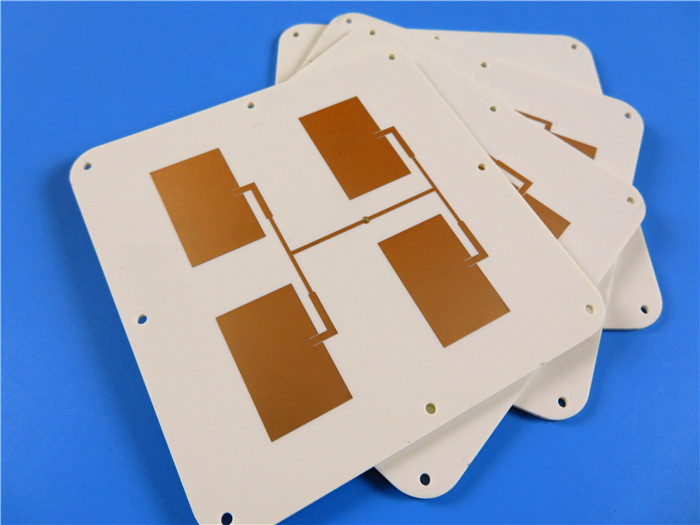

Rogers AD250C PCB 60mil


3.1 Improved Manufacturing Yields:

The AD250C PCB's enhanced plated through-hole (PTH) reliability, compared to typical PTFE-based laminates, leads to improved manufacturing yields. This translates into cost savings and increased productivity.


3.2 Reduced Yield Loss Due to PIM-Related Issues:

The AD250C PCB's low PIM performance significantly reduces yield loss caused by PIM-related issues. This benefit is particularly crucial in antenna applications where maintaining signal integrity is paramount.


3.3 Higher Antenna Efficiencies:

With its controlled dielectric constant, the AD250C 1.524mm laminate PCB enables designers to achieve higher antenna efficiencies. This results in improved signal transmission, increased range, and enhanced overall performance.


3.4 Excellent Circuit Performance in All Wireless Frequency Bands:

The AD250C PCB exhibits outstanding circuit performance across all typical wireless frequency bands. It provides a robust foundation for designing and manufacturing cutting-edge wireless communication systems.


3.5 Improved Dk Stability During Temperature Changes:

The AD250C PCB's ceramic composition ensures a higher degree of dielectric constant (Dk) stability during temperature changes. This stability guarantees reliable signal transmission even in harsh operating conditions.


Construction Details and Stack-up

The AD250C high frequency PCB is a 2-layer rigid PCB with a copper thickness of 35 μm on each layer. Its total thickness measures 1.524 mm (60mil), providing a sturdy and reliable substrate for various applications.


Construction Details


Board Dimensions

355mm x 210mm = 1PCS, +/- 0.15mm

Minimum Trace/Space

6/6 mils

Minimum Hole Size


Blind Vias


Finished Board Thickness


Finished Cu Weight

1oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Hot Air Soldering Level

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


Electrical Test

100% Prior to Shipment




PCB Statistics:

PCB Statistics




Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads









Quality Assurance and Testing

Prior to shipment, every AD250C PCB undergoes rigorous testing to guarantee its performance and reliability. A 100% electrical test is conducted to ensure that each board meets the highest standards of quality. By adhering to the IPC-Class-2 standard, Rogers ensures that only the finest AD250C PCBs are delivered to customers worldwide.



Cellular Infrastructure Base Station Antenna:

The AD250C60mil laminatePCB is a preferred choice for base station antennas in cellular infrastructure. Its exceptional performance and reliability enable seamless wireless communication, contributing to enhanced network coverage and connectivity.


Automotive Telematics Antenna Systems:
With its low loss tangent and controlled dielectric constant, the Arlon AD250C PCB is an ideal solution for automotive telematics antenna systems. It ensures reliable signal transmission and high antenna efficiency, facilitating advanced features such as connected car technologies and GPS navigation systems.


Commercial Satellite Radio Antenna:

The AD250C PCB's low PIM performance and excellent dimensional stability make it well-suited for commercial satellite radio antennas. It provides reliable and uninterrupted reception, ensuring high-quality audio and signal clarity.



The AD250C 60mil high frequency PCB  is a game-changer in the realm of microwave RF laminates. Its exceptional features, including a low dielectric constant, controlled dielectric constant, low loss tangent, and low PIM performance, deliver unparalleled performance and reliability. Designed with meticulous precision, it offers improved manufacturing yields, reduced yield loss due to PIM-related issues, and enhanced antenna efficiencies. With its vast range of applications, theArlonAD250C PCB empowers the telecommunications industry to push boundaries and unlock new possibilities in wireless communication. Experience the future of PCB technology with the Rogers AD250C PCB 60mil - a true marvel of engineering excellence.
