F4BTM300 high frequency PCB 40mil stands as a pinnacle of innovation, offering unparalleled performance and reliability in high-frequency circuit design.
Item NO.:
BIC-254-v319.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 daysF4BTM300 Wangling PCB 40mil High-Frequency Circuitry Immersion gold
Introduction
Stepping into the realm ofhigh-frequency circuitry,Wangling F4BTM300 PCB emerges as a beacon of technological prowess, meticulously crafted to redefine standards in electronic engineering. Combining a blend of fiberglass cloth, nano-ceramic filling, and polytetrafluoroethylene resin through precise pressing processes, this series embodies a new era of innovation. Built upon the robust F4BM dielectric layer, enhanced with high dielectric and low-loss nano-ceramics, the F4BTM300 PTFE F4B PCB offers a higher dielectric constant, improved heat resistance, lower thermal expansion coefficient, elevated insulation resistance, and superior thermal conductivity, all while maintaining minimal loss characteristics.
Unveiling F4BTM300 and F4BTME300
Distinguishing itself within the series, the F4BTM300 and F4BTME300 share a common dielectric layer but diverge in their copper foils. The F4BTM300 features ED copper foil, ideal for applications not requiring PIM considerations. In contrast, the F4BTME300 is paired with reverse-treated (RTF) copper foil, guaranteeing exceptional PIM performance, precise line control, and reduced conductor loss, catering to even the most demanding applications.
Key Features of F4BTM300
1)Dielectric Constant (Dk):
A remarkable Dk of 3.0 at 10GHz ensures stable and efficient signal propagation.
2)Dissipation Factor:
With a dissipation factor of 0.0018 at 10GHz, the F4BTM300 minimizes signal loss.
3)Coefficient of Thermal Expansion (CTE):
Across the x-axis, y-axis, and z-axis, the CTE values of 15 ppm/°C, 16 ppm/°C, and 78 ppm/°C, respectively, ensure thermal stability from -55°C to 288°C.
4)Low Thermal Coefficient of Dk:
A low thermal coefficient of Dk at -78 ppm/°C between -55°C to 150°C guarantees consistent performance under varying temperatures.
5)Moisture Absorption:
With a moisture absorption rate of ≤0.05%, the PCB maintains its integrity even in humid conditions.
6)Flammability:
The UL-94 V0 rating underscores the PCB's flame-retardant properties, ensuring safety and reliability.

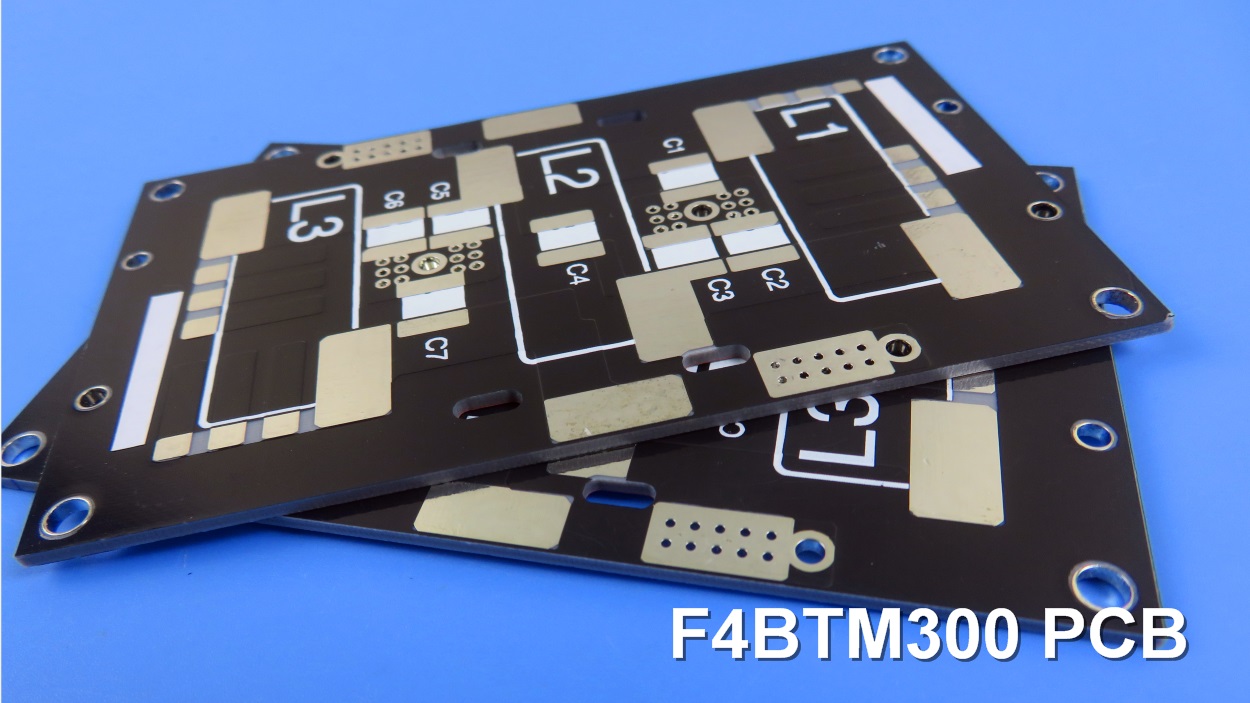

PCB Stackup and Construction Details
The F4BTM300 PCB is structured as a 2 layer circuit board, comprising:
Copper Layer 1: 35 μm
F4BTM300 Core: 1.016 mm (40mil)
Copper Layer 2: 35 μm
Construction Specifications:
PCB Construction Details |
Specifications |
Board Dimensions |
84.33mm x 59.5mm = 2Types = 2PCS, +/- 0.15mm |
Minimum Trace/Space |
4/6 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
No |
Finished Board Thickness |
1.1mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion gold |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Black |
Bottom Solder Mask |
No |
100% Electrical Test |
Used prior to shipment |
PCB Statistics
PCB Statistics |
Quantity |
Components |
16 |
Total Pads |
47 |
Thru Hole Pads |
32 |
Top SMT Pads |
15 |
Bottom SMT Pads |
0 |
Vias |
31 |
Nets |
2 |
Type of Artwork: Gerber RS-274-X, ensuring compatibility with industry standards
Quality Standard:IPC-Class-2, reflecting adherence to stringent quality benchmarks
Availability: Worldwide, catering to a global clientele
Applications
The versatility of the F4BTM300 40mil F4B substrate PCB extends to various high-frequency applications, including:
Microwave, RF, and Radar Systems
Phase Shifters
Power Dividers, Couplers, Combiners
Feed Networks
Phase-sensitive Antennas, Phased Array Antennas
Satellite Communications
Base Station Antennas
Conclusion
In conclusion, the F4BTM300 high frequency PCB 40mil stands as a pinnacle of innovation, offering unparalleled performance and reliability in high-frequency circuit design. With a focus on precision, quality, and technological advancement, this PCB series sets a new standard in electronic engineering. Explore the possibilities, elevate your projects, and embrace the future of high-frequency applications with Wangling's F4BTM300 PCB. Redefine excellence, redefine performance—experience the difference with F4BTM300.
