Home High Frequency PCB RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver

RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver

This type of immersion silver RF PCB is made on one of Taconic’s ORCER family material: RF-45.

  • Item NO.:

    BIC-178-v39.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$1.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

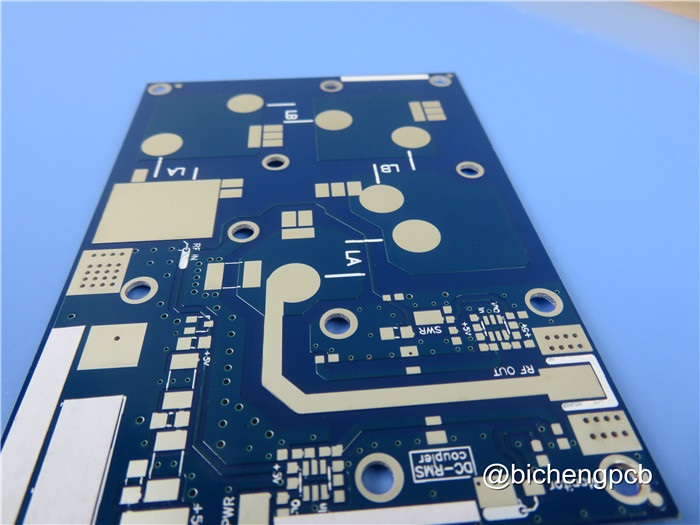

30mil RF-45 High Frequency PCB with Blue Solder Mask Coating Immersion Silver on Pads

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


Brief Introduction:


This type of RF PCB with Solder mask and silkscreen overlay are on top layer only. The bottom layer is fully exposed covered with immersion silver as the shield function. It’s 0.8mm thick and 50 boards are vacuum packed for shipment.


RF-45 PCB 0.8mm


PCB Specifications:


PCB SIZE 70 x 55mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 17um(0.5 oz)+plate TOP layer
RF-45 0.787mm
copper ------- 17um(0.5 oz) + plate  BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4.0 mil / 5.0 mil
Minimum / Maximum Holes: 0.4 mm / 6.0 mm
Number of Different Holes: 1
Number of Drill Holes: 3
Number of Milled Slots: 1
Number of Internal Cutouts: no
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:  RF-45
Final foil external:  1.0 oz
Final foil internal:  N/A
Final height of PCB:  0.8 mm ±0.1
PLATING AND COATING
Surface Finish Immersion silver, 39%
Solder Mask Apply To:  Top Layer
Solder Mask Color:  Blue
Solder Mask Type: Kuangshun
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Top Layer
Colour of Component Legend White
Manufacturer Name or Logo:  N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


RF-45 PCB material


Other Available RF PCB Material:


FR-4 Tg>135, High Tg>170 FR-4 ( S1000-2M, TU-872 SLK, TU-768, IT-180A etc.)

Rogers RO4350B, RO4003C, RO4730G3, RO4360G2, RO3003, RO3035, RO3006, RO3010, RO3210, RO3203, etc.

Rogers RT/duroid 5880, RT/duroid 5870, RT/duroid 6002, RT/duroid 6010, RT/duroid 6035HTC etc.

Rogers TMM4, TMM10, Kappa 438 etc.

PTFE F4B DK2.2, DK2.65

Taconic TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLY-5, TLY-3, RF-10, RF-35TC, TLF-35, RF-60A, RF-45, TRF-45 etc.

AD450, AD600, AD1000, TC350 etc.

Metal core PCB, 1W/MK-3W/MK material

Flexible PCB

Megtron 6 (M6) R-5775G


Our PCB Services:


PCB prototypes

Mass volume production

Single sided PCB

Double sided PCB

Multilayer PCB up to 32 layers

Heavy copper PCB

Hybrid PCB

Impedance controlled PCB

Via in pad PCB

Ball grid array (BGA) PCB

Blind via PCB

Countersink holes, half hole, press-fit hole

Quick turn-around (QTA) Delivery

No Minimum Order Quantity (MOQ)

Door to Door shipment service


CAPABILITY:


2500-3000 types each month.


SERVICE AREA:


North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.


Typical Applications:



Manufacturing Process of Dual Layer PTH PCB:




BICHENG PCB WORKSHOP:



BICHENG PCB CERTIFICATE:



BICHENG MAIN COURIERS:



We can provide you with prototypes, small batches and mass production. Any enquiry, please feel free to contact us.
