Home Newly Shipped RF PCB RO3006 PCB 25mil Rogers 3006 2 Layer Circuit Board Immersion Gold

RO3006 PCB 25mil Rogers 3006 2 Layer Circuit Board Immersion Gold


The RO3006 high frequency PCB with its high-performance features, exceptional mechanical and electrical properties, and versatile applications is an ideal choice for demanding electronic circuits that require reliability, stability, and precise signal transmission.






  • Item NO.:

    BIC-273-v339.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

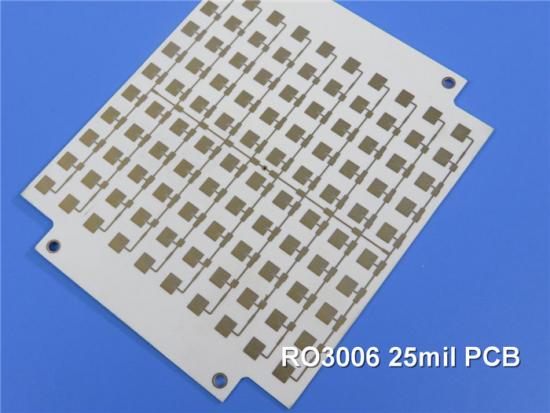

RO3006 PCB 25mil Rogers 3006 2 Layer Circuit Board Immersion Gold



Introduction

The RO3006 PCB is a cutting-edge circuit board built with Rogers 3006 laminates, which are ceramic-filled PTFE composites renowned for their exceptional electrical and mechanical stability. These advanced circuit materials offer a stable dielectric constant (Dk) across a wide range of temperatures, eliminating the step change in Dk typically experienced by PTFE glass materials near room temperature.



Features

1)Rogers RO3006 Ceramic-Filled PTFE Composites:

The Rogers RO3006 PCB utilizes Rogers RO3006 ceramic-filled PTFE composites, ensuring superior performance and reliability. These materials are carefully designed to provide exceptional electrical properties and mechanical stability.



2)Stable Dielectric Constant:

With a dielectric constant of 6.15 +/- 0.15 at 10 GHz and 23°C, the RO3006 PCB guarantees consistent signal integrity, making it suitable for high-frequency applications that demand precision and reliability.



3)Low Dissipation Factor:

The RO3006 PCB boasts an impressively low dissipation factor of 0.002 at 10 GHz and 23°C. This attribute minimizes signal loss and ensures efficient transmission of high-frequency signals.



4)High Thermal Stability:

With a glass transition temperature (Td) above 500°C, the RO3006 PCB can endure extreme operating conditions. It retains its structural integrity and electrical performance even under high-temperature environments.



5)Efficient Thermal Conductivity:

The PCB exhibits a thermal conductivity of 0.79 W/mK, enabling effective heat dissipation and thermal management. It is particularly advantageous for applications that require efficient heat transfer and thermal stability.



6)Minimal Moisture Absorption:

The RO3006 PCB has a moisture absorption rate of only 0.02%. This exceptional property enhances the reliability and longevity of the board, minimizing potential damage caused by moisture or humidity.



7)CTE Compatibility with Copper:

The PCB has a low in-plane coefficient of thermal expansion (CTE) that matches that of copper, ensuring reliable surface-mounted assemblies. This feature is highly beneficial for applications sensitive to temperature changes and guarantees excellent dimensional stability.

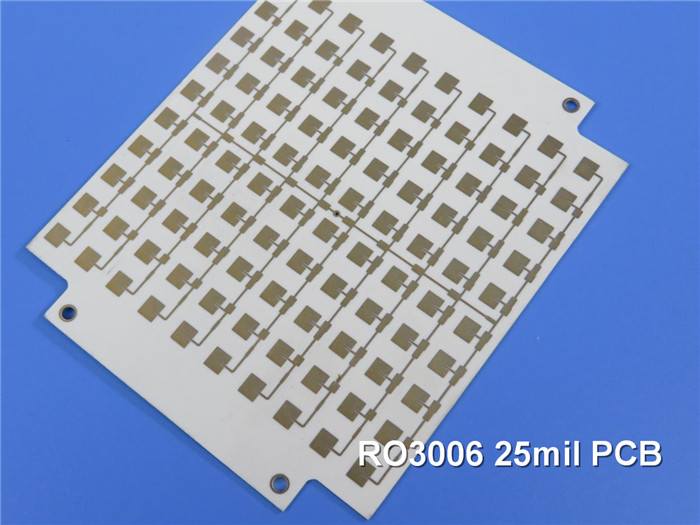

RO3006 PCB



Benefits

1)Uniform Mechanical Properties:

The RO3006 PCB offers uniform mechanical properties across a range of dielectric constants. It is an ideal choice for multi-layer board designs that require different dielectric constants, enabling greater flexibility in circuit design and implementation.



2)Versatility in Hybrid Designs:

It is suitable for use with epoxy glass multi-layer board hybrid designs, further expanding its applicability and facilitating diverse circuit configurations.



3)Economical Laminate Pricing:

The volume manufacturing process used for the RO3006 PCB results in an economical laminate pricing, making it a cost-effective solution for various applications demanding high-performance circuitry.



PCB Specifications

The RO3006 PCB is a 2 layer circuit board designed to deliver exceptional performance and reliability. Here are the key construction details:


Parameter

Value

Board Dimensions

51.31mm x 111.92mm = 2PCS

Minimum Trace/Space

5/4 mils

Minimum Hole Size

0.4mm

Blind Vias

No

Finished Board Thickness

0.76mm

Finished Cu Weight

1 oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Gold

Top Silkscreen

White

Bottom Silkscreen

No

Top Solder Mask

Green

Bottom Solder Mask

No

Electrical Test

100% Electrical test used prior to shipment





PCB Statistics

The 25mil RO3006 PCB consists of the following components:


Statistic

Value

Components

16

Total Pads

42

Thru Hole Pads

27

Top SMT Pads

15

Bottom SMT Pads

0

Vias

23

Nets

2





Artwork and Standards

The RO3006 PCB uses Gerber RS-274-X artwork files and complies with the IPC-Class-2 standard, ensuring stringent quality control and adherence to industry-leading specifications.



Availability

The RO3006 Rogers PCB material is available worldwide, making it easily accessible for customers across different regions.



Typical Applications

The RO3006 Rogers PCB is suitable for a wide range of high-performance applications, including:



-Automotive radar applications

-Global positioning satellite antennas

-Cellular telecommunications systems - power amplifiers and antennas

-Patch antenna for wireless communications

-Direct broadcast satellites

-Datalink on cable systems

-Remote meter readers

-Power backplanes



Conclusion

In summary, the RO3006 high frequency PCB with its high-performance features, exceptional mechanical and electrical properties, and versatile applications is an ideal choice for demanding electronic circuits that require reliability, stability, and precise signal transmission. Its cost-effective pricing and wide availability make it an excellent option for various industries.
