Home PCB Prototype TRF-45 High Frequency PCB Taconic High Thermal Conductivity Circuit Board

TRF-45 High Frequency PCB Taconic High Thermal Conductivity Circuit Board

A type of printed circuit board on low loss ceramic-fill PTFE: TRF-45 high frequency PCB.




  • Item NO.:

    BIC-175-v160.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


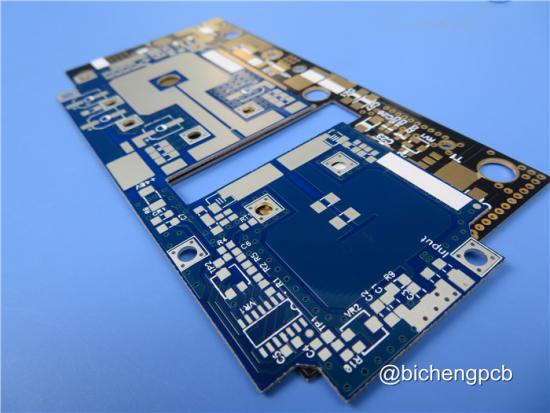

TRF-45 High Frequency PCB Taconic High Thermal Conductivity Circuit Board

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


Hi Everyone,

Today, we’re going to talk about a type of printed circuit board on low loss ceramic-fill PTFE: TRF-45 high frequency PCB.


TRF-45 is a new generation of low-loss, thermally-stable PCB material with Dk (Dielectric Constant) 4.5 +/- 0.15, Df (Dissipation Factor) 0.0035, Thermal Conductivity 0.43 W/m-K. It is woven-glass reinforced for enhanced dimensional-stability and coupled with Taconic's expertise in ceramic technology.

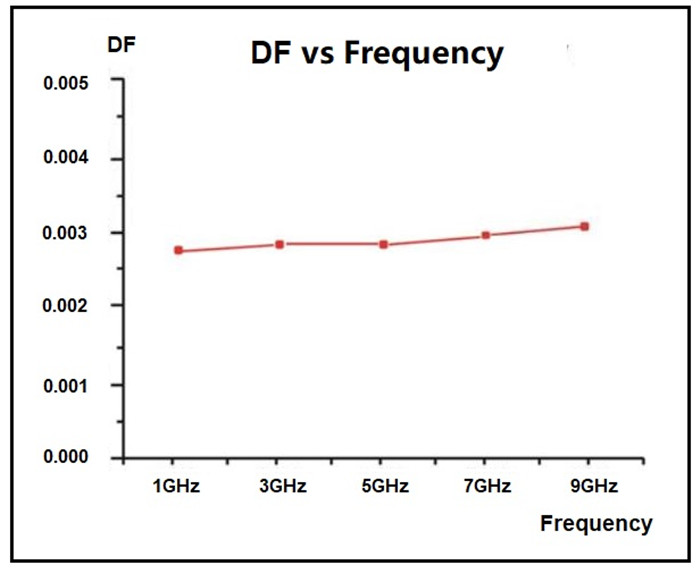

DF vs frequency

DK vs frequency


Typical Value of TRF-45

TRF-45 Typical Values
Property Test Method Unit Value
Material / / RF-45
Dielectric Constant @ 10GHz IPC-TM-650 2.5.5.5.1(m) / 4.5
Dissipation Factor @ 10GHz IPC-TM-650 2.5.5.5.1(m) / 0.0035
Moisture Absorption IPC-TM-650 2.6.2.1 % ≤0.06
Flexural Strength (Lengthwise) IPC-TM-650.2.4.4 lbs / in (N/mm2) 17000 (177)
Flexural Strength (Transverse) IPC-TM-650 2.4.4 lbs / in (N/mm2) 15000 (103)
Peel Strength IPC-TM-650 2.4.8 (Thermal Stress) lbs / in (N/mm) >8(>1.4)
Thermal Conductivity ASTM F 433 W/m/K 0.43
Volume Resistivity IPC-TM-650 2.5.17.1 Mohm/cm 8.0 x 107
Surface Resistivity IPC-TM-650.2.5.17.1 Mohm 3.0 x 107
CTE (x) ASTM D 3386 (TMA) ppm/℃ 9
CTE (y) ASTM D 3386 (TMA) ppm/℃ 9
CTE (z) ASTM D 3386 (TMA) ppm/℃ 40


Typical Applications

Satellite radio

RFID

GPS antenna


Our PCB Capability (TRF-45)

PCB Material:

Ceramic filled PTFE

Designation:

TRF-45

Dielectric constant:

4.5

Dissipation Factor

0.0035 10GHz

Layer count:

Double Sided PCB, Multilayer PCB, Hybrid PCB

Copper weight:

0.5oz (17 µm), 1oz (35µm), 2oz (70µm)

PCB thickness:

8mil (0.20mm), 16mil (0.41mm), 24mil (0.61mm), 32mil (0.81mm), 40mil (1.02mm), 64mil (1.63mm), 120mil (3.05mm)

PCB size:

≤400mm X 500mm

Solder mask:

Green, Black, Blue, Yellow, Red etc.

Surface finish:

Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc..



About Us

Founded in 2003, Shenzhen Bicheng Electronics Technology Co., Ltd is an established high frequency PCB supplier and exporter in Shenzhen China, severing cellular base station antenna, satellite, high frequency passive components, microstrip line and band line circuit, millimeter wave equipment, radar systems, digital radio frequency antenna and other fields worldwide for 18 years. Our high frequency PCBs are mainly built on 3 high frequency material brands: Rogers Corporation, Taconic and Wangling. Dielectric constant ranges from 2.2 to 10.2 etc.


We also have divisions of FR-4 circuit board, flexible circuits and metal core PCBs featured as prototypes, small runs to mass production. We also actively research and build such high value added PCB projects as HDI, quick turn, impedance control, heavy copper and backplane board etc. This has made our PCB products generate an effective prolongation and complementation, as well as formation of integrated products line ranging from low-end to high-end.


Our PCBs are used for a variety of purposes, including, but not limited to, computer networking, safety and surveillance, power supply, telecommunication, automotive electronics, medical apparatus and instruments, national defense and industrial equipment etc.


We can provide you with prototypes, small batches and mass production PCB’s. Any questions, please feel free to contact us.

Thanks for your reading.




BICHENG PCB WORKSHOP:




BICHENG PCB CERTIFICATE:



BICHENG MAIN COURIERS:


Leave A Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products
RF-45 RF High Frequency PCB
RF-45 Low Loss RF PCB Stable DK High Frequency High Performance Circuit Board

It’s a kind of low loss laminate alternative to FR-4, dielectric constant (DK) flat over temperature and DF is stable over frequency.

60mil Double Sided RO4350B PCB
Rogers 60mil 1.524mm RO4350B Double Sided RF Patch PCB

RO4350B hydrocarbon ceramic laminates are designed to offer superior high frequency performance and low cost circuit fabrication.

Rogers 5870 PCB
Rogers RT/Duroid 5870 10mil 0.254mm High Frequency PCB

Rogers RT/duroid 5870 high frequency material is glass microfiber reinforced PTFE composites which is designed for exacting stripline and microstrip circuit applications.

Rogers RO4730G3 PCB
Rogers RO4730G3 High Frequency PCB 2 Layer 20mil 0.508mm DK3.0 PCB

Rogers RO4730G3 antenna grade laminates are reliable, low-cost alternative to the conventional PTFE-based laminates. It has the mechanical and electrical properties that antenna designers need.

Rogers AD450 PCB
Arlon AD450 High Frequency PCB with 70mil Coating Immersion Gold

AD450 is compatible with processing used for standard PTFE based printed circuit board substrates. In addition, it's low Z-axis thermal expansion will improve plated through holes reliability, compare to typical PTFE based laminates.

Rogers AD450 High Frequency PCB
Rogers AD450 High Frequency PCB 10mil Substrate With ENIG

The electrical properties of AD450 suggest it can readily replace FR-4 in applications where higher frequencies and expectations for increased fidelity with broadband signal are beyond the performance offered by FR-4.

TRF-45 Double Sided PCB
TRF-45 RF 1.0mm Double Sided High Thermal Conductivity Low Loss PCB

This type of double sided high frequency PCB is built on 40mil TRF-45 low-loss ceramic-filled material with 1oz copper on both top and bottom side.

Rogers RT/Duroid 6002 HF PCB
Rogers HF PCB Built on RT/Duroid 6002 30mil DK2.94 Immersion Goldequency PCB

Rogers RO3006 was designed to offer exceptional electrical and mechanical stability at competitive prices.
