12-layer TG200 TU-872 SLK High-Speed FR4 1.68mm PCB with ENIG Impedance Control

12-layer TG200 TU-872 SLK High-Speed FR4 1.68mm PCB with ENIG Impedance Control

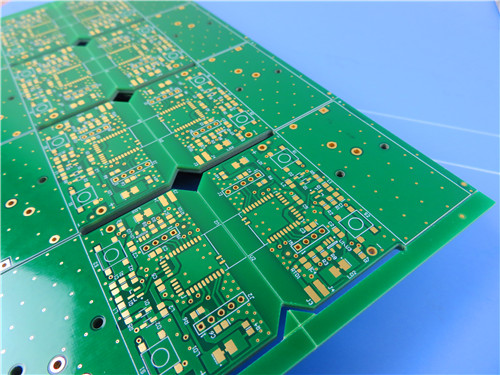

Product Overview

This custom 12-layer rigid multilayer PCB adopts TG200 high-Tg FR-4 substrate, targeted at high-speed digital signal transmission, multi-channel differential signal routing and high-density power supply distribution scenarios such as enterprise routers, communication line cards and miniaturized storage mainboards. The overall finished thickness is 1.68mm with asymmetric copper weight configuration (1oz outer layers / 0.5oz inner layers). The whole board implements fullresin-filled & electroplated filled via technology, full-layer precise impedance control covering single-end and differential traces, matte green solder mask with white legend and immersion gold surface finish.

Equipped with reserved process edges for mass production panelization, 100% full electrical continuity test is executed before shipment to eliminate open/short circuit hidden risks. Compared with conventional 8–10 layer PCBs, the12-layer stackup realizes independent partitioning of high-speed signal layers, power layers and ground layers, effectively isolating crosstalk interference between high-frequency differential signals and low-speed power traces, which is the core differentiated advantage of this product for complex high-speed hardware systems.

1.PCB Construction Details

The foundation of this 12-layer TU-872 SLK PCB's exceptional performance lies in its carefully engineered construction. The details below summarize the key physical and process attributes that define this board.

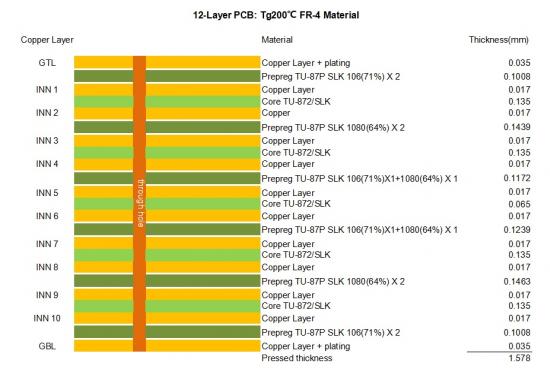

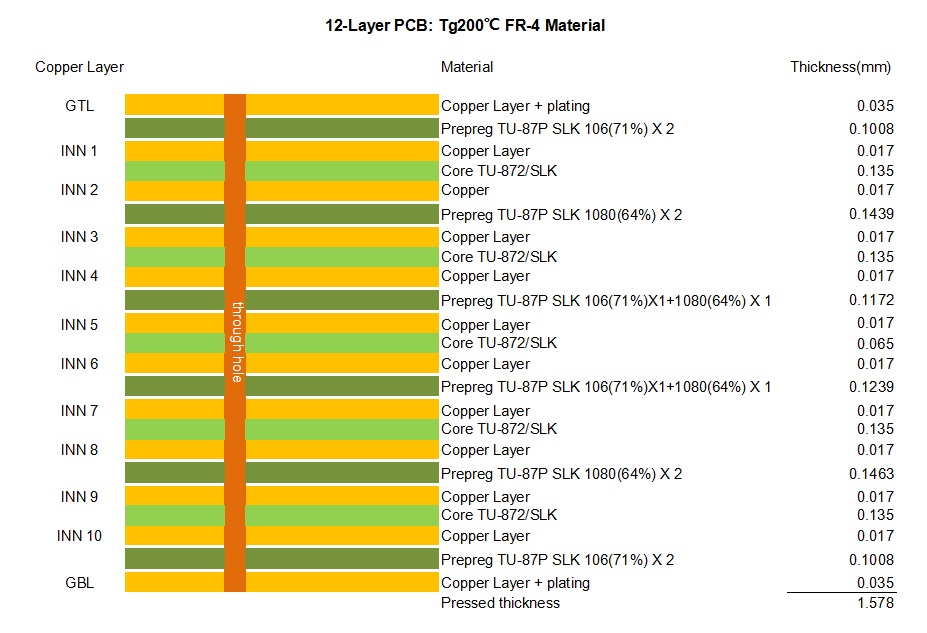

2.PCB Stackup

The 12-layer PCB stackup is the core of the board's performance. This structure is not merely a collection of layers but a carefully balanced system designed to control impedance, minimize crosstalk, and provide robust power delivery. The use of multiple prepreg and core combinations allows for precise dielectric thicknesses, enabling the specific impedance targets required for high-speed signals.

3.Engineering Excellence and Key Differentiators

3.1 Advanced Resin-Filled & Electroplated Vias (VIPPO)

• A defining feature of this12-layer TG200 PCB is its use of resin-filled and electroplated vias. This process, often referred to as Via-in-Pad Plated Over (VIPPO), is critical for high-density interconnect (HDI) designs. By filling vias with resin and then over-plating them, we create a flat, solderable surface on the via pad. This is imperative for fine-pitch BGA components, preventing solder wicking into the via barrel, which can cause voids and reliability failures. Furthermore, it significantly enhances mechanical strength and improves heat dissipation from the via structure, contributing to the overall thermal robustness of the board.

3.2 Precision Impedance Control

• The TU-872 SLK High-Speed PCB is designed with a highly precise impedance control requirement across multiple layers, a testament to its high-speed digital application. Unlike many standard boards that might target a single impedance, this design specifies distinct values for different signal layers to optimize performance:

TOP Layer: 90Ωand 100Ωdifferential pairs (4.9/5.5 mil trace/space) and 50Ωsingle-ended (7 mil).

L3 Layer: 90Ωand 100Ωdifferential pairs (4.5/4.7 mil) and 50Ωsingle-ended (6 mil).

L5 Layer: 100Ωdifferential (5/6 mil) and 50Ωsingle-ended (9 mil).

L10 Layer: 85Ω(8 mil).

L12 Layer: 100Ωdifferential (5/5 mil) and 50Ωsingle-ended (7 mil).

3.3 Robust Material and Finish

• The combination of ahigh-Tg (200°C) FR-4 material with an immersion gold (ENIG) finish provides a powerful synergy for reliability. The high Tg ensures the board maintains structural integrity and electrical performance even under the extreme temperatures of lead-free soldering processes. Simultaneously, the ENIG finish provides a flat, highly conductive, and oxidation-resistant surface, ideal for fine-pitch components and ensuring excellent solder joint reliability over the product's lifespan.

4.Conclusion of PCB Section

In summary, this 12-layer TG200 FR4 PCB is not just a component; it is a carefully engineered platform for high-performance electronics. Its construction combines a sophisticated stackup, advanced via technology, and precision impedance control to create a solution that meets the rigorous demands of modern high-speed digital and telecommunications systems. The use of a TG200 FR-4 material, paired with a high-reliability ENIG finish and 100% electrical testing, ensures a product that delivers exceptional signal integrity, thermal stability, and long-term field reliability, setting a new standard for performance in its class.

Appendix: Detailed CCL Material Knowledge - TU-872 SLK

Introduction to TU-872 SLK Laminate and Prepreg

The performance of any PCB is fundamentally rooted in the properties of its base materials. For this 12-layer board, we have chosen the TU-872 SLK system from Taiwan Union Technology (TUC). This represents a leap forward in FR-4 technology, moving beyond standard epoxy materials to a high-performance modified epoxy resin system. It is specifically engineered for high-speed, low-loss, and high-frequency applications. This section provides a comprehensive overview of the material's capabilities and data-sheet specifications.

Material System Overview

• Core: TU-872 SLK
• Prepreg: TU-87P SLK

• TU-872 SLK is based on a high-performance modified epoxy FR-4 resin, reinforced with regular woven E-glass. This material is engineered with a low dielectric constant (Dk) and low dissipation factor (Df), making it a superior choice for high-speed digital and RF circuits. Its key attributes include excellent electrical properties, stable Dk/Df performance across a range of frequencies, and compatibility with standard modified FR-4 processes. This ensures that manufacturers can produce complex PCBs without needing to significantly alter their established fabrication workflows.

Key Differentiators & Material Advantages

1. High Thermal Reliability (TG200):

• The material exhibits a high glass transition temperature (Tg) of over 170°C (DMA) and over 340°C (DSC), confirming its classification as TG200. This high Tg is crucial for maintaining the board's structural stability and coefficient of thermal expansion (CTE) integrity during the elevated temperatures of lead-free soldering and in high-power application environments.

2. Low Loss Electrical Performance:

• TU-872 SLK is designed to meet the stringent demands of high-speed data transmission. It guarantees a low and stable dissipation factor (Df < 0.010), which minimizes signal attenuation and ensures signal integrity at high frequencies. This is a critical differentiator for applications such as 10G/40G/100G Ethernet and other high-throughput serial links.

3. Exceptional CAF Resistance:

• The material demonstrates excellent anti-Conductive Anodic Filament (CAF) capability. CAF is a failure mechanism where metallic filaments grow between two biased conductors, leading to electrical shorts. The robust resin system in TU-872 SLK significantly reduces the risk of this failure, enhancing long-term reliability in humid environments.

4. Superior Thermal Stability:

• The material's performance under extreme conditions is validated by its TMA decomposition temperature (Td) of over 340°C. Moreover, it can withstand extended periods at high temperatures: >30 minutes at 260°C, >15 minutes at 288°C, and >2 minutes at 300°C. This impressive thermal stability is a direct result of the allyl network forming compound used in its resin system.

Technical Performance Data Sheet

The following table summarizes the key typical properties of the TU-872 SLK laminate as provided by the manufacturer (TUC). These values confirm its classification under various IPC-4101E slash sheets (/29, /99, /101, /126).

Material Availability

• Core Thicknesses: From 0.002" (0.05mm) to 0.062" (1.58mm)
• Copper Foil Cladding: 1/3 oz to 5 oz for built-up and double-sided designs.
• Prepreg Glass Styles: Available in 106, 1080, 3313, 2116, and other grades.

Applications & Target Markets

• Radio Frequency–RF amplifier circuits, antenna feed networks
• Backplane & High-Performance Computing–Server backplanes, compute modules
• Line Cards & Storage–Network interface cards, storage controllers
• Servers & Telecommunications–Base station equipment, core network hardware
• Office Routers–Enterprise networking equipment

Conclusion of CCL Material Section

The TU-872 SLK material system is the cornerstone of the PCB's exceptional performance. Its high Tg (TG200) ensures thermal reliability during assembly and operation, while its low Df (<0.010) and stable Dk (<5.2) properties guarantee superior signal integrity for high-speed circuits. Its proven CAF resistance, robust thermal stability (Td >340°C, T288 >15 min), and comprehensive industry approvals (IPC, UL) collectively make it a best-in-class material for demanding applications in telecommunications, networking, and high-performance computing. This selection is a deliberate choice to provide a product that not only meets but exceeds the reliability and performance expectations of our most sophisticated customers.
