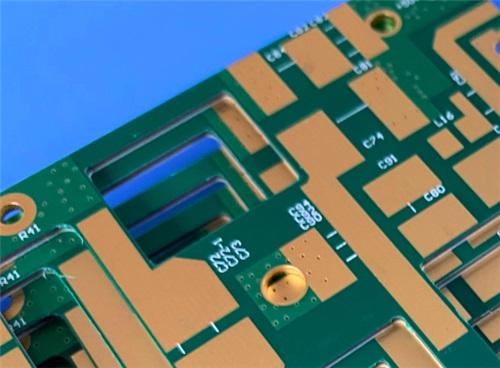

20-Layer Panasonic TU872 HDI PCB ENEPIG 3.0mm Finished Thick Laser-drilled Blind Vias

20-Layer Panasonic TU872 HDI PCB ENEPIG 3.0mm Finished Thick Laser-drilled Blind Vias

Overview

This 20-layer HDI PCB is engineered as a high-performance core substrate for next-generation communication base stations, high-performance computing (HPC) backplanes, server line cards, enterprise routers, and data storage equipment. Built on Panasonic TU-872 SLK low-dielectric, low-loss modified epoxy FR-4 copper clad laminate (CCL), the HDI board integrates laser-drilled HDI structure, resin-plugged vias, precision impedance control, and Class 3 manufacturing quality.

It delivers stable electrical transmission, excellent thermal reliability, strong CAF resistance, and long-term dimensional stability under high-frequency, high-speed, and lead-free assembly conditions. With a finished thickness of 3.0 mm and a panelized format of 215 mm×137 mm (2×2 array, 4 pieces per ship panel), the product balances mechanical robustness, routing density, and assembly compatibility. Every unit undergoes 100% electrical testing before delivery to guarantee zero electrical defects in mass deployment.

PCB Construction Details

The following table summarizes the mechanical, material, surface, and process specifications of the finished circuit board.

Key Performance Advantages

1. Electrical Performance for High-Speed & High-Frequency

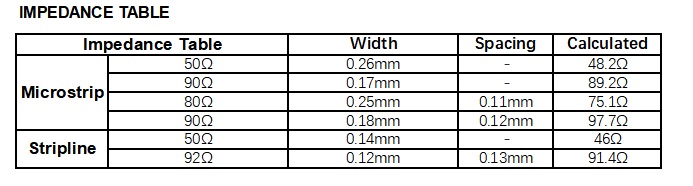

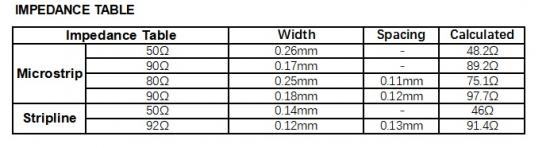

The PCB uses TU-872 SLK with Dk < 4.0 and Df < 0.010 across 1–10 GHz, providing stable and flat dielectric properties. This reduces signal attenuation, crosstalk, and jitter in 5G/6G base stations, server backplanes, and high-speed storage systems. Impedance control ensures consistent 50Ω/ 100Ωdifferential performance for high-speed SerDes channels.

2. HDI & High-Density Interconnection

Laser-drilled blind vias enable fine routing and increased I/O density without sacrificing reliability. Resin plug vias improve planarization, resist CAF (conductive anodic filament), and enhance via-plating integrity under thermal cycling. The 20-layer stack supports complex power distribution and multi-channel high-speed signaling.

3. Thermal Reliability & Lead-Free Compatibility

With Tg (DSC) = 200°C and Td > 340°C, the board withstands multiple lead-free reflow cycles at 260°C and short-term exposure to 288°C solder float (>60 seconds). Z-axis CTE is controlled below 3.0%, greatly lowering via barrel stress and fatigue failure during thermal shock.

4. Mechanical & Environmental Stability

Low water absorption (0.13%), high flexural strength (>60,000 psi lengthwise), and excellent peel strength (4–7 lb/in for 1.0 oz Cu) ensure stability under humidity, vibration, and mechanical stress. The material meets UL 94V-0 flammability and operates continuously at 130°C.

5. Quality & Assembly Assurance

Built to IPC Class 3, the board supports high-reliability applications. ENEPIG surface finish provides excellent wire bonding, solderability, and corrosion resistance. Green solder mask and white legend ensure clear identification and strong solder masking protection. 100% electrical test eliminates opens, shorts, and leakage risks.

This 20-layer TU872 HDI PCB integrates advanced structural design and strict manufacturing control to satisfy the most demanding high-speed system requirements. Symmetric stackup effectively lowers warpage and enhances impedance stability, while resin plug vias and laser blind vias boost interconnect density and reliability. ENEPIG surface treatment ensures long-term solderability and corrosion protection. Compliant with IPC Class 3 and verified by 100% electrical testing, the board maintains stable signal transmission and mechanical integrity under long-term high-temperature and high-humidity conditions, providing a secure and high-performance foundation for core communication and computing equipment.

TU-872 SLK Copper Clad Laminate (CCL) Technical Overview

Material Introduction

TU-872 SLK is a high-performance modified epoxy FR-4 laminate reinforced with standard E-glass fabric, designed for low Dk, low Df, high-speed, low-loss, and high-frequency multilayer PCBs. It is compatible with conventional FR-4 processes and fully suitable for RoHS-compliant lead-free assembly. An allyl network additive enhances toughness, CAF resistance, thermal stability, and chemical resistance.

Typical Properties of TU-872 SLK Laminate

Industry Approvals

• IPC-4101E Type: /29, /99, /101, /126
• IPC-4101E/126 QPL Certified
• UL File No.: E189572
• ANSI Grade: FR-4.0
• Flammability: UL 94V-0
• Max Operating Temperature: 130°C

Standard Specifications

• Thickness: 0.05 mm (0.002”) to 1.58 mm (0.062”)
• Copper Foil: 1/3 oz to 5 oz (double-sided & buildup)
• Prepreg: TU-87P SLK; roll or panel; glass styles 106, 1080, 3313, 2116
• Process: Compatible with standard FR-4 lamination, drilling, plating, and imaging

Core Material Benefits

• Low Loss & Stable High-Frequency Performance
• Dk < 4.0 and Df < 0.010 maintain signal integrity for 10G/25G/100G+ links.
• Excellent Thermal Reliability
• High Tg and Td support lead-free reflow and long-term high-temperature operation.
• Strong CAF & Chemical Resistance
• Ideal for telecom and industrial environments with high humidity and bias voltage.
• Low Moisture Absorption & High Dimensional Stability
• Reduces warpage and improves registration in multilayer HDI production.

Conclusion

TU-872 SLK copper clad laminate stands out as a high-performance material solution for advanced multilayer PCBs. Its optimized resin system delivers stable low dielectric properties across wide frequency bands and strong resistance to CAF, moisture, and thermal stress. With certified IPC and UL compliance, it supports lead-free assembly and standard FR-4 processing without extra investment. Balanced thermal, mechanical, and electrical performance makes it highly adaptable to high-frequency and high-reliability scenarios, offering a cost-efficient, reliable, and long-term stable material base for next-generation electronic products.
