Home Rogers PCB Board 2-Layer RT/duroid 6006 PCB 10mil Rogers Substrate Immersion Silver No Solder Mask

2-Layer RT/duroid 6006 PCB 10mil Rogers Substrate Immersion Silver No Solder Mask

The 2-layer RT/duroid 6006 10mil PCB is a high-performance rigid board designed for high-frequency RF and microwave applications.

  • Item NO.:

    BIC-563-v648.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


2-Layer RT/duroid 6006 PCB 10mil Rogers Substrate Immersion Silver No Solder Mask



1. Product Overview


The RT/duroid 6006 10mil Immersion Silver PCB is a high-performance 2-layer rigid microwave circuit board built on Rogers ceramic-filled PTFE composite laminate, optimized for high-dielectric-constant, low-loss RF applications up to X-band and below. It features a 10mil (0.254mm) core thickness, immersion silver surface finish, no solder mask or silkscreen, and is manufactured in compliance with IPC-Class-2 standards. This board is purpose-built for compact, high-stability circuits such as patch antennas, satellite communication modules, power amplifiers, airborne collision avoidance systems, and ground radar warning receivers.



Its tight Dk control, low dissipation factor, minimal moisture absorption, and balanced thermal expansion behavior ensure repeatable electrical performance across temperature variations and batch productions.



2. PCB Construction

This section summarizes the Rogers 6006 board’s mechanical, fabrication, and surface treatment parameters, all derived from verified production data.



Item

Specification

Board Dimensions

134.8mm × 78.65mm, 2 types × 2 pcs, tolerance ±0.15mm

Minimum Trace / Space

5 / 6 mils

Minimum Finished Hole Size

0.3mm

Blind Vias

No

Finished Board Thickness

0.4mm

Finished Copper Weight (Outer Layers)

1 oz (1.4 mils / 35 μm)

Via Plating Thickness

20 μm

Surface Finish

Immersion Silver

Top Silkscreen

None

Bottom Silkscreen

None

Top Solder Mask

None

Bottom Solder Mask

None

Final Test

100% electrical test before shipment





3. PCB Layer Structure Summary

The stack-up is symmetric and designed for impedance consistency and low signal distortion in high-frequency transmission.



Layer Sequence

Material

Thickness

Outer Layer 1

Copper foil

35 μm

Core Dielectric

RT/duroid 6006

0.254 mm (10mil)

Outer Layer 2

Copper foil

35 μm

Total Board Thickness

0.4 mm





4. PCB Layout & Net Statistics

This table reflects the actual routing density, component distribution, and interconnection structure of the board.



Item

Quantity

Mounted Components

46

Total Pads

64

Through-hole Pads

26

Top SMT Pads

38

Bottom SMT Pads

0

Vias

41

Electrical Nets

2

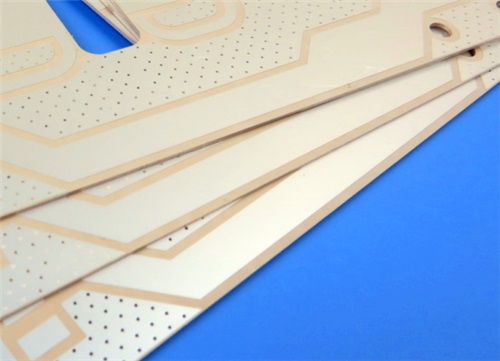

RTduroid 6006 PCB 10mil Immersion Silver


5. Core Performance & Differentiating Advantages



5.1 Material Superiority

RT/duroid 6006 is a ceramic-PTFE composite engineered for high-Dk microwave circuits. Unlike standard FR-4 or general-purpose high-frequency substrates, it provides a stable dielectric constant while maintaining low loss at operating frequencies up to X-band. The ceramic filler enhances dimensional stability and thermal performance, while the PTFE matrix delivers outstanding electrical insulation and low loss characteristics.



5.2 Electrical Performance


  • Dielectric constant Dk = 6.15±0.15 @10GHz, 23°C
  • Dissipation factor Df = 0.0027 @10GHz, 23°C
  • Thermal coefficient of Dk =–410 ppm/°C (–50 to 170°C)
  • Volume resistivity: 2×10⁷MΩ·cm
  • Surface resistivity: 7×10⁷MΩ


These values ensure low insertion loss, stable phase response, and consistent impedance in high-sensitivity RF front-end circuits.




5.3 Thermal & Mechanical Stability


  • Decomposition temperature Td >500°C (TGA)
  • CTE: X-axis 47 ppm/°C, Y-axis 34 ppm/°C, Z-axis 117 ppm/°C
  • Thermal conductivity: 0.49 W/m·K @80°C
  • Copper peel strength: 14.3 pli (2.5 N/mm) after solder float
  • Flammability: UL94 V-0
  • Lead-free process compatible
  • The Z-axis CTE supports reliable plated through-holes, while high thermal stability protects performance during reflow and field operation.




5.4 Environmental Reliability


  • Moisture absorption: 0.05%
  • Density: 2.7 g/cm³
  • Excellent chemical resistance
  • Low outgassing
  • Low moisture absorption preserves electrical performance in high-humidity environments, making the board suitable for aerospace, radar, and satellite ground stations.




5.5 Fabrication Precision


  • Symmetric stack-up minimizes warpage
  • 100% electrical testing ensures yield
  • Immersion silver provides flat, solderable surfaces without mask interference
  • Strictly controlled dielectric thickness and copper weight support impedance accuracy






6. Typical Applications


  • Patch antennas and array antennas
  • Satellite communication systems
  • Medium- and high-power amplifiers
  • Aircraft collision avoidance systems
  • Ground radar warning systems
  • Military and aerospace RF modules
  • Test instrumentation for microwave devices




This 10mil RT/duroid 6006 PCB is ideal for systems requiring miniaturization, low loss, and high electrical repeatability.





Part 2: RT/duroid 6006 Copper Clad Laminate (CCL) Knowledge



This section is independent of the PCB description and provides in-depth CCL fundamentals plus complete material parameters for engineering reference.



1. What is Copper Clad Laminate (CCL)?

Copper Clad Laminate (CCL) is the foundational substrate of printed circuit boards. It consists of a reinforced insulating core bonded with copper foil under high temperature and pressure. CCL determines a PCB’s electrical, thermal, mechanical, and reliability performance. For high-frequency/RF PCBs, high-frequency CCL differs significantly from standard FR-4:




  • Stable dielectric constant (Dk) over frequency and temperature
  • Ultra-low dissipation factor (Df) to minimize signal loss
  • Low moisture absorption
  • Excellent thermal stability and controlled CTE
  • Good copper adhesion and drillability
  • Compatibility with high-frequency fabrication processes

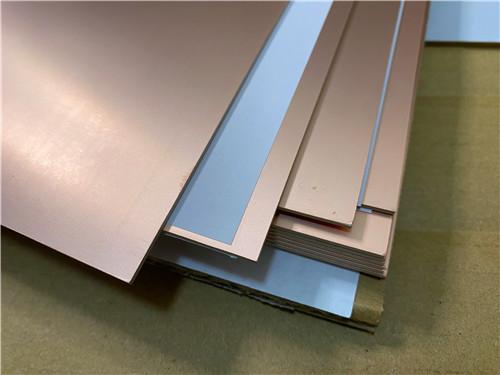

RT/duroid 6006 Copper Clad Laminate



2. Classification of High-Frequency CCL


  • PTFE-based CCL: Lowest loss, excellent stability; used in microwave, aerospace, and radar. RT/duroid 6006 belongs to this category.
  • Hydrocarbon ceramic CCL: Good balance of cost and performance; widely used in 5G base stations.
  • Thermoset high-performance CCL: Improved thermal resistance for industrial and automotive radar.






3. Why RT/duroid 6006 Stands Out

RT/duroid 6006 is aceramic-filled PTFE laminate optimized for high Dk and low loss. Its balanced properties enable circuit miniaturization without sacrificing performance, making it a preferred choice for X-band and sub-X-band systems.





4. Complete RT/duroid 6006 CCL Datasheet Table



Property

Typical Value

Direction

Unit

Test Condition

Test Method

Dielectric Constant (Process)

6.15 ±0.15

Z

10 GHz, 23°C

IPC-TM-650 2.5.5.5

Dielectric Constant (Design)

6.45

Z

8–40 GHz

Differential Phase Length

Dissipation Factor (tanδ)

0.0027

Z

10 GHz, 23°C

IPC-TM-650 2.5.5.5

Thermal Coefficient of εr

–410

Z

ppm/°C

–50 to 170°C

IPC-TM-650 2.5.5.5

Surface Resistivity

7×10⁷

Ambient

IPC 2.5.17.1

Volume Resistivity

2×10⁷

MΩ·cm

Ambient

IPC 2.5.17.1

Young’s Modulus (Tensile)

627 (X), 517 (Y)

X,Y

MPa

Ambient

ASTM D638

Ultimate Tensile Stress

20 (X), 17 (Y)

X,Y

MPa

Ambient

ASTM D638

Compressive Modulus

1069

Z

MPa

Ambient

ASTM D695

Compressive Strength

54

Z

MPa

Ambient

ASTM D695

Flexural Modulus

2634 (X), 1951 (Y)

X,Y

MPa

Ambient

ASTM D790

Deformation under Load

0.33%/2.10%

Z

%

50°C/150°C, 7MPa, 24h

ASTM D261

Moisture Absorption

0.05

%

D48/50°C, 1.27mm

IPC-TM-650 2.6.2.1

Density

2.7

g/cm³

ASTM D792

Thermal Conductivity

0.49

W/m·K

80°C

ASTM C518

CTE

47 (X), 34 (Y), 117 (Z)

X,Y,Z

ppm/°C

23°C, 50%RH

IPC-TM-650 2.4.41

Decomposition Temperature (Td)

>500

°C

TGA

ASTM D3850

Specific Heat

0.97

J/g·K

Calculated

Copper Peel Strength

14.3

pli

After solder float

IPC-TM-650 2.4.8

Flammability

V-0

UL94

Lead-Free Compatibility

Yes





5. Standard Specifications for RT/duroid 6006 CCL




  • Standard thicknesses: 10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.905mm), 100mil (2.54mm)



  • Standard panel sizes: 10”×10”, 10”×20”, 18”×12”



  • Copper cladding:½oz (18μm), 1 oz (35μm), standard or reverse-treated ED copper






Conclusion



The 2-layer RT/duroid 6006 10mil PCB is a high-performance rigid board designed for high-frequency RF and microwave applications. Built with Rogers'ceramic-PTFE laminate, it features stable dielectric properties, ultra-low loss, and excellent thermal–mechanical stability, fully compliant with IPC-Class-2 standards and verified by 100% electrical testing. With precise fabrication, controlled impedance, and reliable environmental durability, this RT/duroid 6006 high frequency PCB ensures consistent, repeatable performance for mission-critical systems including satellite communications, radar, antennas, and aerospace electronics. It offers clear advantages in miniaturization, reliability, and electrical stability, making it an ideal solution for demanding high-frequency designs.
