Home Rogers PCB Board Rogers RO3010 High Frequency 2-Layer 10mil Printed Circuit Board PCB

Rogers RO3010 High Frequency 2-Layer 10mil Printed Circuit Board PCB

RO3010 laminates are competitively priced products with exceptional mechanical and electrical stability. This stability simplifies the design of broadband components and allows the materials to be used in a wide range of applications over a very broad range of frequencies.

  • Item NO.:

    BIC-048-v10.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

Rogers RO3010 High Frequency PCB 2-Layer Rogers 3010 10mil 0.254mm Printed Circuit Board DK10.2 DF 0.0022 Microwave PCB


Rogers RO3010 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices.

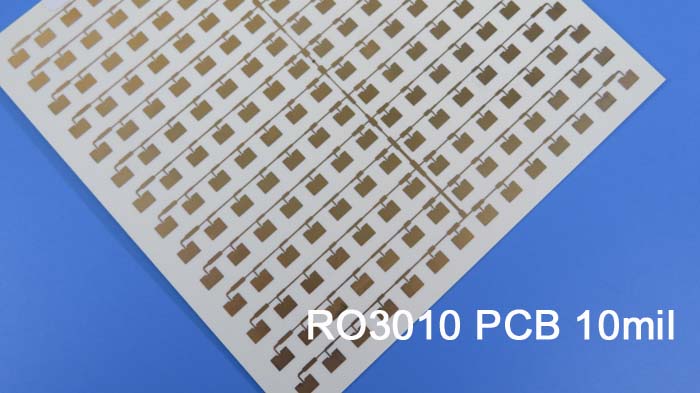

RO3010 PCB 10mil RO3010 PCB 10mil


The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3010 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.


Typical applications:



PCB Specifications:


PCB SIZE 91 x 85mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RO3010 0.254mm
copper ------- 18um(0.5 oz) + plate  BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 8 mil
Minimum / Maximum Holes: 0.4mm / 0.8mm
Number of Different Holes: n/a
Number of Drill Holes: n/a
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy:  RO3010 0.254mm
Final foil external:  1 oz
Final foil internal:  N/A
Final height of PCB:  0.3 mm ±0.1mm
PLATING AND COATING
Surface Finish Immersion Gold
Solder Mask Apply To:  Bottom, 12micron Minimum
Solder Mask Color:  Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Bottom
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo:  Marked on the board in a conductor and leged FREE AREA
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:   0.0059"
Board plating: 0.0029"
Drill tolerance:  0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Data Sheet of Rogers 3010 (RO3010):


Property RO3010 Direction Units Condition Test Method
Dielectric Constant,εProcess 10.2±0.05 Z 10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 11.2 Z 8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0022 Z 10 GHz/23℃ IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -395 Z ppm/℃ 10 GHz -50℃to 150℃ IPC-TM-650 2.5.5.5
Dimensional Stability 0.35
0.31
X
Y
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 105 MΩ.cm COND A IPC 2.5.17.1
Surface Resistivity 105 COND A IPC 2.5.17.1
Tensile Modulus 1902
1934
X
Y
MPa 23℃ ASTM D 638
Moisture Absorption 0.05 % D48/50 IPC-TM-650 2.6.2.1
Specific Heat 0.8 j/g/k Calculated
Thermal Conductivity 0.95 W/M/K 50℃ ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288℃)
13
11
16
X
Y
Z
ppm/℃ 23℃/50% RH IPC-TM-650 2.4.4.1
Td 500 ℃TGA ASTM D 3850
Density 2.8 gm/cm3 23℃ ASTM D 792
Copper Peel Stength 9.4 Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0 UL 94
Lead-free Process Compatible Yes
