The AD300D PCB 30mil provides the reliability, performance, and efficiency required to meet the demands of today's advanced electronics.
Item NO.:
BIC-243-v266.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

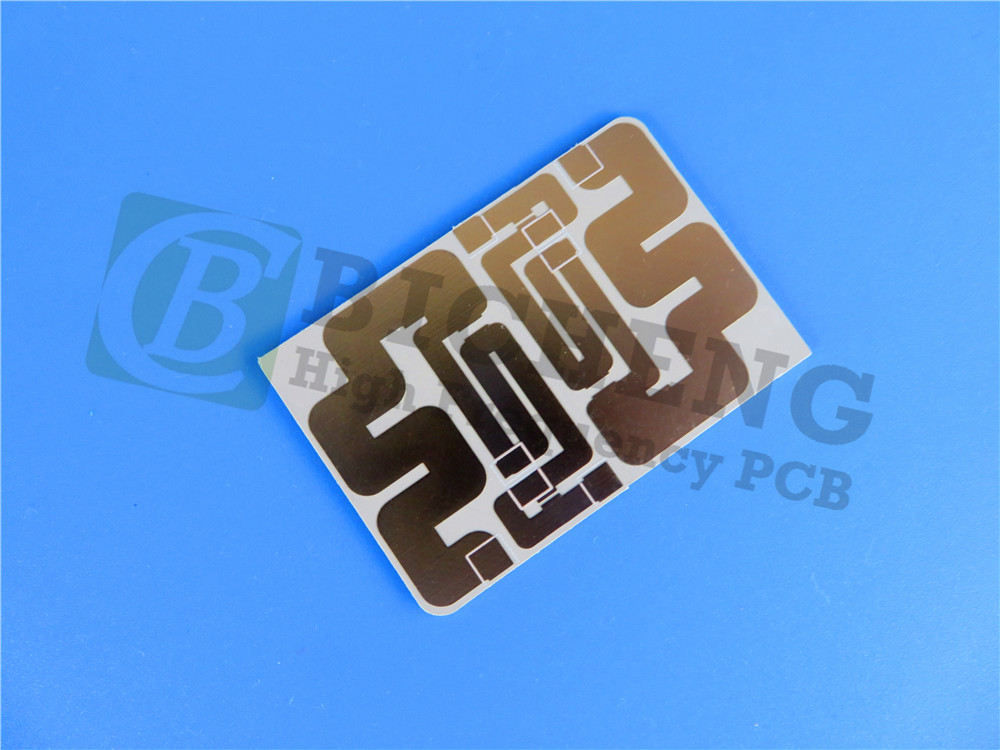

AD300D PCB 30mil 2-layer Rogers High Frequency Laminate Printed Circuit Board
Introduction:
The AD300D PCB 30mil is a cutting-edge circuit board built with Rogers AD300D high-frequency laminates. These laminates are ceramic-filled, glass-reinforced PTFE (polytetrafluoroethylene) based materials that offer exceptional electrical and mechanical properties. With a low and controlled dielectric constant, low loss performance, and excellent passive intermodulation (PIM) response, the AD300D PCB is the ideal choice for a wide range of high-frequency applications.
Features:
The AD300D PCB 30mil boasts several remarkable features that set it apart from otherRogerscircuit boards in the market:
1.1 Well-controlled dielectric constant:
The AD300D PCB 30mil exhibits a dielectric constant of 2.94 -/-0.05 at 10 GHz/23°C. This ensures consistent signal propagation and minimizes signal loss.
1.2 Low loss tangent:
With a loss tangent of 0.0021 at 10 GHz and 23°C at 50% relative humidity, the AD300D PCB 30mil guarantees minimal energy loss, resulting in improved signal integrity.
1.3 High decomposition temperature:
The AD300D PCB 30mil has a decomposition temperature (Td) exceeding 500°C, making it highly resistant to thermal stresses and ensuring reliable performance even in demanding environments.
1.4 Low moisture absorption:
With a moisture absorption rate of only 0.04%, the AD300D PCB 30mil remains stable and maintains its electrical and mechanical properties, even in humid conditions.
1.5 Controlled thermal expansion:
The AD300D PCB 30mil exhibits a low coefficient of thermal expansion (CTE) in the X-axis (24 ppm/°C), Y-axis (23 ppm/°C), and Z-axis (98 ppm/°C). This controlled expansion minimizes the risk of mechanical stress and enhances the reliability of the board.
1.6 Low passive intermodulation (PIM):
The AD300D PCB 30mil boasts a remarkable PIM performance of -159dBC at 30mils, ensuring clean and interference-free signal transmission.
1.7 Excellent thermal conductivity:
With a thermal conductivity of 0.37 W/m-K at 100°C, the AD300D PCB 30mil efficiently dissipates heat, enabling reliable operation in high-power applications.
Benefits:
The AD300D high frequency PCB offers numerous benefits for various electronic applications:
2.1 Wide range of application use:The AD300D PCB 30mil is suitable for diverse applications such as cellular infrastructure base station antennas, automotive telematics antenna systems, and commercial satellite radio antennas.
2.2 Improved power handling: With its low loss tangent and high thermal conductivity, the AD300D PCB 30mil enables efficient power handling, contributing to enhanced performance and reliability.
2.3 Low loss, higher antenna efficiency: The AD300D PCB’s exceptional electrical properties translate into reduced signal loss and improved antenna efficiency, ensuring optimal signal reception and transmission.
2.4 Maintains mechanical form during handling: Thanks to its robust construction and controlled CTE, the AD300D PCB retains its mechanical integrity during handling and assembly processes, reducing the risk of damage.
AD300DPCB Stackup
The AD300D PCB 30mil follows a 2-layer rigid PCB stackup with the following specifications:
Copper_layer_1: 35 μm
AD300D: 0.762 mm (30mil)
Copper_layer_2: 35 μm
AD300D PCB Construction Details:
Details |
Specifications |
Board dimensions |
53.18mm x 56.04 mm=1PCS, +/- 0.15mm |
Minimum Trace/Space |
5/5 mils |
Minimum Hole Size |
0.25mm |
Blind vias |
No |
Finished board thickness |
0.8mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Silver |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical test |
100% prior to shipment |
AD300D PCB Statistics:
Statistics |
Quantity |
Components |
16 |
Total Pads |
33 |
Thru Hole Pads |
21 |
Top SMT Pads |
12 |
Bottom SMT Pads |
0 |
Vias |
31 |
Nets |
2 |
Artwork and Standards:
The Rogers AD300D 30mil PCB accepts Gerber RS-274-X artwork, a widely used industry standard for PCB fabrication. It adheres to the IPC-Class-2 standard, ensuring consistent quality and reliability.
Availability:
The AD300D PCB is available worldwide, making it accessibleto customers across the globe. Whether you are located in North America, Europe, Asia, or any other region, you can easily access and benefit from the exceptional performance of the AD300D PCB 30mil.
Typical Applications:
The AD300D 2-layer PCB 30mil finds its utility in various high-frequency applications, including:
Cellular infrastructure base station antenna: The AD300D PCB enables the development of high-performance antennas for cellular base stations, ensuring reliable and efficient wireless communication.
Automotive telematics antenna systems: With its excellent electrical properties and mechanical stability, the AD300D PCB is an ideal choice for automotive telematics antenna systems, providing reliable connectivity and communication in vehicles.
Commercial satellite radio antenna:The AD300D PCB facilitates the construction of satellite radio antennas, delivering clear and uninterrupted reception for commercial applications.
Conclusion:
The Rogers AD300D laminate PCB stands as a superior choice for high-frequency circuitry and advanced electronic applications. With its ceramic-filled, glass-reinforced PTFE-based material, it offers exceptional electrical performance, low loss, and controlled dielectric constants. The PCB's ability to handle high power, maintain mechanical form, and provide reliable signal transmission makes it an ideal solution for a wide range of applications.
Whether you are designing cellular infrastructure base station antennas, automotive telematics systems, or commercial satellite radio antennas, the Rogers AD300D high frequency laminate PCB 30mil provides the reliability, performance, and efficiency required to meet the demands of today's advanced electronics. With worldwide availability and adherence to industry standards, this PCB ensures that your designs are built on a solid foundation of quality and excellence. Unlock the full potential of your high-frequency applications with the AD300D PCB.
