Home Newly Shipped RF PCB F4BM220 PCB 60mil High Frequency Printed Circuit Board

F4BM220 PCB 60mil High Frequency Printed Circuit Board

F4BM220 PCB 60mil provides a reliable foundation for cutting-edge electronic designs, making it the perfect choice for a wide range of applications.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

F4BM220 PCB 60mil High Frequency Printed Circuit Board



The F4BM220 PCB, part of the remarkable F4BM series laminates, represents a groundbreaking advancement in printed circuit board technology. Meticulously crafted using a precise combination of glass fiber cloth, polytetrafluoroethylene resin, and polytetrafluoroethylene film, the F4BM220 outshines its counterparts with its exceptional electrical performance, wider range of dielectric constant, low dielectric loss, enhanced insulation resistance, and remarkable stability. This cutting-edge PCB can seamlessly replace similar foreign products, offering unparalleled quality and reliability.



The F4BM220 PCB boasts an array of impressive features that distinguish it as a standout choice for various applications. With a dielectric constant of 2.2 and a tight tolerance of 0.04 at 10 GHz/23°C, this PCB delivers consistent and precise performance. Its remarkably low loss tangent of 0.001 at 10GHz ensures minimal signal degradation, resulting in optimal signal integrity and transmission efficiency.


Moreover, the F4BM220 PCB exhibits a temperature coefficient of dielectric constant (TCDk) of -142 ppm/°C, ensuring stability even under fluctuating environmental conditions. Its moisture absorption rate of 0.08% guarantees long-term reliability, making it ideal for demanding applications.


Beneficial Advantages :

By choosing the F4BM220 60mil laminate PCB, users unlock a host of advantages that contribute to their project's success. The low loss tangent of this PCB enables high-frequency applications to achieve superior performance, ensuring minimal signal attenuation and distortion. Additionally, the F4BM220 PCB offers diversified sizes, allowing for flexibility and cost savings in both prototyping and large-scale production.


Another notable advantage is the PCB's exceptional irradiation resistance and low exhaust properties. These features make it suitable for applications in challenging environments, such as aerospace, satellite communication, and radar systems. Furthermore, the F4BM220 PCB's commercialization readiness, mass production capabilities, and high cost performance provide an economical solution without compromising on quality or reliability.

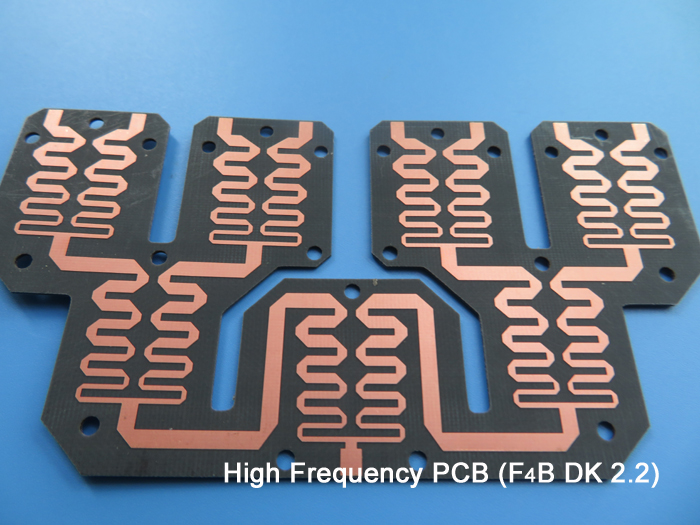

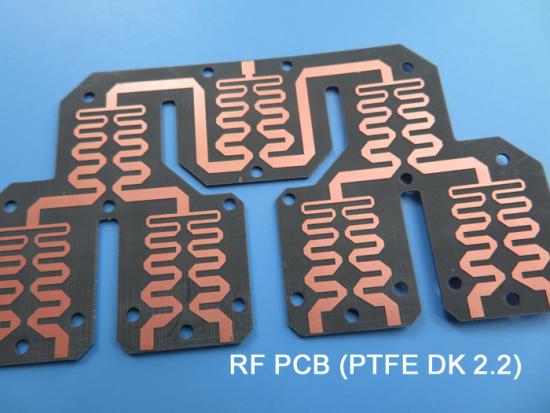

 F4B DK2.2 PCB


PCB Construction:

The F4BM220 PCB include a 2-layer rigid design with copper layers of 35 μm thickness on both sides. The F4BM220 laminate has a thickness of 1.524 mm (60mil), making it suitable for various applications.


Construction Details


Board dimensions

392mm x 256mm (+/- 0.15mm)

Minimum Trace/Space

7/6 mils

Minimum Hole Size


Blind vias


Finished board thickness


Finished Cu weight

2oz (2.8 mils) outer layers

Via plating thickness

20 μm

Surface finish

Immersion gold

Top Silkscreen


Bottom Silkscreen


Top Solder Mask


Bottom Solder Mask


Electrical test

100% Electrical test used prior to shipment




PCB Statistics and Standards:


PCB Statistics




Total Pads


Thru Hole Pads


Top SMT Pads


Bottom SMT Pads









The artwork for the F4BM220 PTFE PCB is supplied in Gerber RS-274-X format, ensuring compatibility with standard PCB design tools. It adheres to the widely accepted IPC-Class-2 standard, guaranteeing high-quality manufacturing processes and reliable performance.


Availability and Typical Applications:

The F4BM220 high frequency PCB is readily available worldwide, ensuring easy accessibility for customers across the globe. Its exceptional performance and stability make it an ideal choice for various applications. Some typical applications of the F4BM220 PCB include:


1.Microwave and RF systems

2.Radar technolog

3.Phase shifters

4.Passive components

5.Power dividers

6.Couplers and combiners

7.Feed networks

8.Phased array antennas

9.Satellite communications

10.Base station antennas.


In conclusion, the F4BM220 60mil PCB revolutionizes the printed circuit board landscape with its outstanding electrical performance, stability, and cost-effectiveness. By harnessing the power of advanced materials and precise manufacturing processes, this PCB provides a reliable foundation for cutting-edge electronic designs, making it the perfect choice for a wide range of applications.
