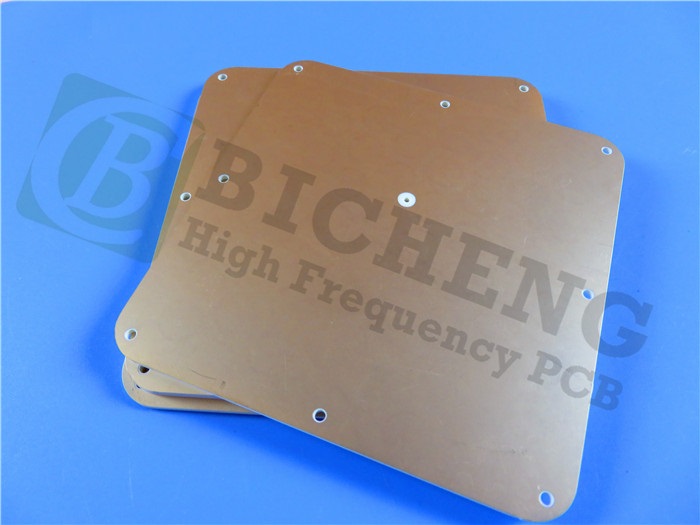

RO3010 PCB 0.254mm 2-layer 10mil Rogers 3010 High frequency Laminate with Immersion Silver

RO3010 PCB 0.254mm 2-layer 10mil Rogers 3010 High frequency Laminate with Immersion Silver

Introduction

Introducing the RO3010 PCB 10mil, a cutting-edge addition to our lineup of advanced circuit materials. Engineered with ceramic-filled PTFE composites, this high-performance laminate offers a superior dielectric constant with exceptional stability, making it the ideal choice for a wide range of applications across various frequencies. The Rogers RO3010 PCB is designed to simplify circuit miniaturization and offers unmatched mechanical and electrical stability, ensuring optimal performance even in demanding environments.

Features

The RO3010 PCB boasts several notable features that set it apart from other circuit materials:

2.1 High Dielectric Constant:

With a dielectric constant of 10.2+/- .30 at 10 GHz/23°C, theRO3010 PCB provides excellent signal integrity and transmission characteristics, enabling efficient data transfer and reliable performance.

2.2 Low Dissipation Factor:

At a dissipation factor of 0.0022 at 10 GHz/23°C, this PCB exhibits minimal signal loss, allowing for high-fidelity data transmission and reducing the risk of power loss or signal degradation.

2.3 Thermal Stability:

The RO3010 PCB offers impressive thermal stability with a low coefficient of thermal expansion (-55 to 288°C) of 13 ppm/°C(X), 11 ppm/°C(Y), and 16 ppm/°C(Z). This stability ensures dimensional compatibility with copper materials and prevents warping or deformation due to temperature fluctuations.

2.4 High Temperature Resistance:

With a decomposition temperature (Td) exceeding 500°C, theRO3010 PCB can withstand high-temperature environments without compromising its performance, providing reliability and longevity in demanding applications.

2.5 Thermal Conductivity:

Featuring a thermal conductivity of 0.95 W/mK, this PCB efficiently dissipates heat generated during operation, reducing the risk of overheating and ensuring reliable performance under challenging thermal conditions.

2.6 Moisture Resistance:

TheRO3010 PCB exhibits minimal moisture absorption of only 0.05%, making it highly resistant to environmental factors such as humidity. This characteristic enhances the long-term reliability of the PCB, particularly in applications exposed to varying levels of moisture.

2.7 Operating Temperature Range:

The RO3010 PCB is designed to operate within a wide temperature range, from -40°C to +85°C, ensuring flexibility and compatibility in various environments.

Benefits

Choosing the Rogers 3010 PCB offers numerous advantages for your circuit design and manufacturing processes:

3.1 Dimensional Stability:

The RO3010 PCB possesses a matched expansion coefficient with copper, ensuring dimensional stability and preventing issues such as warping or delamination. This characteristic simplifies the manufacturing process and enhances the long-term reliability of your circuits.

3.2 Cost-Effective Manufacturing:

Our PCB laminate pricing for volume manufacturing processes is highly competitive, making theRO3010 PCB not just a high-performance option but also an economically viable choice for large-scale production.

3.3 Versatile in Design:

The RO3010 PCB is suitable for use with multi-layer board designs, providing designers with the flexibility to create complex circuits and incorporate various functional components effectively.

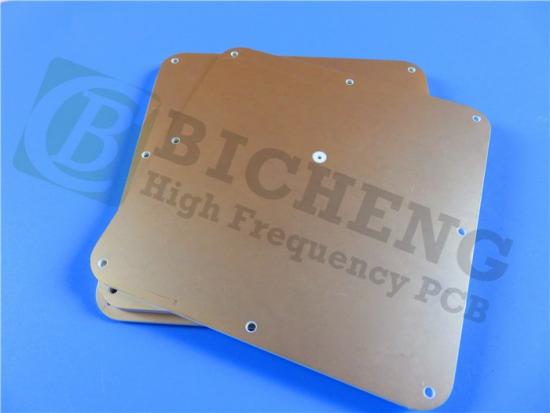

PCB Stackup and Construction Details

The 2-Layer 10mil RO3010 PCB constructed with the following specifications:

Copper Layer 1: 35μm

Rogers RO3010 Substrate: 10mil (0.254mm)

Copper Layer 2: 35μm

Additional construction details include:

PCB Statistics

To give you a better understanding of the RO3010 2-Layer 10mil Circuit PCB capabilities, here are some key statistics:

Artwork and Standards

For your convenience, the RO3010 High Frequency PCB is supplied with Gerber RS-274-X artwork, ensuring compatibility with standard fabrication processes and simplifying manufacturing.

The PCB complies with the widely accepted IPC-Class-2 standards, ensuring consistent quality and performance.

Availability

The RO3010 PCB is available worldwide, allowing customers from various regions to benefit from its exceptional performance, stability, and versatility.

Typical Applications

TheRO3010 10mil Rogers substrate PCB finds applications across a wide range of industries and technologies, including:

Automotive Radar Applications

Global Positioning Satellite Antennas

Cellular Telecommunications Systems

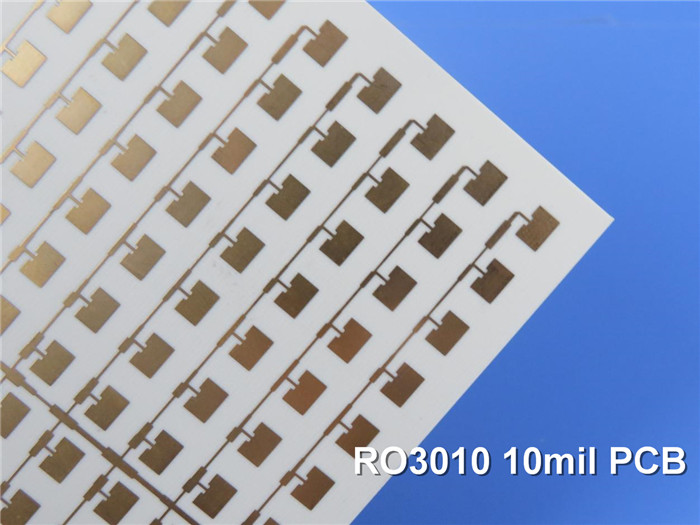

Patch Antenna for Wireless Communications

Direct Broadcast Satellites

Datalink on Cable Systems

Remote Meter Readers

Power Backplanes

Conclusion

When it comes to advanced circuit materials, the RO3010 10mil Rogers PCB material stands out as a reliable and high-performance choice. With its exceptional stability, impressive thermal properties, and versatile design compatibility, this high frequency laminate PCB board offers a wide range of applications and benefits. Manufactured to the highest industry standards and available worldwide, theRO3010 PCB is the ideal solution for achieving optimal circuit performance and reliability in your next.
