The Rogers RO4003C PCB offers unparalleled performance for applications requiring higher operating frequencies.
Item NO.:
BIC-233-v256.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

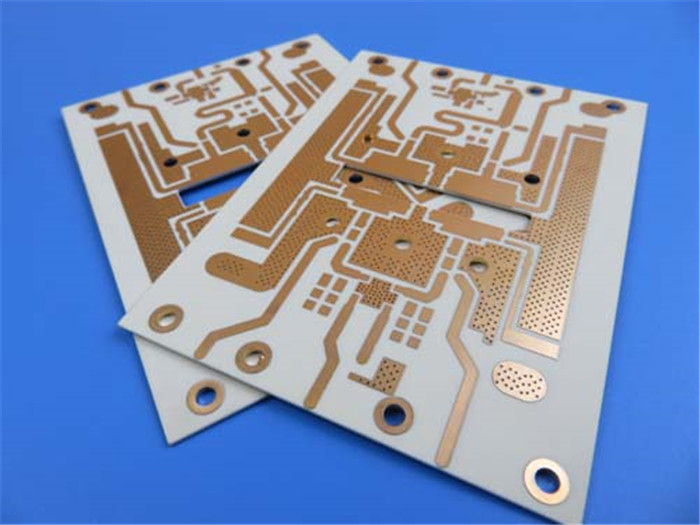

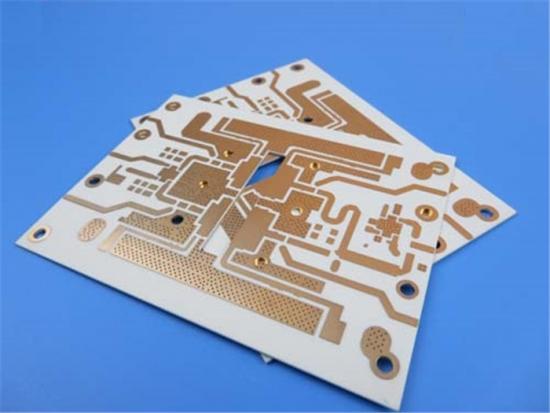

RO4003C PCB 32mil 2-layer Rogers 4003C High Frequency Material
We are proud to presentour newly shipped PCB - RO4003C 32mil laminate PCB, a cutting-edge solution that provides outstanding performance and versatility in various industries. With its exceptional electrical properties and stable characteristics, the RO4003C PCB offers unparalleled performance for applications requiring higher operating frequencies. Read on to explore the features and benefits of this remarkable PCB.
PCB Substrates:
The RO4003C high frequency PCB is constructed using Rogers RO4003C woven glass reinforced hydrocarbon/ceramics, which ensures exceptional reliability and durability. With a Dielectric Constant (DK) of 3.38 +/- 0.05 at 10GHz and a Dissipation Factor of 0.0027 at 10GHz, this PCB offers low dielectric tolerance and low loss, making it ideal for broadband applications. Additionally, its Thermal Conductivity of 0.71 W/m/°K ensures efficient heat dissipation and guarantees optimal performance even in challenging environments.
Features and Benefits:
1. Excellent Electrical Performance:
The RO4003C 32mil substrate PCB enables applications with higher operating frequencies, thanks to its stable electrical properties across a wide frequency range. This feature is crucial for controlled impedance transmission lines and the repeatable design of filters, ensuring reliable signal integrity.
2. Dimensional Stability and Reliability:
With low Z-axis expansion and a low in-plane expansion coefficient, the Rogers 4003C PCB maintains stability throughout various circuit processing temperatures. This factor contributes to the PCB's excellent dimensional stability and reliable plated through holes, enhancing overall performance and durability.
3. Versatile Manufacturing Process:
The volume manufacturing process of RO4003C 0.813 mm laminates allows for seamless fabrication using standard glass epoxy processes. This advantage not only ensures manufacturing efficiency but also makes the PCB competitively priced, offering cost-effective solutions without compromising quality.
4. CAF Resistance:
The RO4003C circuit board is highly resistant to Conductive Anodic Filament (CAF) formation, guaranteeing long-term reliability and reducing the risk of electrical failures.
Construction Details:
Construction Details |
Specifications |
Board dimensions |
161.5mm x 163mm (2 Types = 2PCS) |
Dimension Tolerance |
+/- 0.15mm |
Minimum Trace/Space |
4/5 mils |
Minimum Hole Size |
0.5mm |
Blind vias |
No |
Finished board thickness |
0.9mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Gold |
Top Silkscreen |
White |
Bottom Silkscreen |
No |
Top Solder Mask |
Green |
Bottom Solder Mask |
No |
Via Filling and Capping |
0.5mm |
Electrical test |
100% prior to shipment |
PCB Statics:
PCB Statistics |
Quantity |
Components |
47 |
Total Pads |
173 |
Thru Hole Pads |
92 |
Top SMT Pads |
81 |
Bottom SMT Pads |
0 |
Vias |
151 |
Nets |
5 |
RO4003C PCB Typical Values:
RO4003C Typical Value |
|||||
Property |
RO4003C |
Direction |
Units |
Condition |
Test Method |
Dielectric Constant,εProcess |
3.38±0.05 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 Clamped Stripline |
Dielectric Constant,εDesign |
3.55 |
Z |
|
8 to 40 GHz |
Differential Phase Length Method |
Dissipation Factortan,δ |
0.0027 |
Z |
|
10 GHz/23℃ |
IPC-TM-650 2.5.5.5 |
Thermal Coefficient of ε |
+40 |
Z |
ppm/℃ |
-50℃to 150℃ |
IPC-TM-650 2.5.5.5 |
Volume Resistivity |
1.7 x 1010 |
|
MΩ.cm |
COND A |
IPC-TM-650 2.5.17.1 |
Surface Resistivity |
4.2 x 109 |
|
MΩ |
COND A |
IPC-TM-650 2.5.17.1 |
Electrical Strength |
31.2(780) |
Z |
Kv/mm(v/mil) |
0.51mm(0.020") |
IPC-TM-650 2.5.6.2 |
Tensile Modulus |
19,650(2,850) |
X |
MPa(ksi) |
RT |
ASTM D 638 |
Tensile Strength |
139(20.2) |
X |
MPa(ksi) |
RT |
ASTM D 638 |
Flexural Strength |
276 |
|
MPa |
|
IPC-TM-650 2.4.4 |
Dimensional Stability |
<0.3 |
X,Y |
mm/m |
after etch+E2/150℃ |
IPC-TM-650 2.4.39A |
Coefficient of Thermal Expansion |
11 |
X |
ppm/℃ |
-55℃to288℃ |
IPC-TM-650 2.4.41 |
Tg |
>280 |
|
℃ TMA |
A |
IPC-TM-650 2.4.24.3 |
Td |
425 |
|
℃ TGA |
|
ASTM D 3850 |
Thermal Conductivity |
0.71 |
|
W/M/oK |
80℃ |
ASTM C518 |
Moisture Absorption |
0.06 |
|
% |
48hrs immersion 0.060" |
ASTM D 570 |
Density |
1.79 |
|
gm/cm3 |
23℃ |
ASTM D 792 |
Copper Peel Stength |
1.05 |
|
N/mm |
after solder float 1 oz. |
IPC-TM-650 2.4.8 |
Flammability |
N/A |
|
|
|
UL 94 |
Lead-free Process Compatible |
Yes |
|
|
|
|
Typical Applications:
The RO4003C PCB is widely applicable in various industries, including:
1. Cellular Base Station Antennas and Power Amplifiers: The PCB's high-frequency capabilities and outstanding electrical performance make it an ideal choice for these critical telecommunications components.
2. RF Identification Tags: The RO4003C PCB provides the reliability and stability required for efficient RF identification systems, ensuring seamless data transmission.
3. Automotive Radar and Sensors: With its low dielectric loss and stable electrical properties, the RO4003C PCB is perfect for automotive radar and sensor applications, where accuracy and reliability are paramount.
4. LNB's for Direct Broadcast Satellites:The PCB's high-frequency capabilities and dimensional stability make it an excellent choice for satellite communication equipment.
Conclusion:
The Rogers 4003C PCB 32mil sets new standards in high-frequency applications with its outstanding electrical performance, dimensional stability, and reliability. Its advanced features and benefits make it an ideal choice for industries requiring precision, efficiency, and durability. Whether you are working on cellular base stations, RF identification tags, automotive radar, or satellite communication systems, the Rogers RO4003C PCB is your ultimate solution.
For any technical questions or further information, please contact our dedicated sales team at sales20@bichengpcb.com. We are committed to providing exceptional customer support and ensuring the success of your projects.
