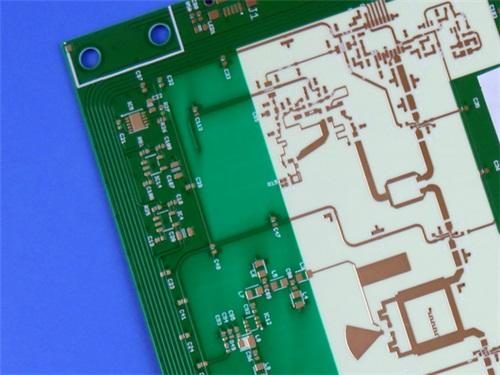

RO4533 2-layer 30 mil PCB—an engineered solution tailored for high-frequency communication applications, blending exceptional electrical performance, reliable manufacturability, and cost-effectiveness. Built on Rogers’ industry-proven RO4533 laminates, this Rogers PCB delivers low loss, stable dielectric properties, and seamless compatibility with standard fabrication processes, making it a top choice for critical infrastructure like base station antennas and WiMAX networks. Below is a comprehensive breakdown of its specifications, advantages, and applications.

PCB Construction details

The following table details the RO4533 PCB’s structural and fabrication specifications, ensuring consistent performance and adherence to industry standards.

PCB Stackup

The rigid 2-layer stackup is engineered to enhance signal integrity and thermal stability, with precise material layering as follows:

PCB Statistics

The Rogers RF PCB 30mil’s component and interconnect statistics reflect a streamlined design that balances functionality and space efficiency:

The RO4533 Advantage: A Material Engineered for Antennas

At the heart of this PCB lies Rogers RO4533, a ceramic-filled, glass-reinforced hydrocarbon thermoset laminate. It is specifically formulated as a high-performance, cost-effective alternative to traditional PTFE-based antenna materials. With a stable dielectric constant (Dk) of 3.30 @ 10 GHz and an ultra-low dissipation factor (Df) of 0.0025 @ 10 GHz, it ensures minimal signal loss and excellent passive intermodulation (PIM) response—a paramount requirement for base station antennas.

Its benefits extend beyond electrical specs:

1) Process-Friendly: Fully compatible with standard FR-4 and lead-free assembly processes, eliminating the specialized handling needed for PTFE.

2) Exceptional Stability: Features a high glass transition temperature (Tg >280°C), low Z-axis CTE (37 ppm/°C), and minimal moisture absorption (0.02%), guaranteeing outstanding plated-through-hole reliability and dimensional stability.

3) Thermal & Mechanical Performance: Good thermal conductivity (0.6 W/m/K) aids in power handling, while its X/Y CTE (13/11 ppm/°C) closely matches copper, reducing mechanical stress on the circuitry.

Quality and Compatibility Guarantee

We deliver certainty with every board. The artwork is supplied in the universal Gerber RS-274-X format. Every unit undergoes a 100% electrical test prior to shipment and is manufactured to the IPC-Class-2 standard, ensuring high reliability for dedicated service electronic products. This product is readily available worldwide, supported by our global supply chain.

Ideal Applications

This RO4533 2-layer PCB is the ideal solution for:

-Cellular Infrastructure Base Station Antennas (4G/LTE, 5G)

-WiMAX and Fixed Wireless Access Antenna Networks

-General High-Frequency, Low-Loss Microstrip Antenna Applications

Compliant with IPC-Class-2 quality standards and available for worldwide shipment, our RO4533 high frequency PCB is backed by rigorous 100% electrical testing, guaranteeing performance consistency. Whether you’re designing next-generation base stations or expanding WiMAX networks, this Rogers 4533 PCB offers the perfect balance of performance, cost, and reliability to drive your project success.
