CuClad 217 enables faster signal propagation and higher signal-to-noise ratios, making it an excellent choice for a wide range of applications.
Item NO.:
BIC-249-v314.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

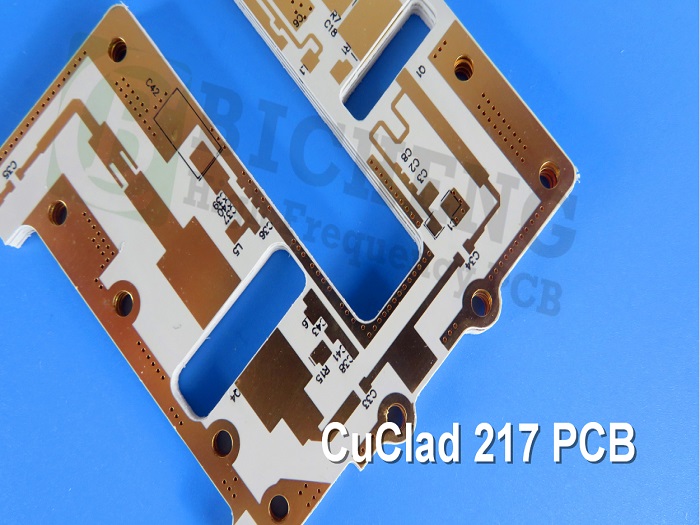

Rogers CuClad 217 PCB 10mil High Frequency Circuit Board 2-layer 0.254mm Substrate
Introduction:
CuClad 217 is a high-performance laminate designed by Rogers. It is a cross-plied, woven fiberglass and precisely controlled PTFE composite laminate that offers exceptional electrical and mechanical properties. With a low dielectric constant (Dk) and dissipation factor, CuClad 217 enables faster signal propagation and higher signal-to-noise ratios, making it an excellent choice for a wide range of applications.
Features:
CuClad 217 high frequency PCB boasts several impressive features that set it apart from other fiberglass reinforced PTFE laminates. Some notable features include:
1)Dielectric Constant:
CuClad 217 offers a low dielectric constant of 2.17 or 2.20 at 10GHz/1MHz. This characteristic ensures stable Dk over a wide frequency range, enabling wider line widths for lower insertion loss.
2)Dissipation Factor:
With a dissipation factor of 0.0009 at 10GHz, CuClad 217 minimizes circuit losses, particularly at high frequencies.
3)Moisture Absorption:
CuClad 217 exhibits low moisture absorption of just 0.02%, ensuring its stability and reliability in humid environments.
4)Peel Strength:
The laminate demonstrates strong peel strength, providing enhanced bonding and reliability with a peel strength of 14 lbs/in.
5)Outgassing:
CuClad 217 boasts low outgassing properties, with a Total Mass Loss (TML) of 0.01%, Collected Volatile Condensable Material (CVCM) of 0.01%, and 0 Water Vapor Regain (WVR).
6)Cross Plied Woven Fiberglass:
The laminate features a cross-plied woven fiberglass construction, with alternating plies oriented at 90 degrees to each other. This structure ensures improved dimensional stability and better dielectric constant uniformity compared to non-woven fiberglass reinforced laminates.
Benefits:
The CuClad 217 Rogers PCB material offers numerous benefits that make it an ideal choice for various applications:
1)Wide Frequency Range:
CuClad 217 maintains stable Dk over a wide frequency range, allowing for flexible design options and meeting strict specifications.
2)Low Insertion Loss:
The low Dk value of CuClad 217 supports wider line widths, resulting in lower insertion loss and improved signal integrity.
3)High-Frequency Performance:
With low circuit losses at high frequencies, CuClad 217 is well-suited for applications requiring excellent high-frequency performance.
4)Design Flexibility:
The laminate's dimensional stability enhances design flexibility during PCB fabrication, enabling the realization of complex circuit layouts.
5)Electrical and Mechanical Isotropy:
CuClad 217 exhibits electrical and mechanical isotropy in the X-Y plane, ensuring consistent performance in all directions.
6)Compatibility with Er-Sensitive Circuits:
CuClad 217 is particularly suitable for circuits sensitive to the dielectric constant (Er), offering reliable and precise performance.
PCB Construction Details
The CuClad 217 10mil Rogers substrate PCB is a double layer circuit with the following construction specifications:
PCB Specifications |
Value |
Board dimensions |
106.8mm x 51.8mm (1PCS), +/- 0.15mm |
Minimum Trace/Space |
6/5 mils |
Minimum Hole Size |
0.35mm |
Blind Vias |
No |
Finished Board Thickness |
0.3mm |
Finished Cu Weight |
1oz (1.4 mils) on outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Silver |
Top Silkscreen |
Black |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
Electrical Test |
100% Electrical Test Used Prior to Shipment |
PCB Statistics
The CuClad 217 PCB features the following statistics:
PCB Statistics |
Value |
Components |
27 |
Total Pads |
103 |
Thru-Hole Pads |
78 |
Top SMT Pads |
25 |
Bottom SMT Pads |
0 |
Vias |
15 |
Nets |
2 |
Artwork and Quality Standard
The Rogers CuClad 217 PCB utilizes the Gerber RS-274-X format for artwork. It complies with the IPC-Class-2 quality standard, ensuring high-quality manufacturing and reliable performance.
Availability
CuClad 217 10mil substrate PCBs are available worldwide, making it accessible to customers across different regions.
Typical Applications
CuClad 217 Rogers high frequency laminates PCBs find applications in various industries and technologies, including:
Radars
Electronic Countermeasures
Electronic Support Measures
Microwave Components (LNAs, filters, couplers, etc.)
Conclusion
The CuClad 217 10mil PCB offers outstanding electrical and mechanical properties, making it a top choice for high-frequency applications, where signal integrity and performance are critical. With its low dielectric constant, high reliability, and designflexibility, CuClad 217 Rogers circuit board material PCBs are well-suited for demanding applications in industries such as aerospace, telecommunications, and defense. The combination of low insertion loss, stable Dk over a wide frequency range, and excellent high-frequency performance ensures that CuClad 217 PCBs meet the strict requirements of modern electronic designs.
