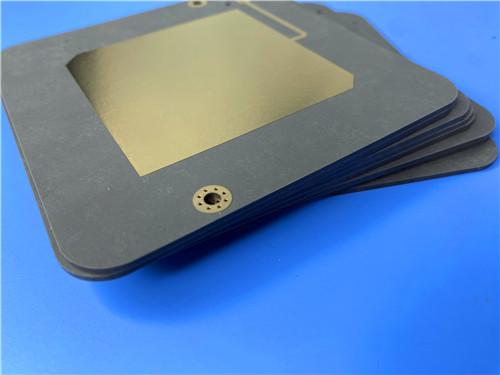

Rogers RT/duroid 5880 RO4450F 3-layer PCB 3.3mm Immersion Gold Finish Multilayer Board

Rogers RT/duroid 5880 RO4450F 3-layer PCB 3.3mm Thick Immersion Gold Finish Multilayer Board

Product Overview

Our newly shipped RT/duroid 5880 3-layer PCB is engineered for high-frequency applications requiring exceptional signal integrity, low loss, and superior dielectric stability. Designed with a 3.3mm thickness, this PCB features a 3-layer construction using RT/duroid 5880 and RO4450F bonding ply, ensuring uniform electrical performance across a wide frequency range. The immersion gold (ENIG) surface finish enhances corrosion resistance and provides a reliable surface for soldering and connectivity.

With a finished thickness of 3.3mm, immersion gold surface finish, and strict IPC-Class-2 compliance, this Rogers duroid 5880 PCB ensures reliability in high-frequency environments. The low dissipation factor (0.0009 at 10 GHz) and tight dielectric constant tolerance (±0.02) make it suitable for Ku-band and beyond.

PCB Construction Details

Below is a summary of the key construction parameters of the Rogers 5880 PCB, followed by a detailed table:

PCB Stackup: 3-Layer Rigid PCB

The stackup is optimized for high-frequency signal integrity, utilizing duroid 5880 for low loss and RO4450F bonding ply for structural stability.

PCB Statistics

Additional Specifications

• Artwork Format: Gerber RS-274-X
• Accepted Standard: IPC-Class-2
• Availability: Worldwide

RT/duroid 5880 Material Introduction

Rogers RT/duroid 5880 is a PTFE-based laminate reinforced with glass microfibers, offering exceptional dielectric constant uniformity (2.20±0.02) and ultra-low loss (Df = 0.0009 at 10 GHz). Its isotropic properties and resistance to solvents make it ideal for high-frequency stripline and microstrip circuits.

Key Features of RT/duroid 5880

✔Dielectric Constant (Dk): 2.20±0.02 (10 GHz, 23°C)

✔Dissipation Factor (Df): 0.0009 (10 GHz)

✔Temperature Coefficient of Dk (TCDk): -125 ppm/°C

✔Moisture Absorption: 0.02% (extremely low)

✔CTE (Coefficient of Thermal Expansion):

• X-axis: 31 ppm/°C
• Y-axis: 48 ppm/°C
• Z-axis: 237 ppm/°C

✔Isotropic: Uniform electrical properties in all directions

Benefits of RT/duroid 5880

✅Stable electrical performance across frequency bands

✅Easy to machine, cut, and process

✅Resistant to chemicals used in PCB etching/plating

✅Lowest loss among reinforced PTFE materials

✅Ideal for high-moisture environments

Typical Applications

• Commercial airline broadband antennas
• Microstrip & stripline circuits
• Millimeter-wave applications (Ka-band, Ku-band)
• Radar & defense systems
• Satellite communication & point-to-point radio antennas

Conclusion

This 3-layer Rogers substrate 5880 PCB is a high-performance solution for demanding RF and microwave applications. With its ultra-low loss, stable Dk, and robust construction, it is an excellent choice for engineers working on aerospace, defense, and high-speed digital designs.

For inquiries, customization options, or bulk orders, contact our sales team today!
