RT/duroid 6035HTC PCB 2-layer 10mil 0.254mm High Frequency Laminate with Immersion Silver

RT/duroid 6035HTC PCB offers exceptional thermal conductivity, high-frequency performance, and reliability.

  • Item NO.:

    BIC-296-v368.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail

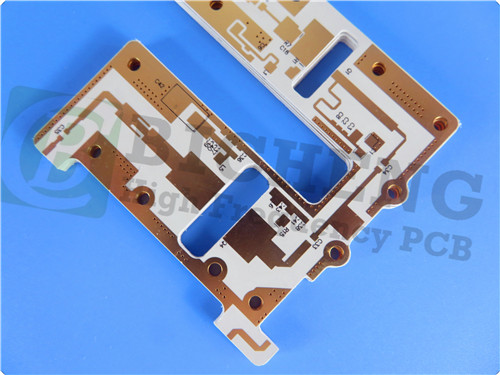

RT/duroid 6035HTC PCB 2-layer 10mil 0.254mm High Frequency Laminate with Immersion Silver



Introduction

RT/duroid 6035HTC is a high-performance circuit material designed for high power RF and microwave applications. Made with ceramic-filled PTFE composites, it offers exceptional thermal conductivity and long-term stability. With superior heat dissipation and excellent high-frequency performance, this high frequency laminate is the ideal choice for demanding high-power applications.





Features

RT/duroid 6035HTC Rogers 10mil PCB comes with an array of features that make it stand out in the world of high power circuit materials:



2.1 Dielectric constant (DK) of 3.5 +/- 0.05 at 10 GHz/23°C:

Consistent and reliable performance at high frequencies.



2.2 Dissipation factor of 0.0013 at 10 GHz/23°C:

Exceptionally low loss tangent, resulting in reduced signal loss and higher efficiency.



2.3 Thermal coefficient of dielectric constant of -66 ppm/°C:

Ensures stability over a wide temperature range, minimizing undesired frequency shifts.



2.4 Moisture absorption of 0.06%:

Low moisture absorption characteristics, contributing to excellent reliability and stability.



2.5 Thermal conductivity of 1.44 W/m/K at 80°C:

Superior heat dissipation properties, leading to lower operating temperatures in high-power applications.



2.6 Coefficient of thermal expansion (CTE):

With X-axis and Y-axis values of 19 ppm/°C and Z-axis value of 39 ppm/°C, it offers excellent dimensional stability under varying temperature conditions.


RTduroid 6035HTC PCB BICHENG



Benefits

Rogers 6035HTC provides a range of benefits that are crucial for high-power RF and microwave applications:



3.1 High Thermal Conductivity:

With a thermal conductivity of 1.44 W/m/K, this laminate offers superior heat dissipation capabilities, allowing for lower operating temperatures and improved overall performance.



3.2 Excellent High-Frequency Performance:

The low dielectric loss tangent and stable dielectric constant enable reduced insertion loss and superior signal integrity, making it suitable for high-frequency applications.



3.3 Enhanced Reliability and Stability:

The advanced filler system and exceptional drilling properties of RT/duroid 6035HTC ensure reliable interconnection and reduce drilling costs, while the material's excellent dimensional stability maintains signal integrity.



3.4 Lowered Power Consumption:

By reducing heat build-up, this laminate helps optimize power consumption and energy efficiency in high-power circuits.





PCB Stackup: 2-layer rigid PCB

The PCB stackup for RT/duroid 6035HTC consists of:

Copper Layer 1: 35μm

RT/duroid 6035HTC: 0.254 mm (10 mil)

Copper Layer 2: 35μm





PCB Construction Details

To ensure the best performance and reliability, the RT/duroid 6035HTC 2-Layer 10mil Circuit Board PCB is built with the following specifications:



Aspect

Details

Board Dimensions

54mm x 76 mm = 1PCS, ±0.15mm

Minimum Trace/Space

4/4 mils

Minimum Hole Size

0.2mm

Blind Vias

None

Finished Board Thickness

0.3mm

Finished Cu Weight (Outer Layers)

1oz (1.4 mils)

Via Plating Thickness

20 μm

Surface Finish

Immersion Silver

Top Silkscreen

White

Bottom Silkscreen

None

Top Solder Mask

Green

Bottom Solder Mask

None

Electrical Test

100% prior to shipment





PCB Statistics

The PCB statistics for Rogers 6035 PCB are as follows:



PCB Statistic

Value

Components

11

Total Pads

40

Thru Hole Pads

23

Top SMT Pads

17

Bottom SMT Pads

0

Vias

18

Nets

2





Type of Artwork Supplied: Gerber RS-274-X

The RT Duroid6035 High Frequency PCB design is supplied in Gerber RS-274-X, the industry-standard format for PCB fabrication.



Accepted Standard: IPC-Class-2

The PCB design adheres to the international quality standard IPC-Class-2, ensuring the reliable performance and durability of the finished product.



Availability: Worldwide

Double Sided Rogers 6035 PCB are available for purchase and delivery worldwide, making them easily accessible for a variety of applications.



Some Typical Applications

RT/duroid 6035HTC excels in a wide range of high-power RF and microwave applications, including:



High Power RF and Microwave Amplifiers

Power Amplifiers

Couplers

Filters

Combiners

Power Dividers



Conclusion

In summary, RT/duroid 6035HTC high frequency PCB offers exceptional thermal conductivity, high-frequency performance, and reliability. Its superior heat dissipation properties, combined with excellent dielectric characteristics, make it a sought-after choice for high-power RF and microwave applications. With worldwide availability and adherence to international standards, RT/duroid 6035HTC PCBs provide designers with a reliable solution for demanding high-power circuit requirements.
