TMM 3 laminates combine many of the benefits of both ceramic and traditional PTFE microwave circuit laminates without requiring the specialized production techniques common to those materials.
Item NO.:
BIC-156-v124.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaColor:
WhiteShipping Port:
ShenzhenLead Time:

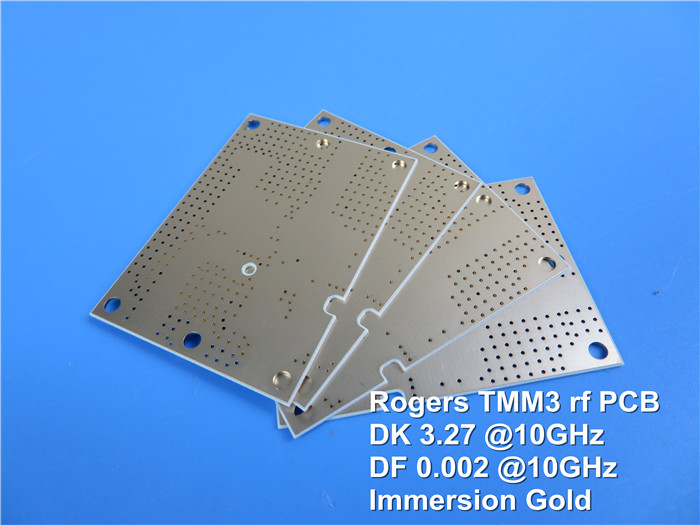

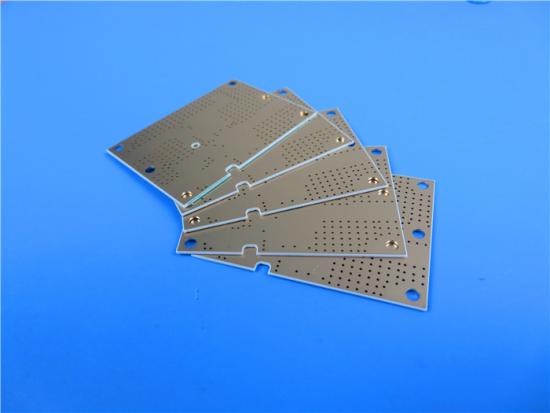

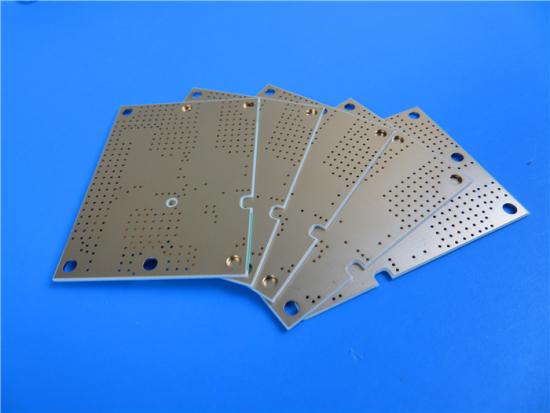

7-10 daysTMM3 High Frequency Printed Circuit Board 20mil 0.508mm Microwave PCB DK3.27 With Immersion Gold.
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
General Description:
This is a type of double layer high frequency PCB which is built on 20mil TMM3 substrate. It’s with immersion gold, 1oz copper(finished). Green solder mask is printed on top layer and bottom layer is open to air. This mini PCB is manufactured as per IPC class 3, every 50 boards are packed for shipment. It’s for the application of patch antennas.
PCB Specifications:
PCB SIZE | 35 x 51mm=1up |
BOARD TYPE | Double sided PCB |
Number of Layers | 2 layers |
Surface Mount Components | YES |
Through Hole Components | NO |
LAYER STACKUP | copper ------- 17um(0.5 oz)+plate TOP layer |
TMM3 0.508mm | |
copper ------- 17um(0.5 oz) + plate BOT Layer | |
TECHNOLOGY | |
Minimum Trace and Space: | 5 mil / 5 mil |
Minimum / Maximum Holes: | 0.40 mm / 2.50 mm |
Number of Different Holes: | 3 |
Number of Drill Holes: | 3 |
Number of Milled Slots: | 0 |
Number of Internal Cutouts: | no |
Impedance Control: | no |
Number of Gold finger: | 0 |
BOARD MATERIAL | |
Glass Epoxy: | TMM3 0.508mm |
Final foil external: | 1.0 oz |
Final foil internal: | N/A |
Final height of PCB: | 0.68 mm ±0.1 |
PLATING AND COATING | |
Surface Finish | Immersion gold, 99% |
Solder Mask Apply To: | Top Layer |
Solder Mask Color: | Green |
Solder Mask Type: | N/A |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | N/A |
Colour of Component Legend | N/A |
Manufacturer Name or Logo: | N/A |
VIA | Plated through hole(PTH), minimum size 0.40mm. |
FLAMIBILITY RATING | 94V-0 |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" |
Board plating: | 0.0029" |
Drill tolerance: | 0.002" |
TEST | 100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
Typical Applications:
1. Chip testers
2. Dielectric polarizers and lenses
3. Filters and coupler
4. Global Positioning Systems Antennas
5. Patch Antennas
6. Power amplifiers and combiners
7. RF and microwave circuitry
8. Satellite communication systems
Our PCB Capability(TMM3):
PCB Capability (TMM3) | |
PCB Material: | Ceramic, Hydrocarbon, Thermoset Polymer Composites |
Designation: | TMM3 |
Dielectric constant: | 3.27 |
Layer count: | Double Layer, Multilayer, Hybrid PCB |
Copper weight: | 0.5oz (17 µm), 1oz (35µm), 2oz (70µm) |
PCB thickness: | 15mil (0.381mm), 20mil (0.508mm), 25mil (0.635mm), 30mil(0.762mm), 50mil (1.27mm), 60mil (1.524mm), 75mil(1.905mm), 100mil (2.54mm), 125mil (3.175mm), 150mil (3.81mm), 200mil (5.08mm), 250mil (6.35mm), 275mil (6.985mm), 300mil (7.62mm), 500mil (12.7mm) |
PCB size: | ≤400mm X 500mm |
Solder mask: | Green, Black, Blue, Yellow, Red etc. |
Surface finish: | Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion silver, Pure gold plated etc.. |
Data Sheet of TMM3:
TMM3 Typical Value | ||||||
Property | TMM3 | Direction | Units | Condition | Test Method | |
Dielectric Constant,εProcess | 3.27±0.032 | Z | 10 GHz | IPC-TM-650 2.5.5.5 | ||
Dielectric Constant,εDesign | 3.45 | - | - | 8GHz to 40 GHz | Differential Phase Length Method | |
Dissipation Factor (process) | 0.002 | Z | - | 10 GHz | IPC-TM-650 2.5.5.5 | |
Thermal Coefficient of dielectric constant | +37 | - | ppm/°K | -55℃-125℃ | IPC-TM-650 2.5.5.5 | |
Insulation Resistance | >2000 | - | Gohm | C/96/60/95 | ASTM D257 | |
Volume Resistivity | 2 x 109 | - | Mohm.cm | - | ASTM D257 | |
Surface Resistivity | >9x 10^9 | - | Mohm | - | ASTM D257 | |
Electrical Strength(dielectric strength) | 441 | Z | V/mil | - | IPC-TM-650 method 2.5.6.2 | |
Thermal Properties | ||||||
Decompositioin Temperature(Td) | 425 | 425 | ℃TGA | - | ASTM D3850 | |
Coefficient of Thermal Expansion - x | 15 | X | ppm/K | 0 to 140℃ | ASTM E 831 IPC-TM-650, 2.4.41 | |
Coefficient of Thermal Expansion - Y | 15 | Y | ppm/K | 0 to 140℃ | ASTM E 831 IPC-TM-650, 2.4.41 | |
Coefficient of Thermal Expansion - Z | 23 | Z | ppm/K | 0 to 140℃ | ASTM E 831 IPC-TM-650, 2.4.41 | |
Thermal Conductivity | 0.7 | Z | W/m/K | 80℃ | ASTM C518 | |
Mechanical Properties | ||||||
Copper Peel Strength after Thermal Stress | 5.7 (1.0) | X,Y | lb/inch (N/mm) | after solder float 1 oz. EDC | IPC-TM-650 Method 2.4.8 | |
Flexural Strength (MD/CMD) | 16.53 | X,Y | kpsi | A | ASTM D790 | |
Flexural Modulus (MD/CMD) | 1.72 | X,Y | Mpsi | A | ASTM D790 | |
Physical Properties | ||||||
Moisture Absorption (2X2) | 1.27mm (0.050") | 0.06 | - | % | D/24/23 | ASTM D570 |
3.18mm (0.125") | 0.12 | |||||
Specific Gravity | 1.78 | - | - | A | ASTM D792 | |
Specific Heat Capacity | 0.87 | - | J/g/K | A | Calculated | |
Lead-Free Process Compatible | YES | - | - | - | - |
