1.27mm 50mil RT/duroid 6010.2LM high-frequency PCB for RF Microwave Board

The 50mil RT/duroid 6010.2LM high-frequency PCB offers exceptional electrical performance, improved mechanical stability, and precise impedance control for high-frequency applications.

  • Item NO.:

  • Order(MOQ):

  • Payment:

  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

  • Shipping Port:

  • Lead Time:

    7-10 days
  • Product Detail

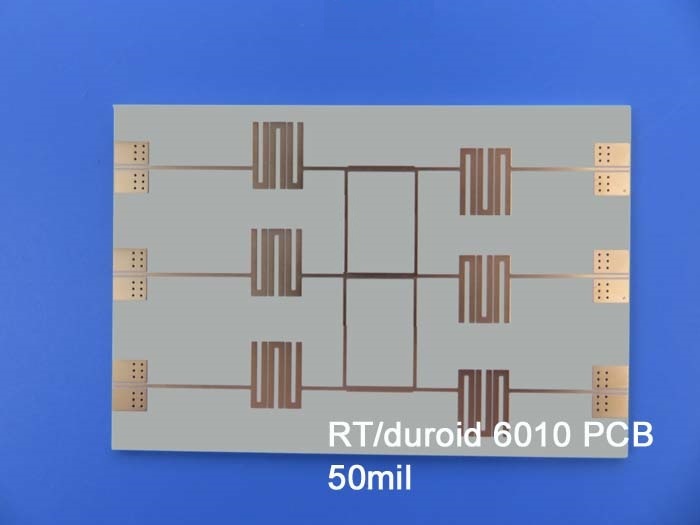

1.27mm50mil RT/duroid 6010.2LM high-frequency PCB for RF Microwave Board


PCB Material:

RT/duroid 6010.2LM ceramic PTFE composites: The use of this advanced material ensures excellent electrical performance and stability.

Lead-free process: Complying with environmental regulations, RT/duroid 6010.2LM PCB is manufactured using a lead-free process.

-40℃ to +85℃ operation: Designed to withstand extreme temperature conditions, this RT/duroid 6010.2LM PCB guarantees reliable functionality in various environments.

50mil RT/duroid 6010LM PCB


RT/duroid 6010.2LM Construction details:

Construction Details Specifications
Board dimensions 94mm x 90mm (1PCS), +/- 0.15mm
Minimum Trace/Space 9/10 mils
Minimum Hole Size 0.5mm
Blind or Buried Vias No
Finished board thickness 1.4mm
Finished Cu weight 1 oz (1.4 mils) all layers
Via plating thickness 1 mil
Surface finish Immersion Gold
Top Silkscreen White
Bottom Silkscreen No
Top Solder Mask Blue
Bottom Solder Mask Blue
Silkscreen on Solder Pads No
Electrical Test 100%
Via Filled by Resin and Capped (IPC-4761 Type VII) 0.5mm


50mil Thickness: The PCB features a dielectric layer thickness of 50 mil (1.27mm). The increased RT/duroid 6010.2LM thickness provides enhanced mechanical stability, which is crucial for high-frequency applications where dimensional stability is important to maintain signal integrity. The thicker dielectric also contributes to improved impedance control and reduced signal distortion.


RT/duroid 6010.2LM PCB Statistics:

PCB Statistics Quantity
Components 42
Total Pads 67
Thru Hole Pads 48
Top SMT Pads 19
Bottom SMT Pads 0
Vias 65
Nets 6


High-Frequency Performance: The 50mil RT/duroid 6010.2LM PCB is optimized for high-frequency operation. It exhibits low insertion loss, excellent signal transmission characteristics, and minimal signal degradation, ensuring superior performance in high-frequency circuits. The controlled dielectric constant and low loss tangent of the material minimize signal attenuation and maintain signal quality at high frequencies.


Impedance Control: Impedance control is critical in high-frequency PCB designs to ensure consistent signal integrity. The 50mil RT/duroid 6010.2LM PCB provides excellent impedance control capabilities, allowing for precise matching of transmission lines and impedance-controlled routing. This ensures minimal signal reflections and optimal signal integrity throughout the circuit.


RF and Microwave Applications: The 50mil RT/duroid 6010.2LM material is commonly used in RF (Radio Frequency) and microwave applications, such as wireless communication systems, radar systems, satellite communications, high-speed digital communications, and aerospace applications. Its superior electrical properties and high-frequency performance make it well-suited for these demanding applications.


Type of Artwork Supplied: We provide Gerber RS-274-X artwork, ensuring compatibility with industry-standard design tools and manufacturing processes.


Accepted Standard: Our PCB adheres to the IPC-Class-2 standard, guaranteeing high-quality manufacturing and performance.


Service Area: We proudly serve customers worldwide, ensuring prompt and reliable delivery to any location.
